HUBBELL WIRING DEVICE-KELLEMS M5100P9 Iec Pin And Sleeve Plug, Male, 100A, 120 - 208 VAC, Yellow
Item: AD7ARVModel: M5100P9Cross Ref: 4D348
7 In Stock
Ships within 2 days via
10.00% off
€1,739.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Pin and Sleeve Plug |
| Amps | 100A |
| Cap Type | No Cap, Cover |
| Color | Yellow |
| Connection Orientation | Straight |
| Cord Type | Portable |
| Current Rating | 100A |
| Exposure Conditions | Wateright |
| Face Diameter | 3.44" |
| Features | Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin |
| For Maximum Cable Diameter | 1.94" |
| For Minimum Cable Diameter | 1.065" |
| Grounding | Grounded |
| Grounding Style | IEC |
| Housing Color | Yellow |
| Housing Material | Polybutylene Terephthalate |
| Hp Rating | 10 hp |
| Ip Rating | IP67 |
| Material | Composite |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 1/0 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 3 AWG |
| Mounting Style | Cord |
| Number Of Poles | 4.0 |
| Number Of Wires | 5 |
| Overall Length | 12.63" |
| Phase | 3 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-m5100p9.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Type | Pin And Sleeve |
| Ul 94 Flammability Rating | HB |
| Voltage | 120/208V |
| Voltage Rating | 120/208V AC |
| Wattage | 20800 W |
| Wattage | 20800 |
| Wire Connection Type | Screw Terminals |
| Wire Size | #3 AWG to #1/0 AWG |
Shipping Info:
| Ship weight (kg) | 1.87 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 32.08 |
| Ship width (cm) | 15.75 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Number Of Poles | Number Of Wires | Voltage Rating | Housing Color | Hp Rating | Color | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

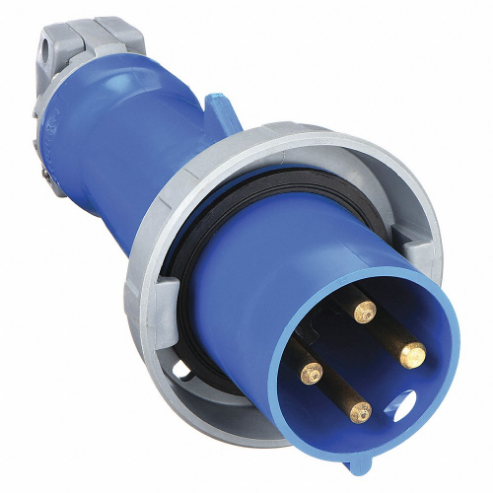

HBL460P9V05 | 3 | 3.0 | 4 | - | - | 5 hp | Blue | 60A | €814.88 | |
 |

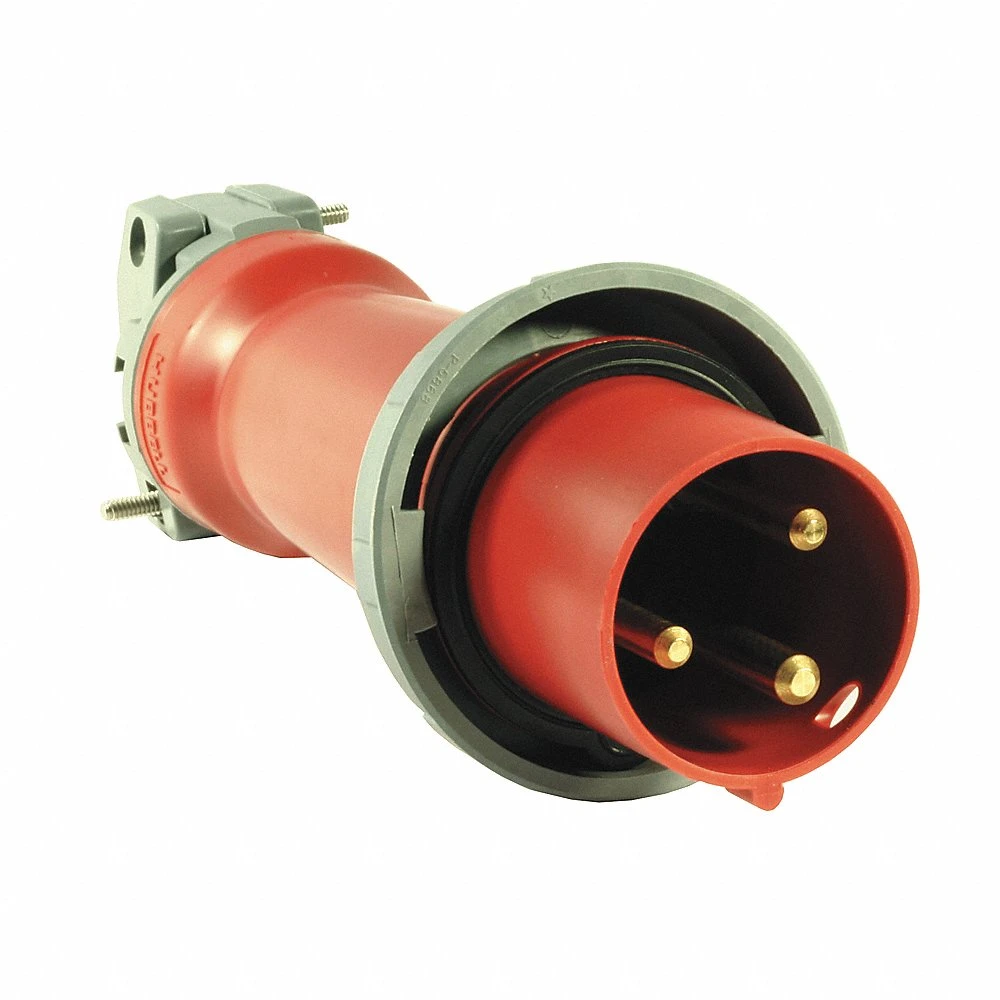

HBL3100P7W | 1 | 2.0 | 3 | 480V AC | Red | - | Red | 100A | €1,097.87 | |
 |
HBL563P6W | 3 | 4.0 | 5 | - | - | - | Red | 63A | €672.46 | |
 |
M4100P12 | 1 | 3.0 | 4 | 125/250V | Yellow | - | Yellow | 100A | €1,775.32 |
