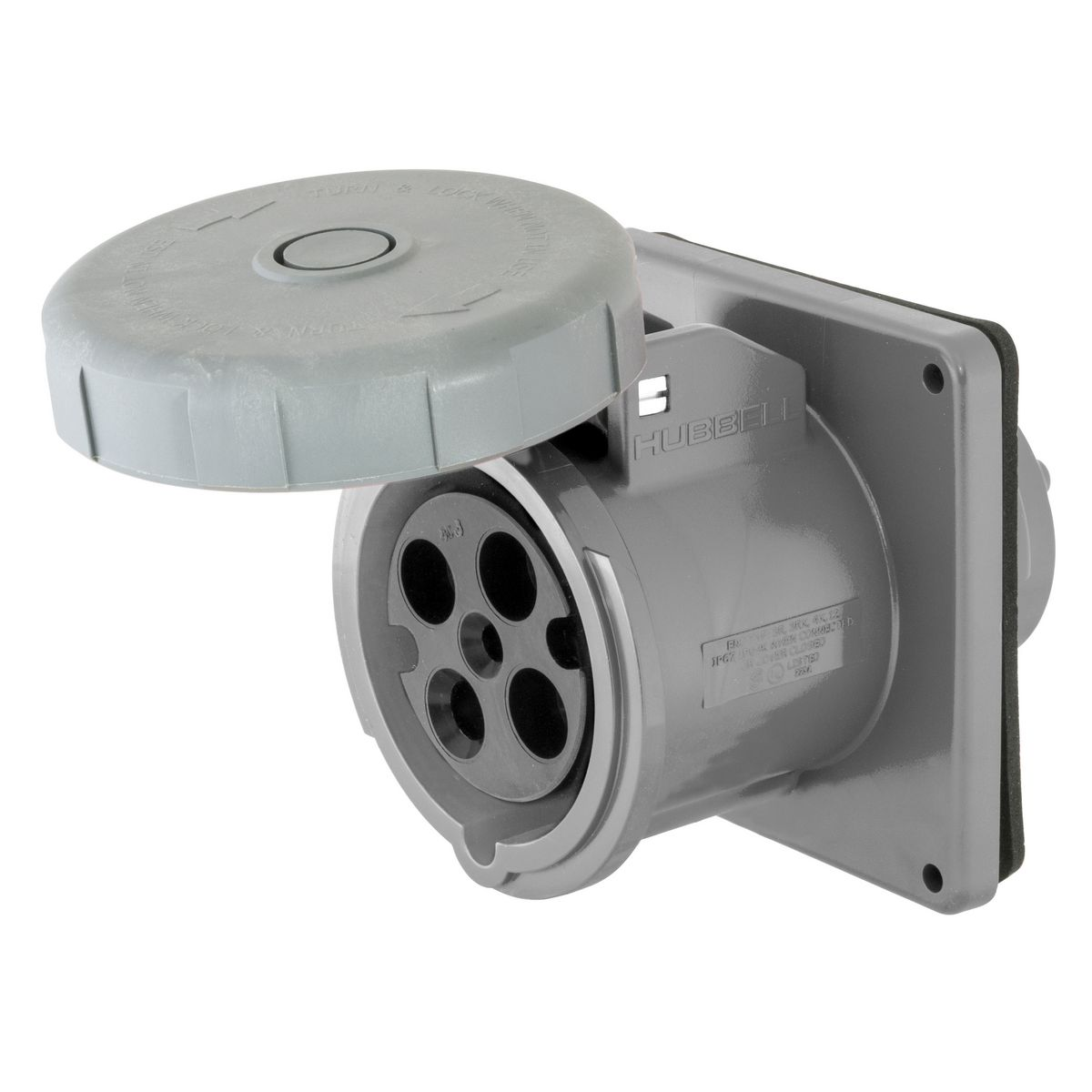

HUBBELL WIRING DEVICE-KELLEMS M4100R12 Iec Pin And Sleeve Receptacle, Female, 100 A, 125 - 250 V, 3 Pole, Yellow
Item: AD7ARUModel: M4100R12Cross Ref: 4D344
7 In Stock
Ships within 2 days via
10.00% off
€1,771.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Pin and Sleeve Receptacle |
| Amps | 100A |
| Cap Type | Spring Loaded Cap |
| Color | Gray |
| Connection Orientation | Straight |
| Current Rating | 100A |
| Exposure Conditions | Weather Resistant |
| Face Diameter | 4.71" |
| Features | Color Coded |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Housing Color | Gray |
| Housing Material | Thermoplastic |
| Ip Rating | IP67 |
| Market | Industrial |
| Material | Thermoplastic |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 1/0 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 3 AWG |
| Mounting Style | Screw |
| Nema Enclosure Rating | NEMA 4X |
| Number Of Gangs | 1 |
| Number Of Poles | 3.0 |
| Number Of Wires | 4 |
| Phase | 1 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-m4100r12.pdf |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Weather Resistant |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Type | Pin And Sleeve |
| Ul 94 Flammability Rating | HB |
| Voltage | 125/250V |
| Voltage Rating | 125/250V AC |
| Wattage | 25000 W |
| Wattage | 25000 |
| Wire Connection Type | Screw Terminals |
| Wire Size | #3 AWG to #1/0 AWG |
Shipping Info:
| Ship weight (kg) | 1.78 |
| Ship height (cm) | 14.99 |
| Ship length (cm) | 18.8 |
| Ship width (cm) | 16.26 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage Rating | Phase | Number Of Poles | Number Of Wires | Wattage | Reverse Service | Current Rating | Grounding Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

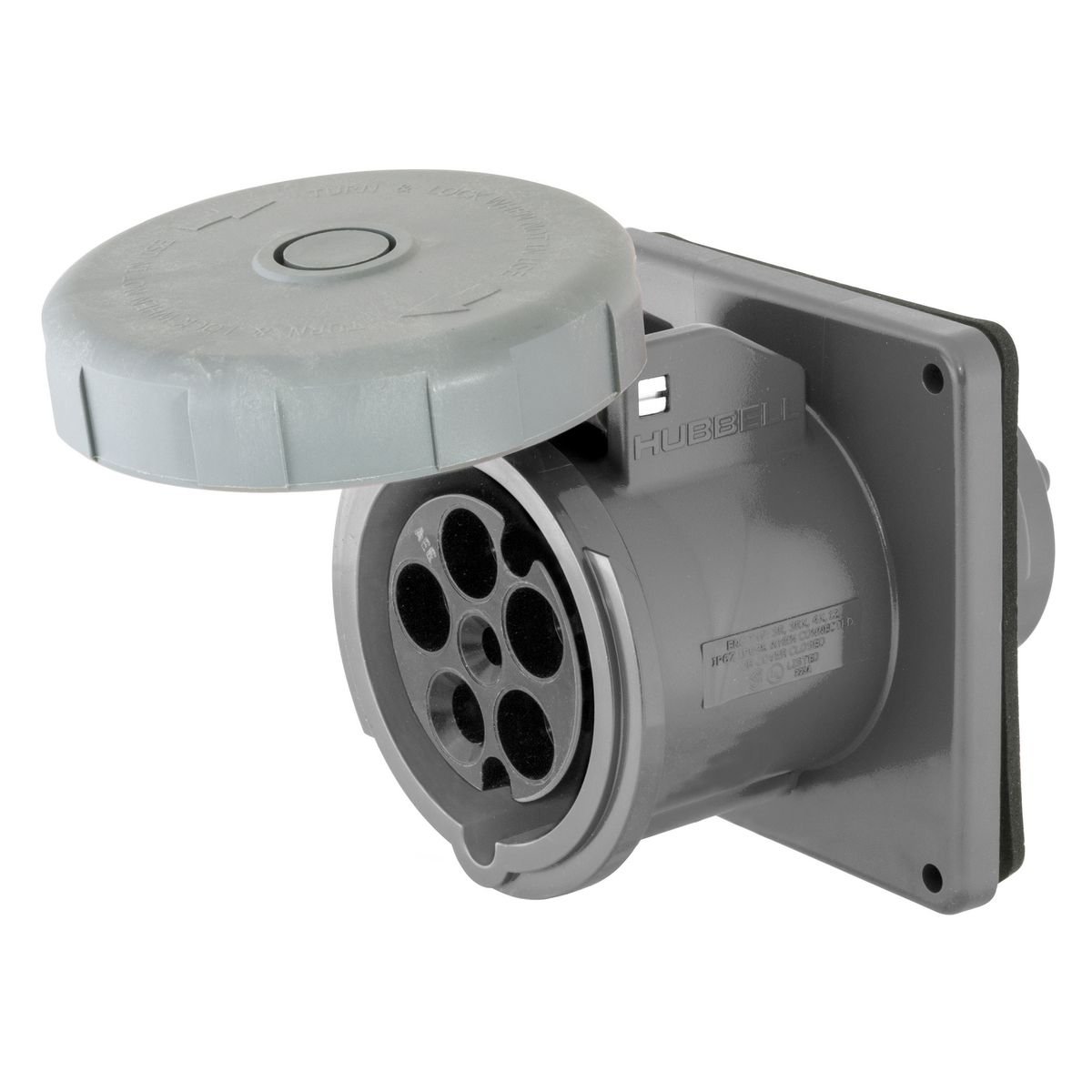

M5100R9 | 120/208V AC | 3 | 4.0 | 5 | 48000 W | No | 100A | IEC | €2,019.10 |
