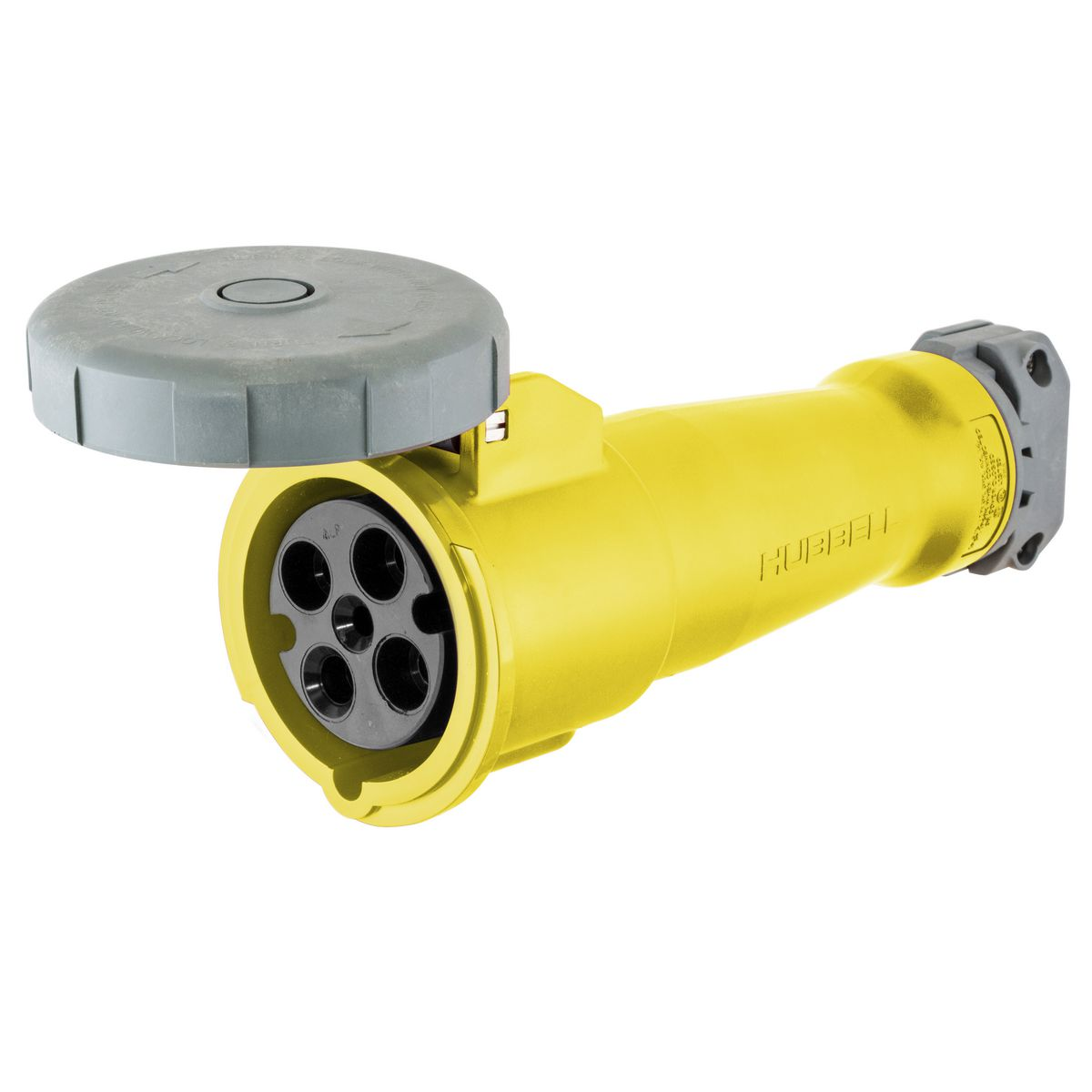

HUBBELL WIRING DEVICE-KELLEMS M4100C12 Iec Pin And Sleeve Connector, Female, 100 A, 125 - 250 V, 3 Pole, Yellow
Item: AD7ARQModel: M4100C12Cross Ref: 4D341
7 In Stock
Ships within 2 days via
10.00% off
€1,800.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Pin and Sleeve Connector |
| Amps | 100A |
| Cap Type | Spring Loaded Cap |
| Color | Yellow |
| Conductor Size | #3 AWG to #1 AWG |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Current Rating | 100A |
| Exposure Conditions | Wateright |
| Face Diameter | 4.71" |
| Features | Pin Chamber Confines Arcing Within The Interior Chamber, Spring Loaded, Gasketed Cover For Dust Tight Seal, Watertight Neoprene Sealing Glands For Reliable Seal |
| For Environment | Marine |
| For Location | Outdoor |
| For Maximum Cable Diameter | 1.94" |
| For Minimum Cable Diameter | 1.065" |
| Grounding | Grounded |
| Grounding Style | IEC |
| Housing Color | Yellow |
| Housing Material | PBT |
| Ip Rating | IP67 |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 1/0 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 3 AWG |
| Mounting Style | Cord |
| Nema Enclosure Rating | NEMA 4X |
| Number Of Conductors | 4 |
| Number Of Poles | 3.0 |
| Number Of Wires | 4 |
| Outside Diameter | 5.06" |
| Overall Length | 13.14" |
| Phase | 1 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-m4100c12.pdf |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 125/250V AC |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 2.18 |
| Ship height (cm) | 12.85 |
| Ship length (cm) | 33.38 |
| Ship width (cm) | 12.85 |
| HS code | 8536904000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Ip Rating | Cap Type | Reverse Service | Current Rating | Voltage Rating | Phase | Number Of Poles | Number Of Wires | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

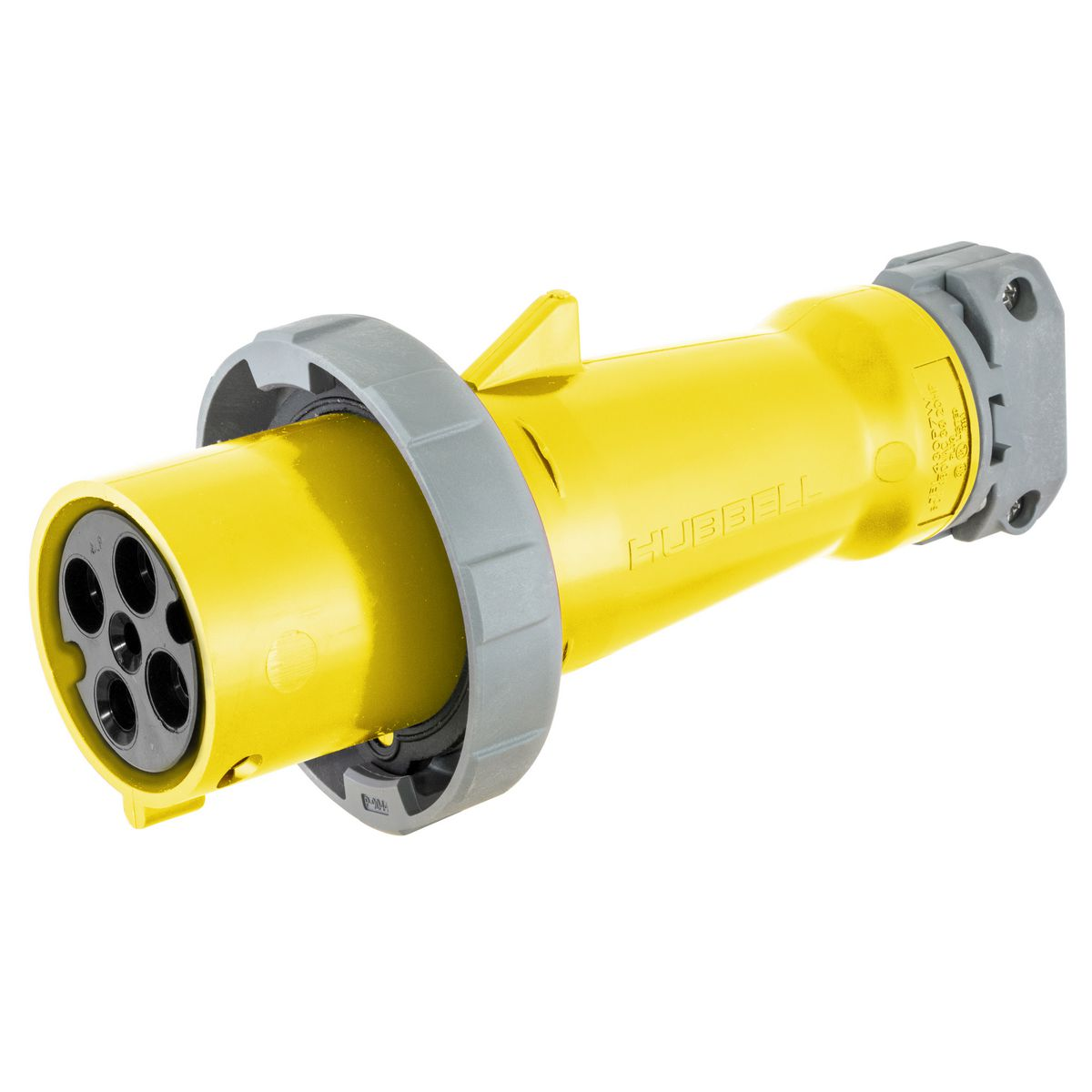

M4100C12R | IP56 | No Cap, Cover | No | 100A | 125/250V AC | 1 | 3.0 | 4 | €1,961.40 |
