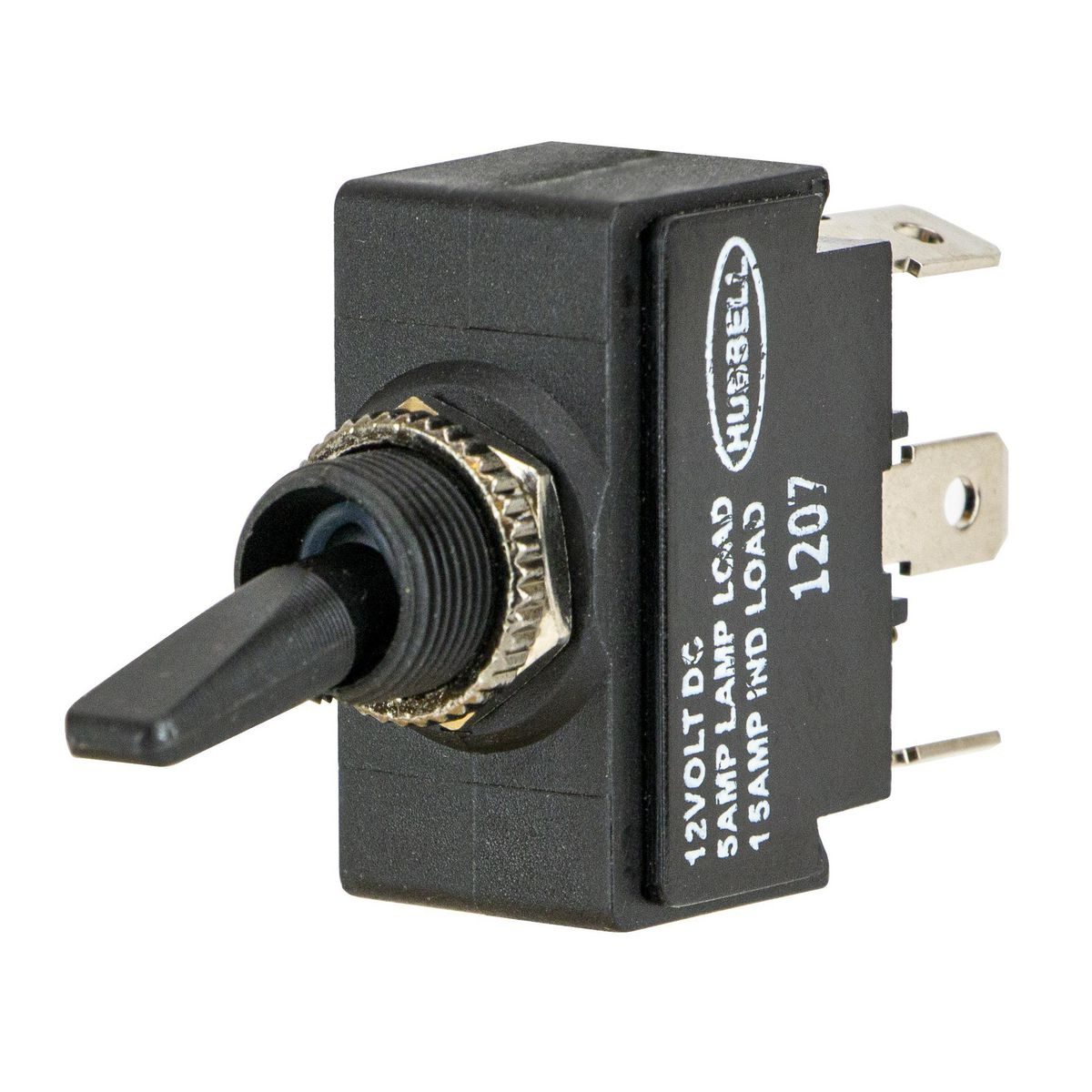

HUBBELL WIRING DEVICE-KELLEMS M223JSP Toggle Switch Dpdt On/off/on
Item: AC9QGMModel: M223JSPCross Ref: 3HZ94
7 In Stock
Ships within 2 days via
10.00% off
€36.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Toggle Switch |
| Actuator Color | Black |
| Actuator Length | 0.67" |
| Actuator Style | Flattened Lever |
| Base Type | Flat |
| Contact Form | DPDT |
| Dc Contact Rating | 15A @ 12V |
| Diameter | 1/2" |
| Features | Black |
| Includes | Lock Nuts |
| Ip Rating | Not Rated |
| Manufacturer Warranty Length | 1 yr. |
| Nema Enclosure Rating | No Enclosure |
| Number Of Connections | 6 |
| Number Of Poles | 2 |
| Number Of Positions | 3 |
| Operating Temp. | -10°F to +105°F |
| Operating Temperature - Maximum | 105°F |
| Operating Temperature - Minimum | -10°F |
| Operator Illumination Style | Non-Illuminated |
| Overall Depth | 2.28" |
| Overall Height | 19/25" |
| Overall Width | 1 9/25" |
| Panel Mounting Hole Diameter | 0.48" |
| Product Datasheet | hubbell-wiring-device-kellems-m223jsp.pdf |
| Product Type | Marine Toggle Switch |
| Recommended Use | Navigation Lights, Windlass |
| Resistance Properties | Corrosion Resistant |
| Series | MARINE Series |
| Stem Diameter | 0.48" |
| Stem Length | 0.37" |
| Stem Thread Size | 15/32-32 Unc-2A |
| Switch Function | On/Off/On |
| Switch Function Configuration | On/Off/On |
| Terminal Connection Type | Spade terminals |
| Terminal Size | 0.43" |
| Terminal Type | Solder Lug, Tab |
| Thread Class | Class 2A |
| Thread Size | 0.47"-32 |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 7.11 |
| HS code | 8536509040 |
| Country of Origin | CN |
Product Details:
- Stem Color (Black)
