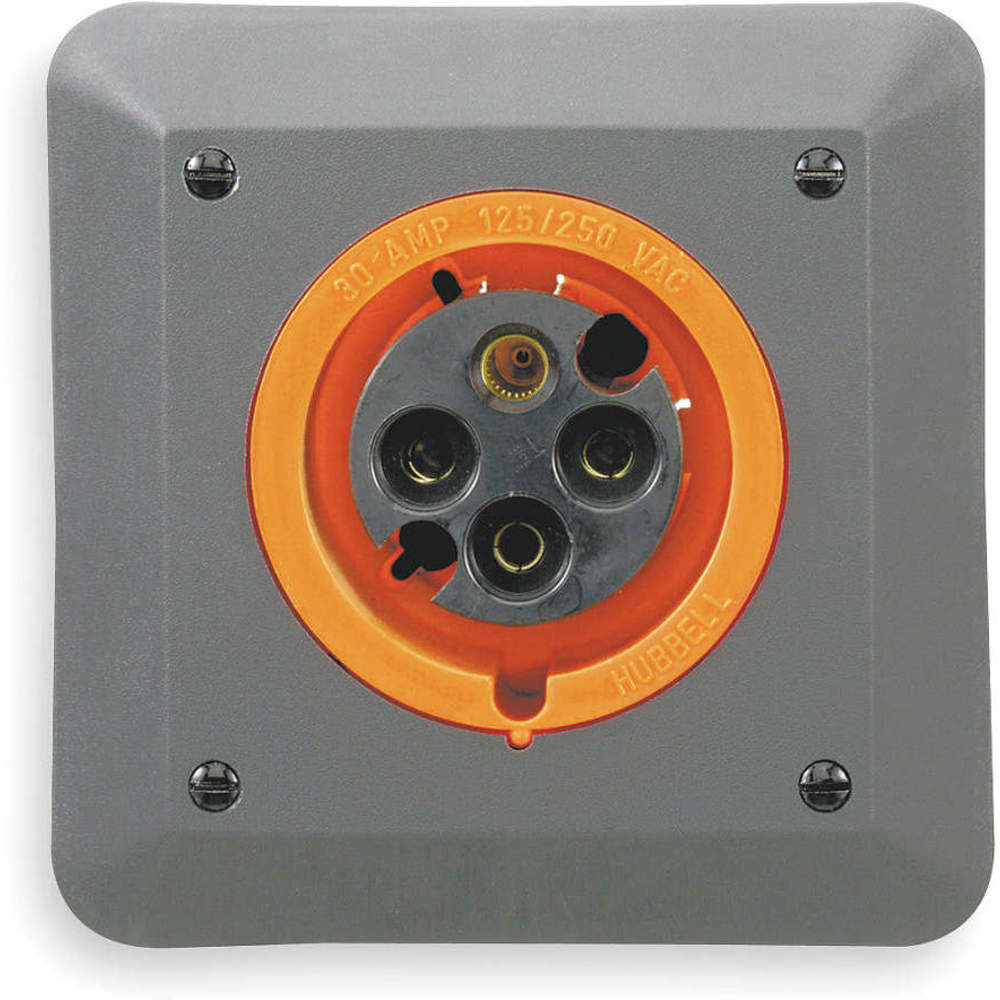

HUBBELL WIRING DEVICE-KELLEMS L430R12 Iec Pin And Sleeve Receptacle, Female, 30 A, 125 - 250 V, 3 Pole, Orange
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€360.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | IEC Pin and Sleeve Receptacle |
| Amps | 30A |
| Cap Type | Spring Loaded Cap |
| Color | Orange |
| Connection Orientation | Straight |
| Current Rating | 30A |
| Exposure Conditions | Wateright |
| Features | Color Coded, Split Sleeves With Self Adjusting Stainless Steel Springs |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Housing Color | Orange |
| Housing Material | Thermoplastic |
| Housing Material Grade | Grade Zytel 101 |
| Ip Rating | IP22 |
| Market | Industrial |
| Material | Thermoplastic |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 14 AWG |
| Mounting Style | Screw |
| Nema Enclosure Rating | NEMA 4X |
| Number Of Gangs | 1 |
| Number Of Poles | 3.0 |
| Number Of Wires | 4 |
| Phase | 1 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-l430r12.pdf |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 250V AC |
| Wattage | 7500 W |
| Wattage | 7500 |
| Wire Connection Type | Screw Terminals |
| Wire Size | 12 AWG to 8 AWG |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 12.19 |
| Ship width (cm) | 10.16 |
| HS code | 8536698000 |
| Country of Origin | US |
