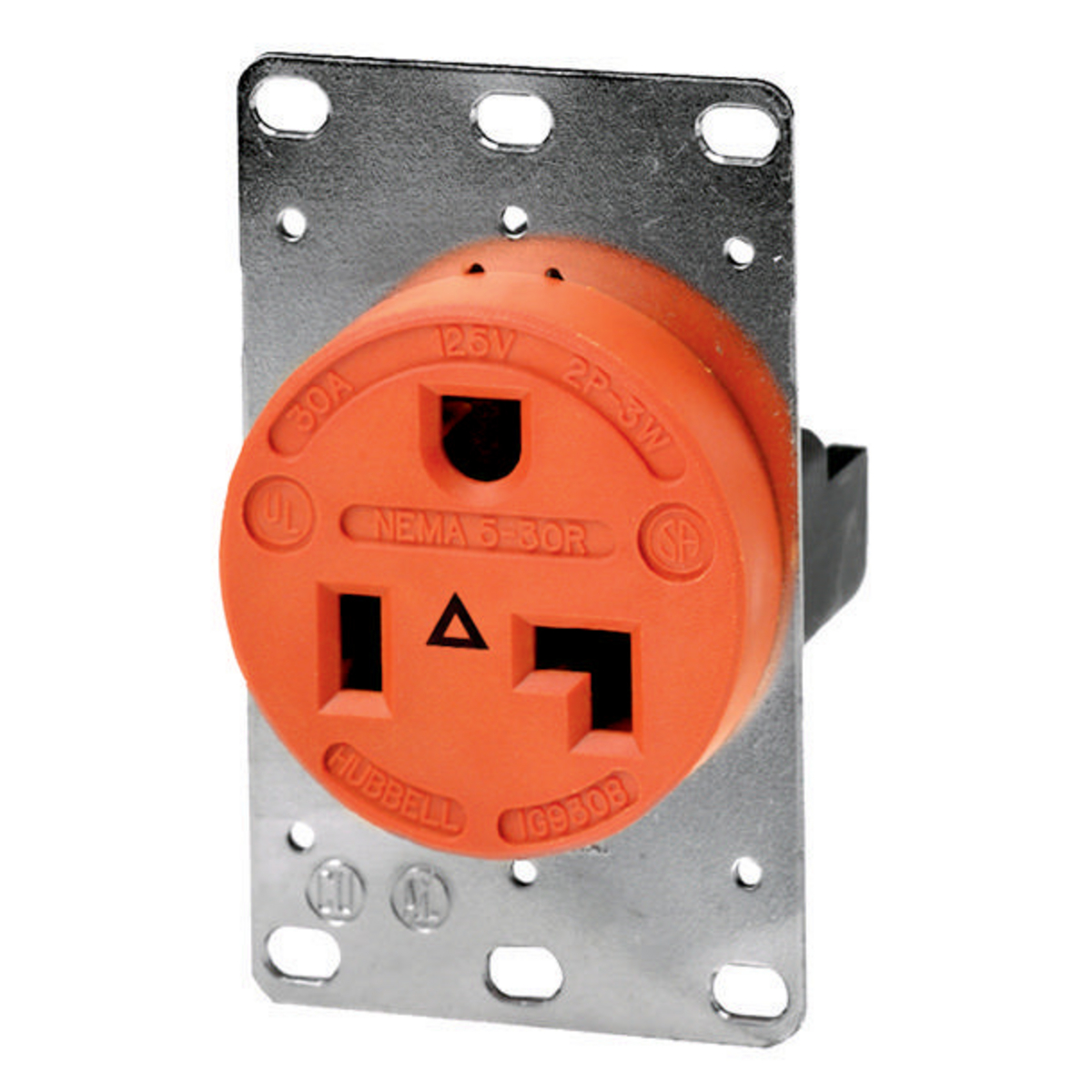

HUBBELL WIRING DEVICE-KELLEMS IG9308 Straight Blade Devices, Receptacles, Flush Receptacle, Industrial Grade, 2-Pole 3-Wire Grounding, 30A 125V, 5-30R, Orange, Single Pack
Item: BC8ZBPModel: IG9308
7 In Stock
Ships within 2 days via
€77.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Amps | 30A |
| Amps Interrupting | Certified For Current Interrupting At Full Rated Current |
| Application | Extra Heavy Duty |
| Box Terminals Material | Brass |
| Certification | UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285. |
| Color | Orange |
| Connectivity | Back, Side Wired Screw Terminals |
| Dimension S | 3.68" x 2.25" x 2.23" |
| Display Size | Standard Sized Product |
| Enhancement | Isolated Ground |
| Face Shape | Traditional |
| Face Style | Finder Groove |
| Flammability | 94 V - 0 V |
| Height | 2.23" |
| Ip Suitability | IP20 |
| Length | 3 17/25" |
| Mounting Hardware Material | Screw Mounting |
| No. Of Poles | 2 |
| No. Of Wire | 3 |
| Operating Temp. | Maximum Continuous 75°C And Minimum-40°C Without Impact |
| Product Datasheet | hubbell-wiring-device-kellems-ig9308.pdf |
| Rating | 30A, 125V |
| Receptacle Grade | Heavy Duty Spec Grade |
| Receptacle Style | Single |
| Temp. Rise | Max 30°C Temperature Rise at Full Rated Current After 50 Cycles Of Overload at 150% Of Rated Current At A Power Factor Of 75% |
| Terminal Accommodation | #12 AWG Through #4 AWG Copper Wire Only |
| Type | 2 Pole, 3 Wire, Grounding |
| Voltage | 125V AC |
| Watts | 3750 W |
| Width | 2 1/4" |
| Wire Size | #12 AWG To #4 AWG |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 5.66 |
| Ship length (cm) | 9.35 |
| Ship width (cm) | 5.72 |
| Country of Origin | US |
Documentation:
