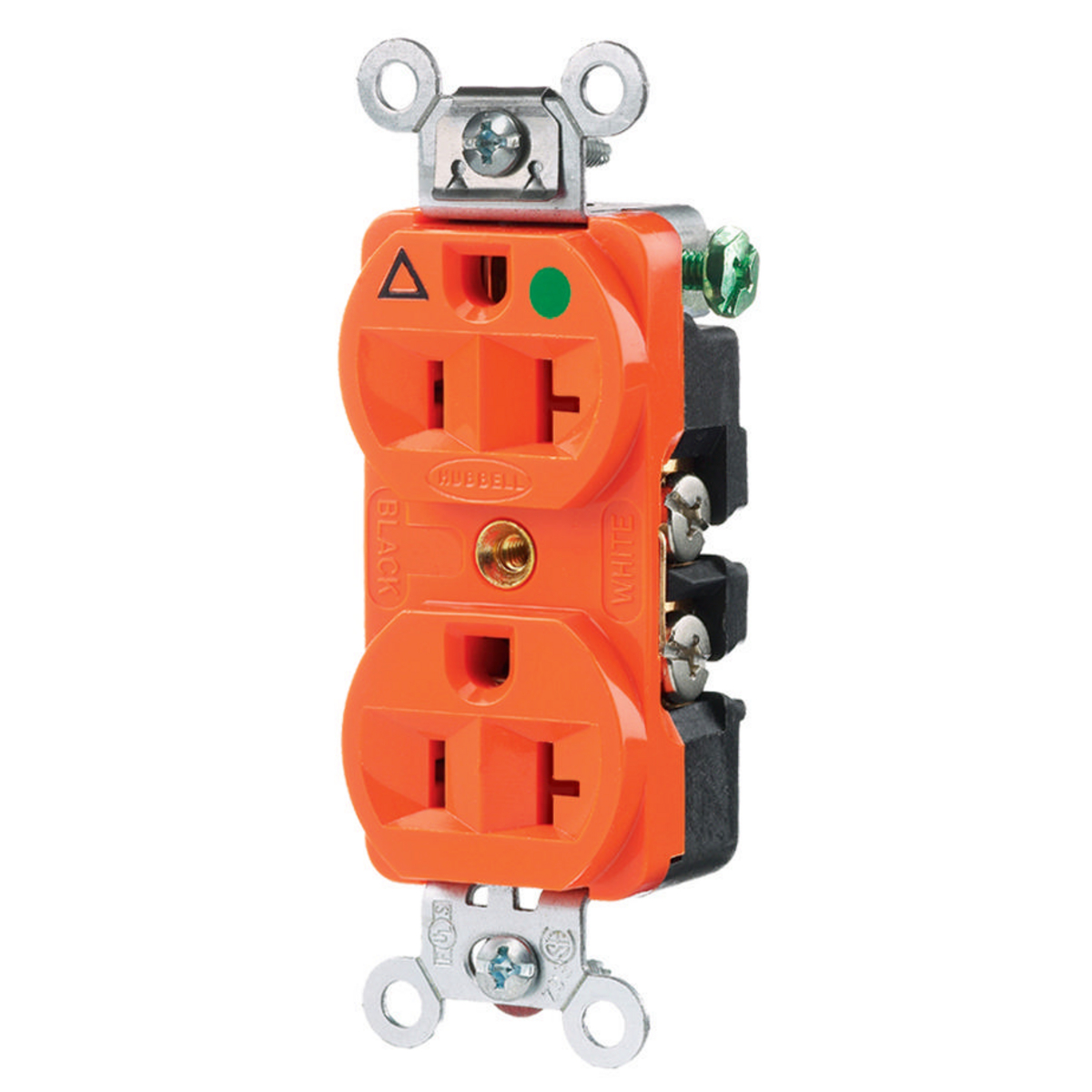

HUBBELL WIRING DEVICE-KELLEMS IG8300 Receptacle, Duplex, 2-Pole, 3-Wire Grounding, 20A, 125V, Orange
Item: AE7LFEModel: IG8300Cross Ref: 5Z828
7 In Stock
Ships within 2 days via
10.00% off
€82.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle w/Isolated Ground |
| Afci | No |
| Amps | 20A |
| Application Environment | Heavy Use Hospital Grade |
| Color | Orange |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired Screw Terminals |
| Cover Type | No Cover |
| Current Rating | 20A |
| Dielectric Strength | Withstands 2,000V minimum |
| Duty | Extra Heavy |
| Face Plate Height | 2.8" |
| Gfci | No |
| Grade | Hospital Grade Fed. Spec. |
| Grounding | Isolated Ground |
| Housing Color | Orange |
| Includes | Grounding Staple, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Includes Mounting Hardware | Yes |
| Ip Rating | IP20 |
| Material | Thermoplastic |
| Max. Hp | 1 hp |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Duplex |
| Phase | 1 |
| Polarized | Yes |
| Power Indicator | No |
| Product Datasheet | hubbell-wiring-device-kellems-ig8300.pdf |
| Receptacle Type | Duplex |
| Resistance Property | General Purpose |
| Special Resistance Properties | Impact Resistant |
| Standards | Csa Certified C22.2 No. 42 File 285, Federal Specification W-C-596, Nema Wd-6, Ul 498 File E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wattage | 1875 W |
| Weather Resistant | No |
| Width | 1.33" |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 12 AWG to 10 AWG |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.67 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 3.38 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
Hubbell Wiring Device-Kellems IG8300 receptacle provides a secure connection for electrical devices, preventing accidental disconnections and minimising the risk of electrical hazards. It is ideal for industrial and commercial settings for reliable electrical connections.
Features:
- It features an isolated ground, ensuring secure and stable electrical connections.
- This receptacle comes with CSA, UL and NEMA certifications, guaranteeing compliance with industry regulations and standards.
- It features a polarised design to ensure correct alignment.
- This receptacle offers impact resistance, safeguarding against damage in demanding environments.
- It has an IP20 rating to protect against solid objects and provide added safety in indoor environments.
Compatible Accessories:
- Hubbell HBL5364VY Straight Blade Male Plug: It ensures secure connections with corresponding receptacles and provides efficient power transmission while adhering to safety standards.
Frequently Asked Questions:
Q. What is a hospital-grade receptacle?
A. Hospital-grade receptacles meet stringent safety standards required for healthcare facilities. They offer enhanced durability, reliability and safety features to ensure uninterrupted power supply in critical medical settings.
Q. What wire connection types does this Hubbell IG8300 receptacle support?
A. Hubbell IG8300 receptacle features screw terminals for wire connections, offering a secure and stable installation method for electrical wiring.
Documentation:
Product Variants
| Product | Model | Current Rating | Voltage Rating | Housing Color | Grade | Wire Size | Color | Nema Rating | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL8200 | 15A | 125V AC | Brown | Hospital Grade Fed. Spec. | 14 AWG to 10 AWG | Brown | NEMA 5-15R | Thermoplastic | €66.27 | |
 |
HBL8300 | - | - | - | - | 12 AWG to 10 AWG | Brown | NEMA 5-20R | Thermoplastic | €81.22 | |
 |
HBL8200ILGY | 15A | 125V AC | Gray | Hospital Grade Fed. Spec. | 14 AWG to 10 AWG | Gray | NEMA 5-15R | Polycarbonate | €105.35 | |
 |
HBL8200ILW | 15A | 125V AC | White | Hospital Grade Fed. Spec. | 14 AWG to 10 AWG | White | NEMA 5-15R | Polycarbonate | €112.11 | |
 |
HBL8300ILGY | 20A | 125V AC | Gray | Hospital Grade Fed. Spec. | 12 AWG to 10 AWG | Gray | NEMA 5-20R | Polycarbonate | €103.40 | |
 |
HBL8300ILW | 20A | 125V AC | White | Hospital Grade Fed. Spec. | 12 AWG to 10 AWG | White | NEMA 5-20R | Polycarbonate | €118.66 | |
 |
IG8200R | 15A | 125V AC | Red | Hospital Grade Fed. Spec. | 14 AWG to 10 AWG | Red | NEMA 5-15R | Nylon | €77.48 |
