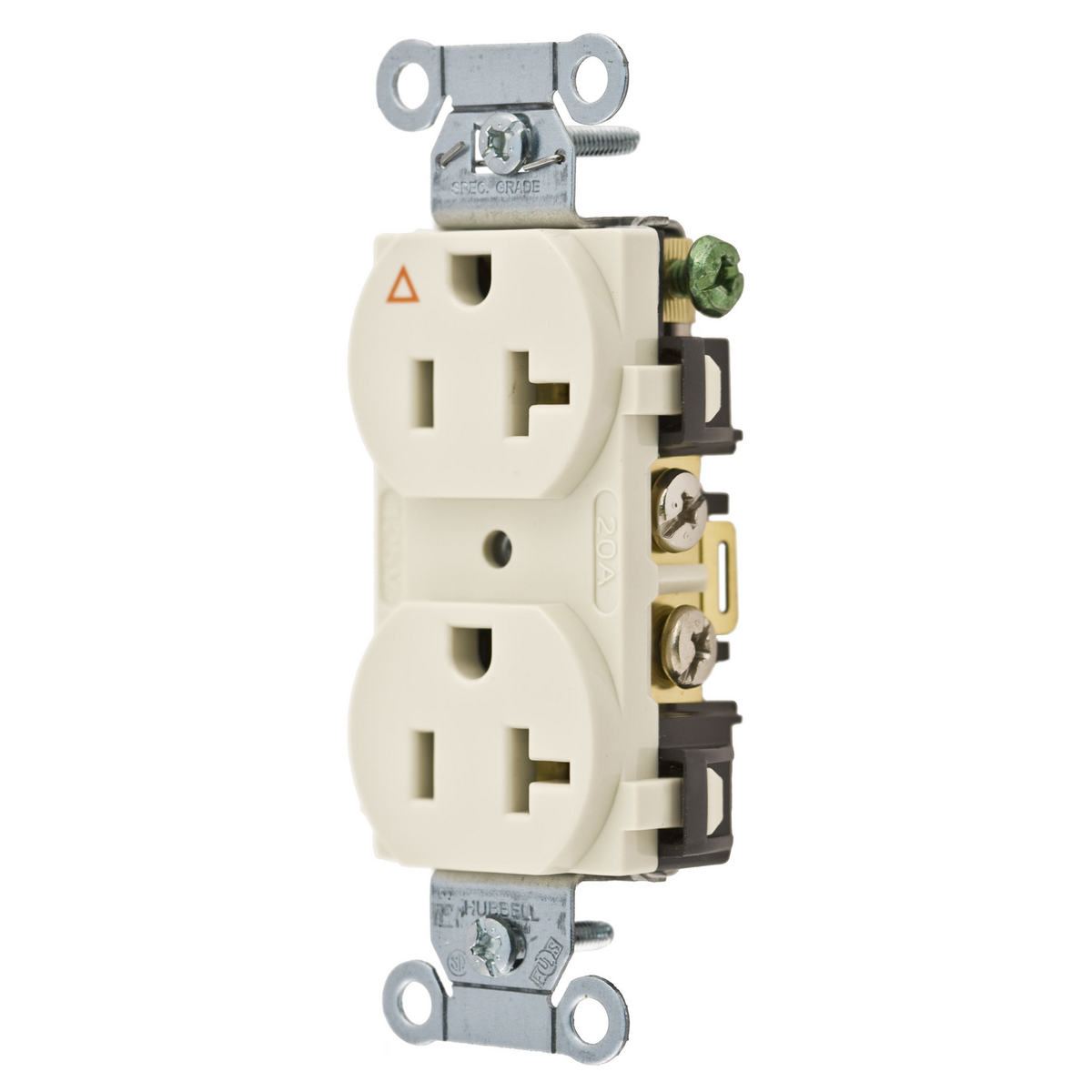

HUBBELL WIRING DEVICE-KELLEMS IG20CRLA Straight Receptacle, Duplex, 20A 125V, Side Wired, Light Almond
Item: AD7PJRModel: IG20CRLACross Ref: 4FTW7
7 In Stock
Ships within 2 days via
5.00% off
€18.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 20A |
| Application Environment | Commercial Environments |
| Color | Almond |
| Connection Orientation | Straight |
| Connectivity | Side Wired |
| Contact Material | Brass |
| Cover Type | No Cover |
| Dielectric Strength | Withstands 2,000V minimum |
| Face Plate Height | 2.7" |
| Face Plate Width | 1.3" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Isolated Ground |
| Height | 3 7/25" |
| Housing Color | Light Almond |
| Housing Material | Nylon |
| Hp | 1 hp |
| Included | Grounding Staple, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Included Mounting Hardware | Yes |
| Length | 1 8/25" |
| Material | Nylon |
| Max. Hp | 1 hp |
| Max. Operating Temp. | 167°F |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°F |
| Min. Wire Size | 12 AWG |
| Mount Hole Center To Center Height | 3.3" |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Outlet Type | Duplex |
| Overall Depth | 3.3" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-ig20crla.pdf |
| Receptacle Type | Duplex |
| Special Resistance | Corrosion Resistant |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V , 125V AC |
| Wattage | 2500 W |
| Watts | 2500 W |
| Weather Resistance | No |
| Weather Resistant | No |
| Width | 1.06" |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminal |
| Wire Size | 12 AWG to 10 AWG |
| Wiring Method | Side |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 8.33 |
| Ship length (cm) | 8.38 |
| Ship width (cm) | 2.69 |
| HS code | 8536698000 |
| Country of Origin | CN |
Product Details:
- 2-Pole 3-Wire Grounding, Corrosion Resistant
Documentation:
Product Variants
| Product | Model | Color | Voltage | Wire Size | Grade | Housing Color | Connectivity | Outlet Type | Wiring Method | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CR20 | Brown | 125V AC | 12 AWG to 10 AWG | Federal Specification | Brown | Side Wired | Duplex | Side | €5.94 | |
 |
CR20GRYTR | Gray | 125V AC | 14 AWG to 10 AWG | Federal Specification | Gray | Side Wired | Duplex | Side | €16.42 | |
 |
CR20ITR | Ivory | 125V AC | 14 AWG to 10 AWG | Federal Specification | Ivory | Side Wired | Duplex | Side | €19.15 | |
 |
CR20WHITR | White | 125V AC | 12 AWG to 10 AWG | Federal Specification | White | Side Wired | Duplex | Side | €20.30 | |
 |
BR20TR | Brown | 125V AC | 12 AWG to 10 AWG | Federal Specification | Brown | Back And Side Wired | Duplex | Back And Side | €17.71 | |
 |
BR20GRYTR | Gray | 125V AC | 12 AWG to 10 AWG | Federal Specification | Gray | Back And Side Wired | Duplex | Back And Side | €19.41 | |
 |
BR20ITR | Ivory | 125V AC | 12 AWG to 10 AWG | Federal Specification | Ivory | Back And Side Wired | Duplex | Back And Side | €26.69 |
