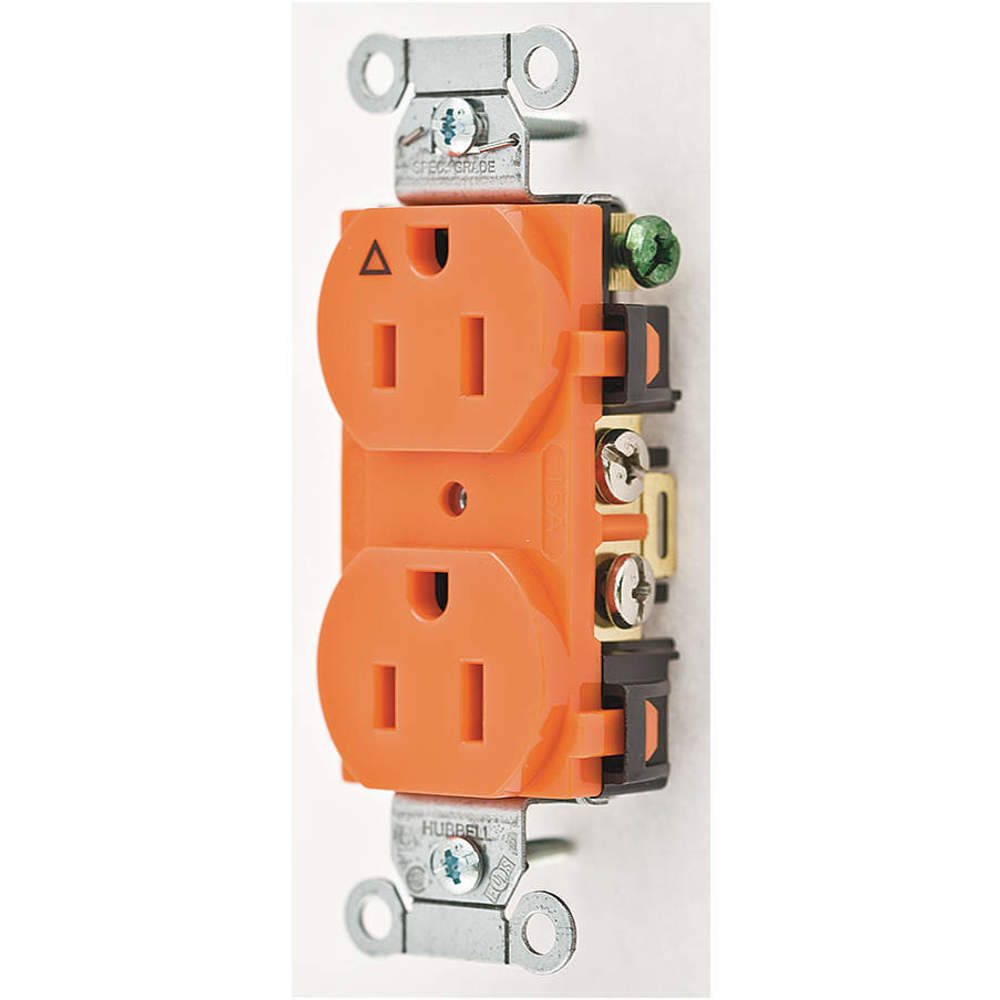

HUBBELL WIRING DEVICE-KELLEMS IG15CR Straight Receptacle, Duplex, 15A 125V, Side Wired, Orange
Item: AD7HWQModel: IG15CRCross Ref: 4ENH2
7 In Stock
Ships within 2 days via
10.00% off
€17.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Application Environment | Commercial Environments |
| Color | Orange |
| Connection Orientation | Straight |
| Connectivity | Side Wired Screw Terminals |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 15A |
| Dielectric Strength | Withstands 2,000V minimum |
| Face Plate Height | 2.7" |
| Face Plate Width | 1.3" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Isolated Ground |
| Height | 3 7/25" |
| Horsepower Rating | 1/2 hp |
| Housing Color | Orange |
| Housing Material | Nylon |
| Includes | Grounding Staple, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Includes Mounting Hardware | Yes |
| Length | 1 8/25" |
| Material | Nylon |
| Max. Hp | 1/2 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Duplex |
| Overall Depth | 3.3" |
| Phase | 1 |
| Polarized | Yes |
| Power Indicator | No |
| Prod. Description | Smooth Face Isolated Ground |
| Product Datasheet | hubbell-wiring-device-kellems-ig15cr.pdf |
| Receptacle Type | Duplex |
| Special Resistance | Corrosion Resistant |
| Standards | Csa Certified C22.2 No. 42, Federal Specification W-C-596, Nema Wd-6, Ul 498 File E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V |
| Voltage Rating | 125V AC |
| Wattage | 1875 W |
| Weather Resistant | No |
| Width | 0.83" |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 14 AWG to 10 AWG |
| Wiring Method | Side |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 8.33 |
| Ship length (cm) | 3.35 |
| Ship width (cm) | 2.11 |
| HS code | 8536698000 |
| Country of Origin | CN |
Product Details:
- 2-Pole 3-Wire Grounding, Corrosion Resistant
Documentation:
Product Variants
| Product | Model | Grade | Receptacle Type | Wire Connection Location | Housing Color | Wire Size | Color | Height | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CR15 | Federal Specification | Duplex | Side | Brown | 14 AWG to 10 AWG | Brown | 3 7/25" | Flush | €4.69 | |
 |
BR15 | Federal Specification | Duplex | Back, Side | Brown | 14 AWG to 10 AWG | Brown | 1.07" | Flush | €8.70 | |
 |
BR15BLK | Federal Specification | Duplex | Back, Side | Black | 14 AWG to 10 AWG | Black | 1.07" | Flush | €9.04 | |
 |
BR15GRY | Federal Specification | Duplex | Back, Side | Gray | 14 AWG to 10 AWG | Gray | 1.1" | Flush | €7.98 | |
 |
BR15I | Federal Specification | Duplex | Back, Side | Ivory | 14 AWG to 10 AWG | Ivory | 1.1" | Flush | €9.97 | |
 |
BR15WHI | Federal Specification | Duplex | Back, Side | White | 14 AWG to 10 AWG | White | 1.1" | Flush | €10.46 | |
 |
CR15TR | Federal Specification | Duplex | Side | Brown | 14 AWG to 10 AWG | Brown | 3 7/25" | Flush | €14.13 |
