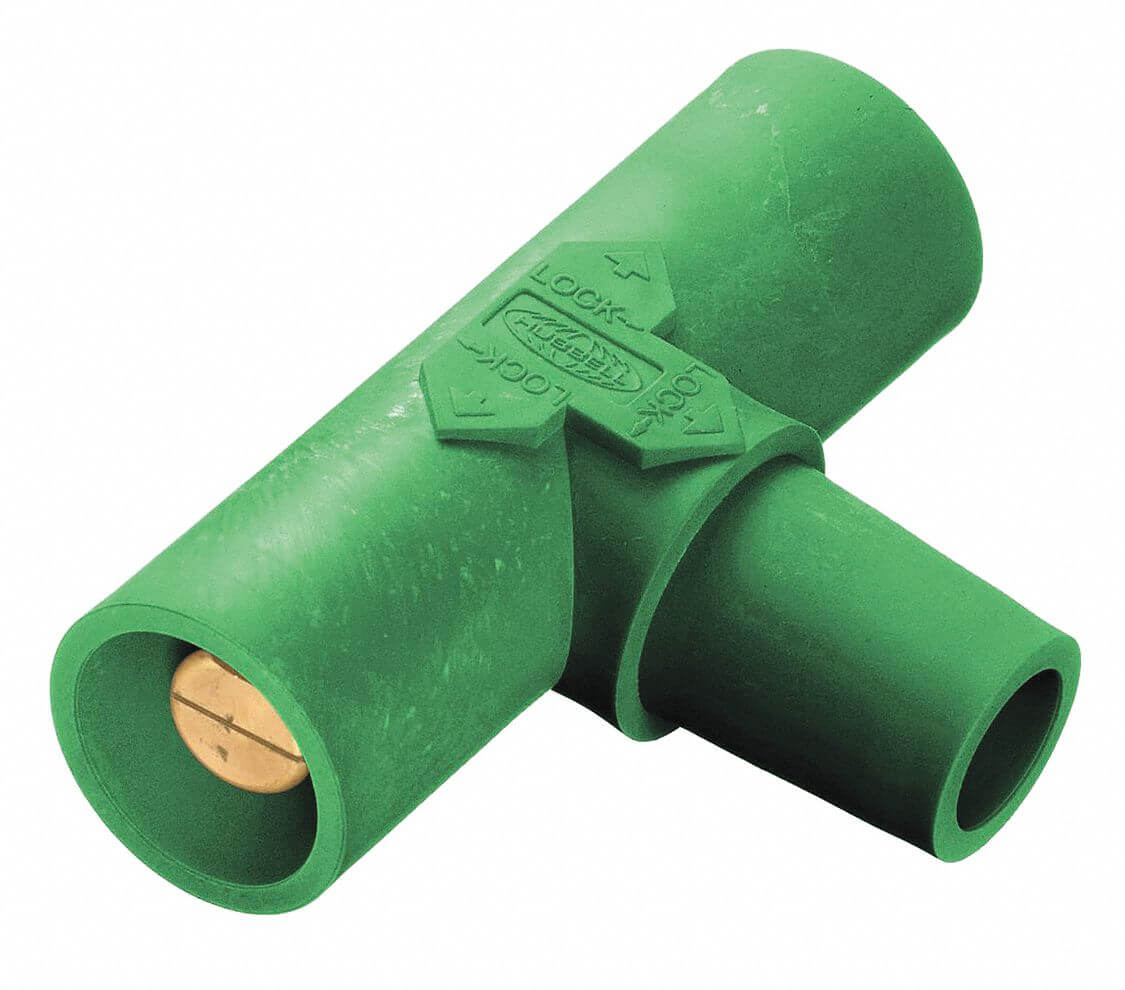

HUBBELL WIRING DEVICE-KELLEMS HBLPTGN Single Pole Connector Parallel Tee Green
Item: AF7BHQModel: HBLPTGNCross Ref: 20TT90
7 In Stock
Ships within 2 days via
10.00% off
€223.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Single Pole Connector |
| Amps | 400A |
| Color | Green |
| Compatible With Series | Series 16 |
| Conductor Material | Brass |
| Contact Material | Brass |
| Current Rating | 400A |
| Gender Configuration | Male-Male-Female |
| Housing Color | Green |
| Housing Material | Thermoplastic Elastomer |
| Material | Brass, Elastomer |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -40°C |
| Nema Enclosure Rating | Nema 3R, Nema 4X, Nema 12 |
| Nema Rating | NEMA 3R, NEMA 4X, NEMA 12 |
| Operating Temp. | - 75°C to -40°C |
| Overall Height | 3.18" |
| Overall Length | 4.65" |
| Overall Width | 1.54" |
| Product Datasheet | hubbell-wiring-device-kellems-hblptgn.pdf |
| Product Type | Paralleling Tee |
| Single Pole Device Style | Taper Nose |
| Terminal Connection Type | Single Pin |
| Type | Parallel Tee |
| Voltage Rating | 250V DC/600V AC |
| Wattage | 360000 W |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 8.08 |
| Ship length (cm) | 11.81 |
| Ship width (cm) | 3.91 |
| HS code | 8536698000 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Current Rating | Housing Color | Type | Color | Amps | Terminal Connection Type | Operating Temp. | Male/female | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL15MBK | 150A | Black | Male | Black | 150A | Double Set Screw | - | Male | €41.81 | |
 |
HBL15MW | 150A | White | Male | White | 150A | Double Set Screw | - | Male | €43.89 | |
 |
HBL15MR | 150A | Red | Male | Red | 150A | Double Set Screw | - | Male | €57.18 | |
 |
HBL15MBL | 150A | Blue | Male | Blue | 150A | Double Set Screw | - | Male | €44.62 | |
 |
HBL15MGN | 150A | Green | Male | Green | 150A | Double Set Screw | - | Male | €43.89 | |
 |
HBL15FBK | 150A | Black | Female | Black | 150A | Double Set Screw | - | Female | €41.81 | |
 |
HBL15FW | 150A | White | Female | White | 150A | Double Set Screw | - | Female | €43.89 |
