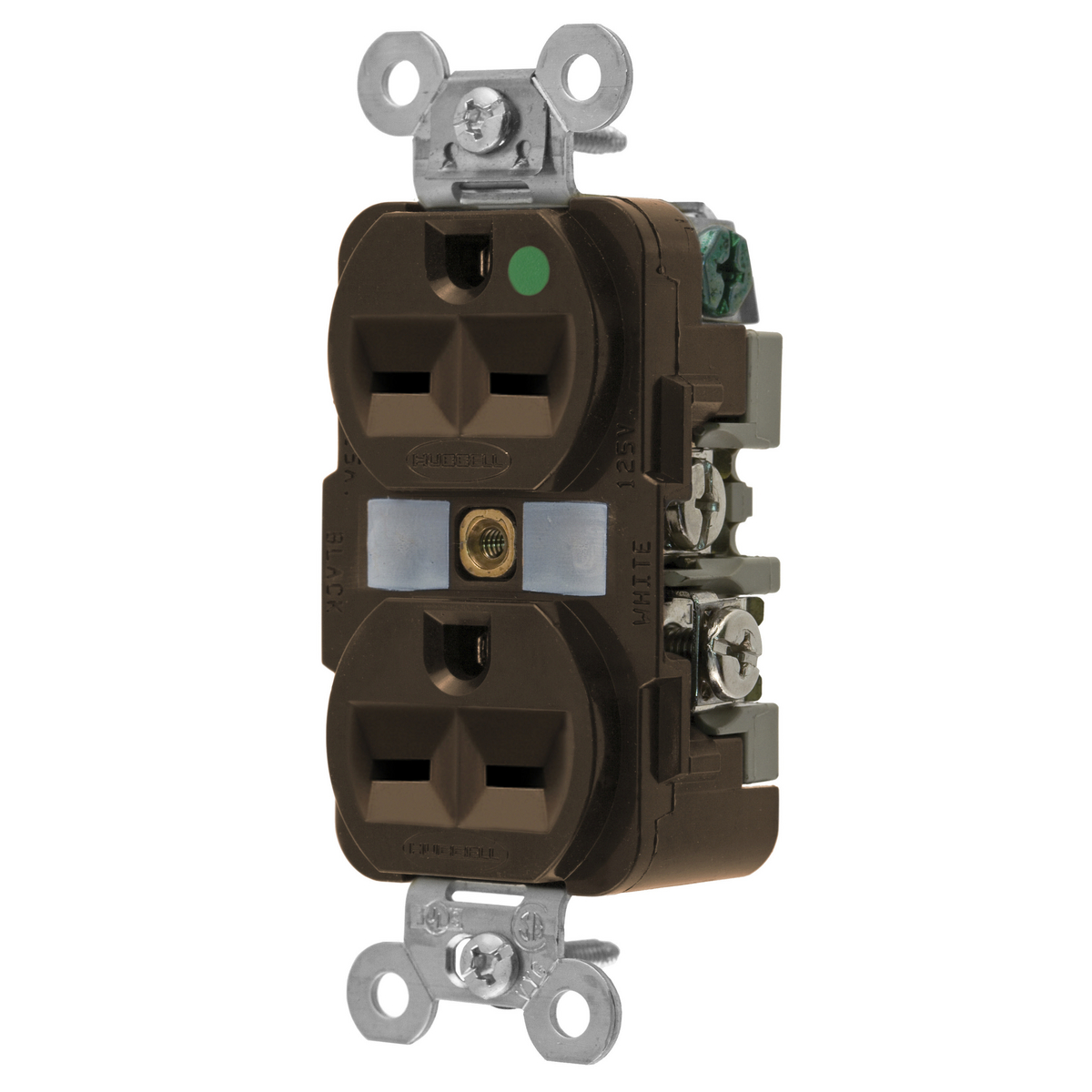

HUBBELL WIRING DEVICE-KELLEMS HBL8600 Receptacle, Duplex, 2-Pole, 3-Wire Grounding, 15A, 250V, Brown
Item: BC9TXQModel: HBL8600
7 In Stock
Ships within 2 days via
€74.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Color | Brown |
| Conductor Range | #14 AWG to #10 AWG |
| Connectivity | Back And Side Wired Screw Terminals |
| Diameter D | #14 AWG to #10 AWG |
| Dielectric Strength | Withstands 2,000V minimum |
| Height | 1.19" |
| Length | 3 7/25" |
| Material | Thermoplastic |
| Max. Hp | 1 1/2 hp |
| Mounting | Screw Mounting |
| Nema Rating | NEMA 6-15R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl8600.pdf |
| Voltage | 250V |
| Wattage | 3750 W |
| Width | 1.65" |
| Wire Size | 14 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 4.19 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Current Rating | Voltage Rating | Housing Color | Grade | Wire Size | Color | Nema Rating | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL8200 | 15A | 125V AC | Brown | Hospital Grade Fed. Spec. | 14 AWG to 10 AWG | Brown | NEMA 5-15R | Thermoplastic | €66.27 | |
 |
HBL8300 | - | - | - | - | 12 AWG to 10 AWG | Brown | NEMA 5-20R | Thermoplastic | €81.22 | |
 |
HBL8200ILGY | 15A | 125V AC | Gray | Hospital Grade Fed. Spec. | 14 AWG to 10 AWG | Gray | NEMA 5-15R | Polycarbonate | €105.35 | |
 |
HBL8200ILW | 15A | 125V AC | White | Hospital Grade Fed. Spec. | 14 AWG to 10 AWG | White | NEMA 5-15R | Polycarbonate | €112.11 | |
 |
HBL8300ILGY | 20A | 125V AC | Gray | Hospital Grade Fed. Spec. | 12 AWG to 10 AWG | Gray | NEMA 5-20R | Polycarbonate | €103.40 | |
 |
HBL8300ILW | 20A | 125V AC | White | Hospital Grade Fed. Spec. | 12 AWG to 10 AWG | White | NEMA 5-20R | Polycarbonate | €118.66 | |
 |
IG8200R | 15A | 125V AC | Red | Hospital Grade Fed. Spec. | 14 AWG to 10 AWG | Red | NEMA 5-15R | Nylon | €77.48 |
