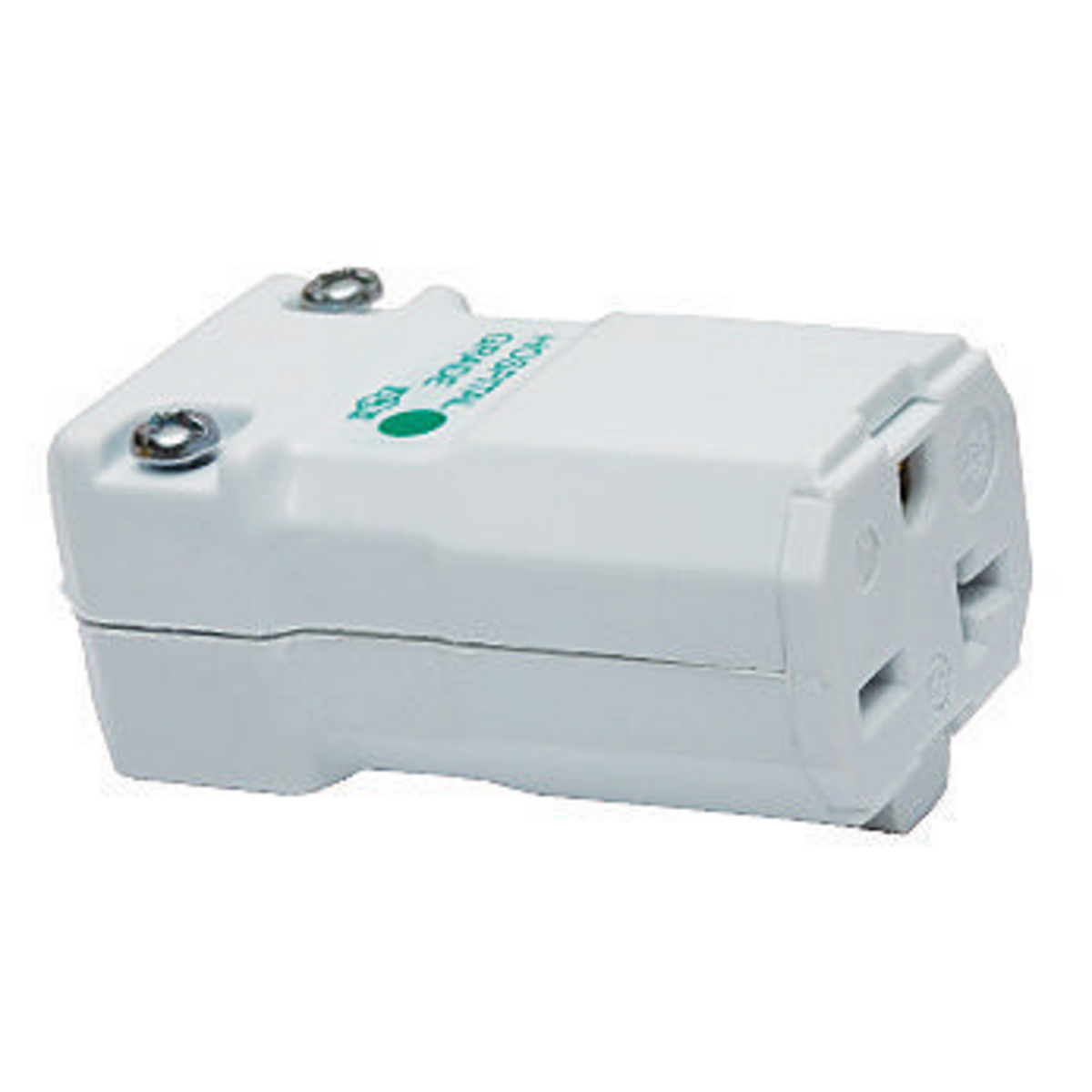

HUBBELL WIRING DEVICE-KELLEMS HBL8469V Female Connector, Straight, 20A 250V, 6-20R, White
Item: AC2MJXModel: HBL8469VCross Ref: 2LBY4
7 In Stock
Ships within 2 days via
10.00% off
€68.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connector |
| Amps | 20A |
| Antimicrobial | No |
| Cap Type | No Cap, Cover |
| Color | White |
| Conductor | #18 AWG to #12 AWG |
| Conductor Range | #18 AWG to #12 AWG |
| Connection Orientation | Straight |
| Connectivity | Screw Terminals |
| Contact Material | Brass |
| Cord Dia. Range | 0.300"-0.660" |
| Cord Size | 0.3" to 0.66" , 18 AWG to 12 AWG |
| Current Rating | 20A |
| Diameter | #18 AWG to #12 AWG |
| Dielectric Strength | Withstands 2,000V minimum |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 0.66" |
| For Minimum Cable Diameter | 0.3" |
| Grade | Hospital |
| Grounding | Grounded |
| Height | 1.13" |
| Horsepower Rating | 2 hp |
| Housing Color | White |
| Housing Material | Thermoplastic Elastomer |
| Insulation | Insulated Body |
| Ip Rating | IP20 |
| Length | 2.63" |
| Material | Nylon |
| Max. Hp | 2 hp |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 12 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 18 AWG |
| Nema Rating | NEMA 6-20R |
| Nema Receptacle Configuration | Nema 6-20R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Length | 2.63" |
| Phase | 1 |
| Polarized | Yes |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl8469v.pdf |
| Resistance Properties | Dust Ignition Proof, Moisture Resistant, Weather Resistant |
| Standards | Csa Certified, Nema Wd-6, Ul Listed |
| Temp. Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Voltage | 250V |
| Voltage Rating | 250V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Hinged |
| Wiring Type | Hinged |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.87 |
| Ship length (cm) | 6.68 |
| Ship width (cm) | 3.18 |
| HS code | 8536694040 |
| Country of Origin | US |
Product Details:
- Valise Series, Hospital Grade,
Documentation:
Product Variants
| Product | Model | Current Rating | Voltage Rating | Wiring Style | Housing Color | Cord Size | Nema Rating | Height | Wiring Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL8319CT | 20A | 125V AC | Standard | Clear | 0.23" to 0.72" | NEMA 5-20R | 1.53" | Standard | €110.10 | |
 |
HBL8219C | 15A | 125V AC | Standard | Black, White | 0.23" to 0.72" | NEMA 5-15R | 1.53" | Standard | €76.78 | |
 |
HBL8319C | 20A | 125V AC | Standard | Black, White | 0.23" to 0.72" | NEMA 5-20R | 1.53" | Standard | €93.02 | |
 |

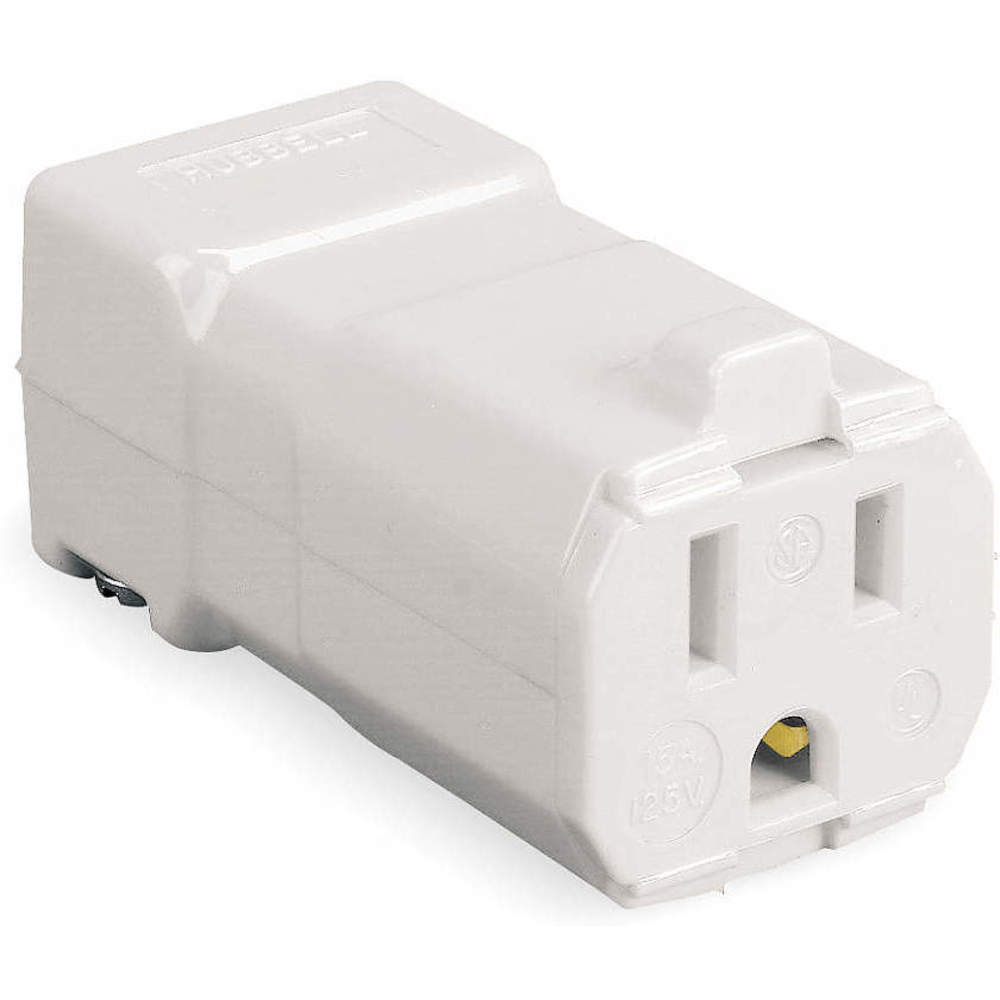

HBL8119V | 15A | 125V AC | Hinged | White | 0.3" to 0.66" | NEMA 5-15R | 1.13" | Hinged | €58.15 | |
 |

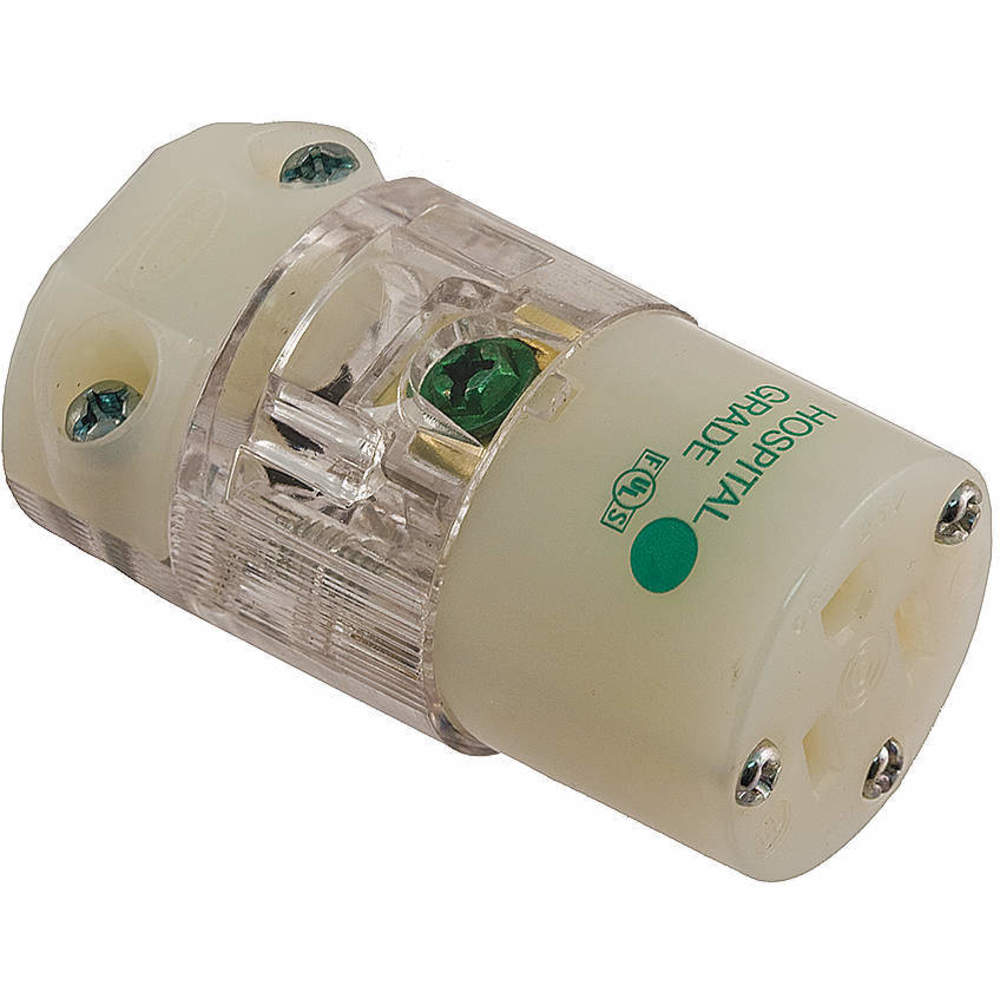

HBL8219CT | 15A | 125V AC | Standard | Clear | 0.23" to 0.72" | NEMA 5-15R | 1.53" | Standard | €88.45 |
