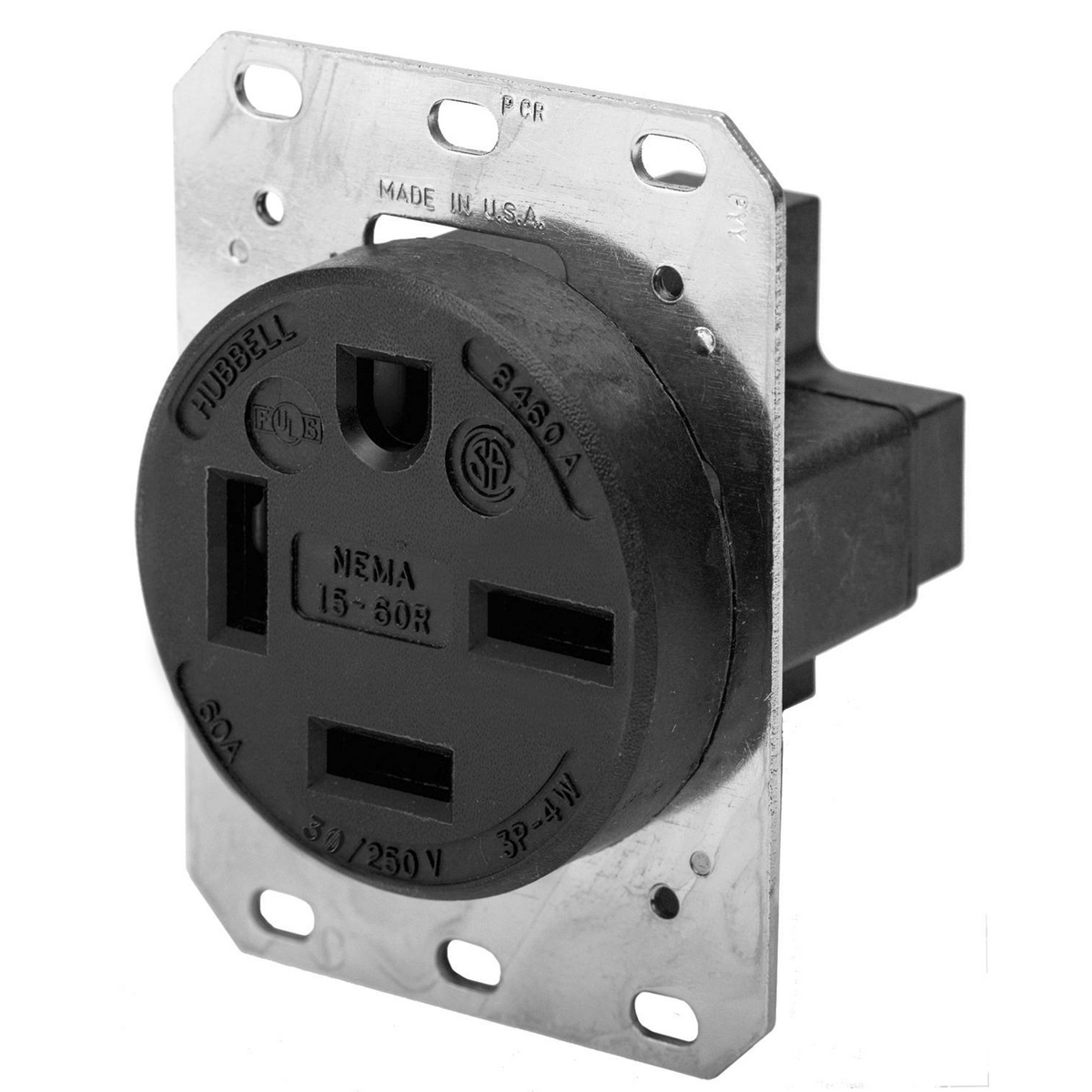

HUBBELL WIRING DEVICE-KELLEMS HBL8460A Receptacle 60a 250vac 15-60r 3p 4w 3ph
Item: AE7LGYModel: HBL8460ACross Ref: 5Z893
7 In Stock
Ships within 2 days via
10.00% off
€258.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flush Mount Receptacle |
| Afci | No |
| Amps | 60A |
| Application Environment | Industrial Environments |
| Color | Black |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 60A |
| Duty | Heavy Duty |
| Face Diameter | 2.4" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Horsepower Rating | 3 hp |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Ip Rating | IP20 |
| Material | Thermoplastic Polyester |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 6 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 12 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mount Hole Center-to-center Width | 1.8" |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Receptacle Configuration | 15-60R |
| Number Of Gangs | 1 |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Outlet Type | Single |
| Overall Depth | 2.4" |
| Phase | 3 |
| Polarized | Yes |
| Power Indicator | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl8460a.pdf |
| Receptacle Type | Single |
| Signal & Power Protection | Standard Protection |
| Standards | Csa Certified, Nema Wd-6, Ul E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 250V AC |
| Weather Resistant | No |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 4.6 |
| HS code | 8536490080 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Current Rating | Voltage Rating | Phase | Number Of Poles | Number Of Wires | Material | Nema Receptacle Configuration | Grounding | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL7301A | 60A | 120/208V AC | 3 | 4 | 4 | Brass, Thermoplastic | 18-60R | Non Grounded | €300.14 | |
 |
HBL7962 | 50A | 125/250V AC | 1 | 3 | 3 | Thermoplastic | 10-50R | Non Grounded | €75.61 | |
 |
HBL9350 | 30A | 125/250V AC | 1 | 3 | 3 | Phenolic | 10-30R | Grounded | €63.37 | |
 |
HBL9430A | 30A | 125/250V AC | 1 | 3 | 4 | Thermoplastic Polyester | 14-30R | Grounded | €207.38 | |
 |
HBL9450A | 50A | 125/250V AC | 1 | 3 | 4 | Composite, Thermoplastic | 14-50R | Grounded | €258.63 | |
 |
HBL9460A | 60A | 125/250V AC | 1 | 3 | 4 | Thermoplastic Polyester | 14-60R | Grounded | €317.14 | |
 |
HBL8430A | 30A | 250V AC | 3 | 3 | 4 | Composite, Thermoplastic | 15-30R | Grounded | €194.94 |
