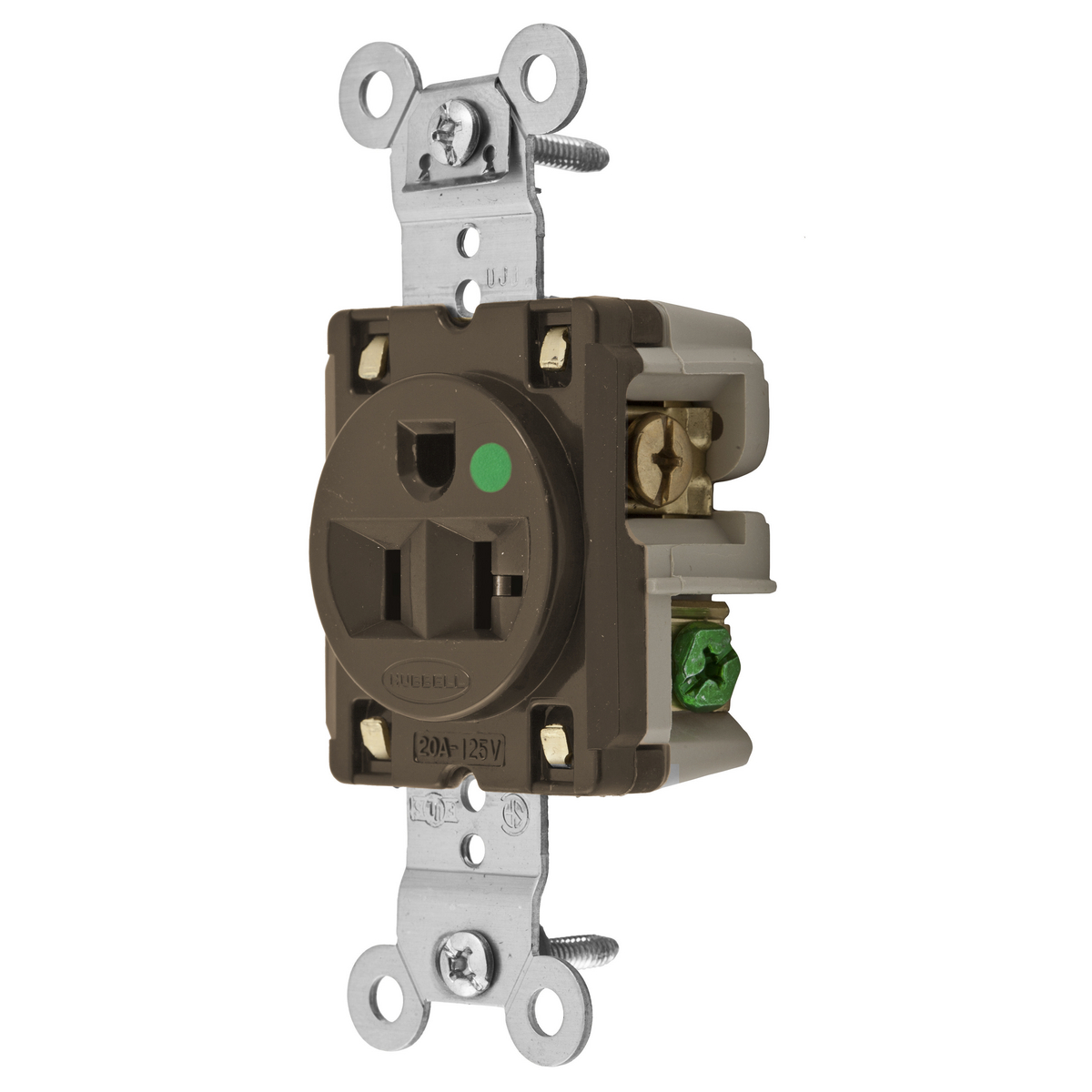

HUBBELL WIRING DEVICE-KELLEMS HBL8310 Receptacle, Single, 2-Pole, 3-Wire Grounding, 20A, 125V, Brown
Item: AE7LEYModel: HBL8310Cross Ref: 5Z822
7 In Stock
Ships within 2 days via
10.00% off
€53.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 20A |
| Application Environment | Heavy Use Hospital Grade |
| Color | Brown |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired Screw Terminals |
| Cover Type | No Cover |
| Current Rating | 20A |
| Dielectric Strength | Withstands 2,000V minimum |
| Duty | Extra Heavy |
| Face Plate Height | 1.9" |
| Gfci | No |
| Grade | Hospital Grade Fed. Spec. |
| Grounding | Grounded |
| Height | 1.19" |
| Housing Color | Brown |
| Includes | Grounding Clip, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Includes Mounting Hardware | Yes |
| Ip Rating | IP20 |
| Length | 3 7/25" |
| Material | Nylon |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Single |
| Phase | 1 |
| Polarized | Yes |
| Power Indicator | No |
| Prod. Description | Specification Grade |
| Product Datasheet | hubbell-wiring-device-kellems-hbl8310.pdf |
| Receptacle Type | Single |
| Resistance Property | General Purpose |
| Standards | Csa Certified C22.2 No. 42 File 285, Federal Specification W-C-596, Nema Wd-6, Ul 498 File E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-0, V-2, 5 Va |
| Voltage | 125V |
| Voltage Rating | 125V AC |
| Wattage | 2500 W |
| Weather Resistant | No |
| Width | 1.63" |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 12 AWG to 10 AWG |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 4.14 |
| HS code | 8536490080 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Current Rating | Housing Color | Wire Size | Color | Nema Rating | Wattage | Amps | Max. Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL8210GY | 15A | Gray | 14 AWG to 10 AWG | Gray | NEMA 5-15R | 1875 W | 15A | 1/2 hp | €64.12 | |
 |
HBL8210W | 15A | White | 14 AWG to 10 AWG | White | NEMA 5-15R | 1875 W | 15A | 1/2 hp | €70.70 | |
 |
HBL8310GY | 20A | Gray | 12 AWG to 10 AWG | Gray | NEMA 5-20R | 2500 W | 20A | - | €65.60 | |
 |
HBL8210I | 15A | Ivory | 14 AWG to 10 AWG | Ivory | NEMA 5-15R | 1875 W | 15A | 1/2 hp | €66.93 | |
 |
HBL8310I | 20A | Ivory | 12 AWG to 10 AWG | Ivory | NEMA 5-20R | 2500 W | 20A | - | €63.33 | |
 |
HBL8310R | 20A | Red | 12 AWG to 10 AWG | Red | NEMA 5-20R | 2500 W | 20A | - | €66.52 | |
 |
HBL8210R | 15A | Red | 14 AWG to 10 AWG | Red | NEMA 5-15R | 1875 W | 15A | 1/2 hp | €67.59 |
