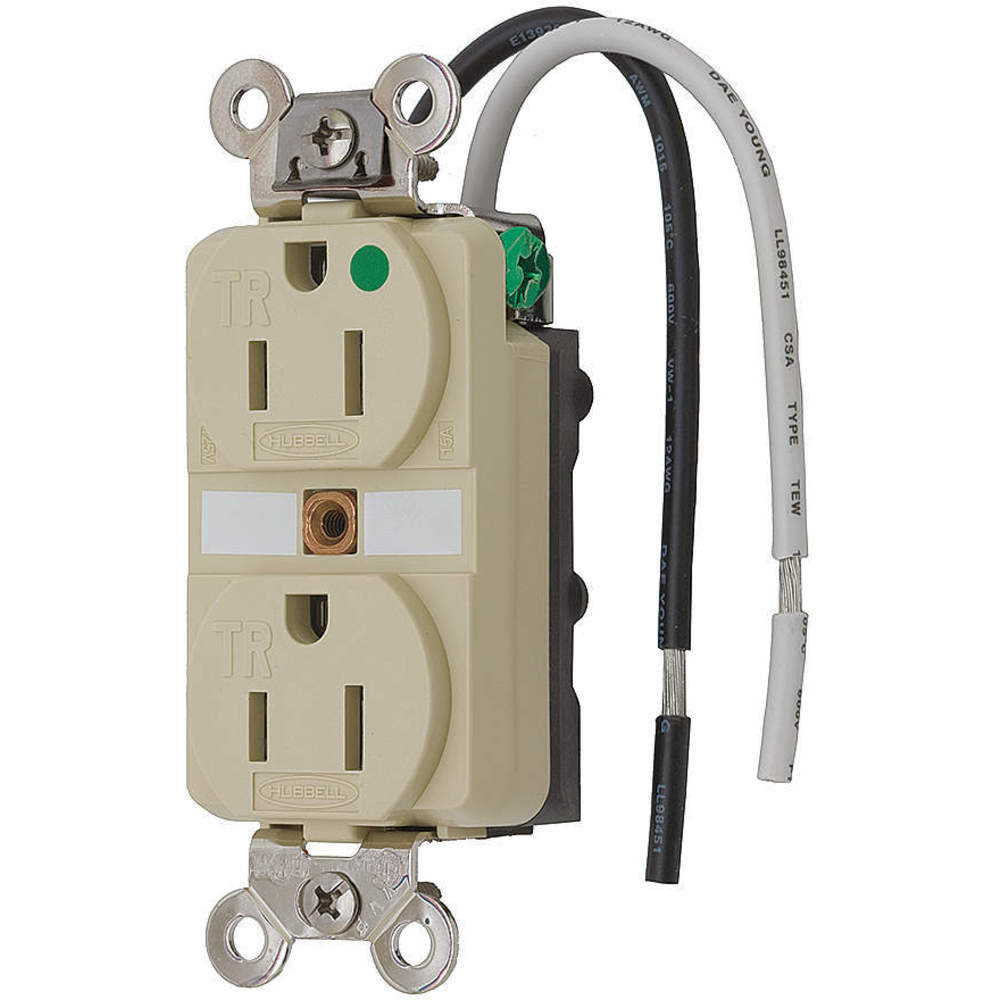

HUBBELL WIRING DEVICE-KELLEMS HBL8200SGIA Receptacle, Duplex, Tamper Resistant, 2-Pole, 3-Wire Grounding, 15A, 125V, Ivory
Item: AE7LFFModel: HBL8200SGIACross Ref: 5Z829
7 In Stock
Ships within 2 days via
10.00% off
€94.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Application Environment | Heavy Use Hospital Grade |
| Color | Ivory |
| Connection Orientation | Straight |
| Connectivity | Wire Leads |
| Cover Type | No Cover |
| Current Rating | 15A |
| Dielectric Strength | Withstands 2,000V minimum |
| Duty | Extra Heavy |
| Face Plate Height | 2.8" |
| Gfci | No |
| Grade | Hospital Grade Fed. Spec. |
| Grounding | Grounded |
| Height | 1.27" |
| Housing Color | Ivory |
| Includes | Grounding Clip, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Includes Mounting Hardware | Yes |
| Ip Rating | IP20 |
| Material | Thermoplastic |
| Max. Hp | 1/2 hp |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Polarized | Yes |
| Prod. Description | Tamper Resistant |
| Product Datasheet | hubbell-wiring-device-kellems-hbl8200sgia.pdf |
| Receptacle Type | Duplex |
| Resistance Property | General Purpose |
| Special Resistance Properties | Tamper Resistant |
| Standards | Csa Certified C22.2 No. 42 File 285, Federal Specification W-C-596, Nema Wd-6, Ul 498 File E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-0, 5 VA |
| Voltage | 125V |
| Voltage Rating | 125V AC |
| Wattage | 1875 W |
| Weather Resistant | No |
| Width | 1.65" |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 12 AWG to 10 AWG |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 3.23 |
| Ship length (cm) | 8.36 |
| Ship width (cm) | 4.19 |
| HS code | 8536698000 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Current Rating | Voltage Rating | Housing Color | Grade | Wire Size | Color | Nema Rating | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL8200 | 15A | 125V AC | Brown | Hospital Grade Fed. Spec. | 14 AWG to 10 AWG | Brown | NEMA 5-15R | Thermoplastic | €66.27 | |
 |
HBL8300 | - | - | - | - | 12 AWG to 10 AWG | Brown | NEMA 5-20R | Thermoplastic | €81.22 | |
 |
HBL8200ILGY | 15A | 125V AC | Gray | Hospital Grade Fed. Spec. | 14 AWG to 10 AWG | Gray | NEMA 5-15R | Polycarbonate | €105.35 | |
 |
HBL8200ILW | 15A | 125V AC | White | Hospital Grade Fed. Spec. | 14 AWG to 10 AWG | White | NEMA 5-15R | Polycarbonate | €112.11 | |
 |
HBL8300ILGY | 20A | 125V AC | Gray | Hospital Grade Fed. Spec. | 12 AWG to 10 AWG | Gray | NEMA 5-20R | Polycarbonate | €103.40 | |
 |
HBL8300ILW | 20A | 125V AC | White | Hospital Grade Fed. Spec. | 12 AWG to 10 AWG | White | NEMA 5-20R | Polycarbonate | €118.66 | |
 |
IG8200R | 15A | 125V AC | Red | Hospital Grade Fed. Spec. | 14 AWG to 10 AWG | Red | NEMA 5-15R | Nylon | €77.48 |
