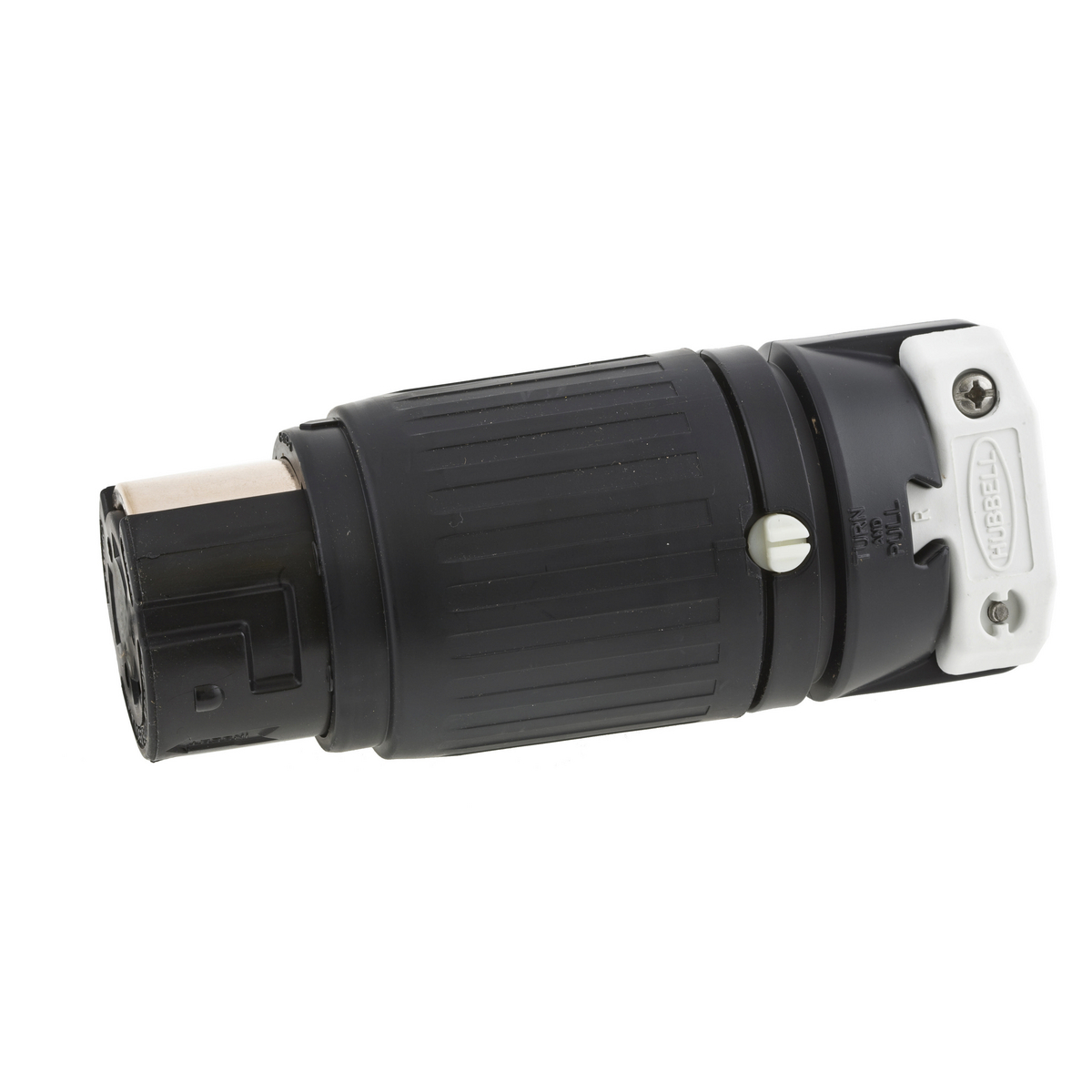

HUBBELL WIRING DEVICE-KELLEMS HBL7764C Female Connector, 50A, 250VDC/600VAC, 3-Pole, 4-Wire Grounding
Item: AC8QEKModel: HBL7764CCross Ref: 3D274
7 In Stock
Ships within 2 days via
10.00% off
€315.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 50A |
| Antimicrobial | No |
| Cable Range | 0.83" to 1.25" |
| Cap Type | No Cap, Cover |
| Color | Black, White |
| Connection Orientation | Straight |
| Connectivity | Pressure Terminal Screws |
| Contact Material | Brass |
| Cord Dia. Range | .830"-1.250" |
| Cord Size | 0.75" to 1.125" |
| Current Rating | 50A |
| Dielectric Strength | Withstands 2,000V minimum |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 1.25" |
| For Minimum Cable Diameter | 0.83" |
| Grade | Industrial, Commercial |
| Grounding | Grounded |
| Height | 6 1/2" |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Insulation | Insulated Body |
| Ip Rating | IP20 |
| Length | 2 14/25" |
| Market | Industrial |
| Material | Nylon |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 4 AWG |
| Midget Locking | No |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 8 AWG |
| Mounting | Cord Mounted |
| Nema Configuration | Non-NEMA |
| Nema Receptacle Configuration | Non-NEMA |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Outside Diameter | 2.563" |
| Overall Length | 2.56" |
| Phase | 3 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl7764c.pdf |
| Resistance Properties | Heat Resistant |
| Shrouded | No |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 250V DC/600V AC |
| Width | 2 14/25" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 8 AWG to 4 AWG |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 6.5 |
| Ship width (cm) | 6.5 |
| HS code | 8536698000 |
| Country of Origin | US |
