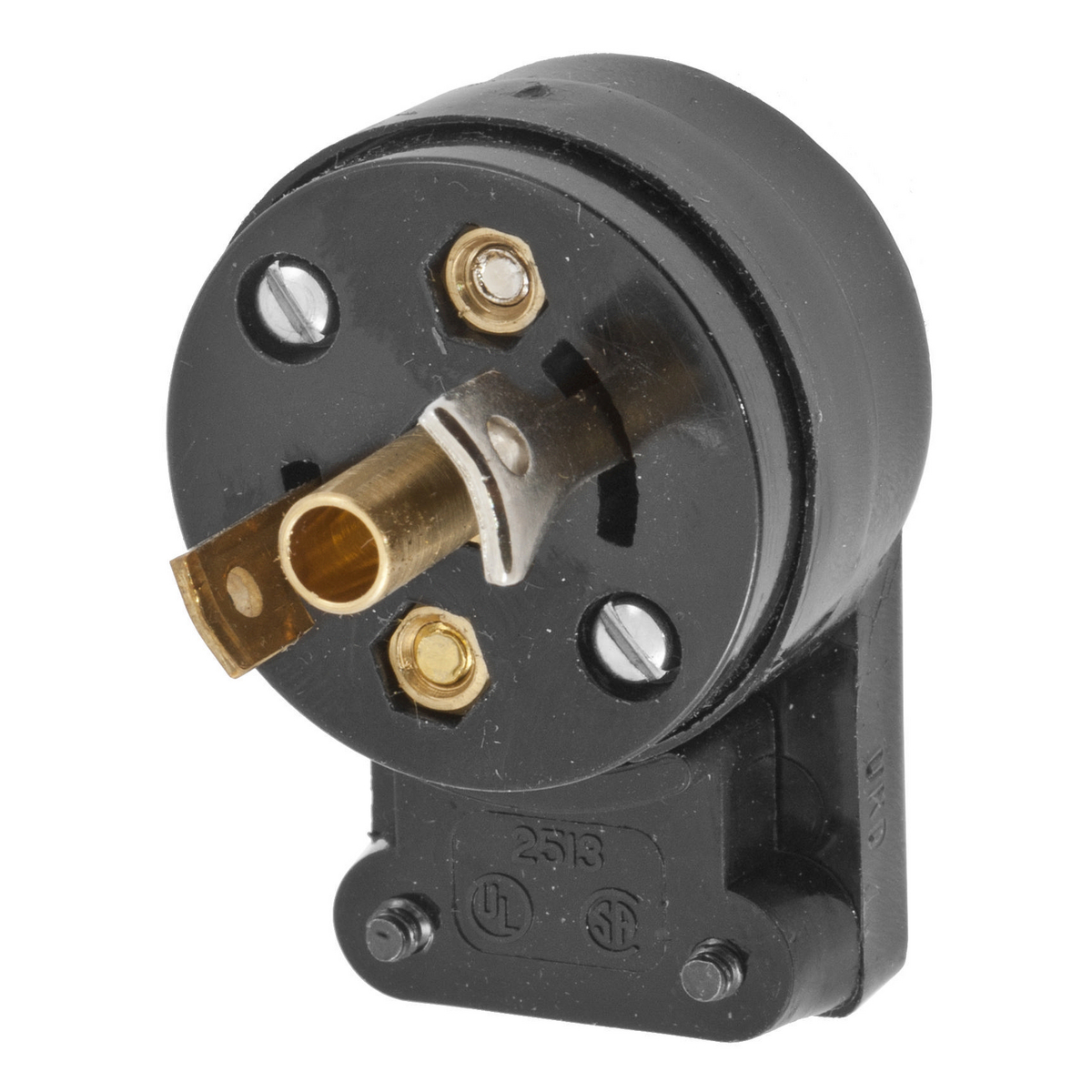

HUBBELL WIRING DEVICE-KELLEMS HBL7570 Male Plug, 15A, 125VAC, 2-Pole, Screw Terminal, Black, Angled
Item: AC8QEBModel: HBL7570Cross Ref: 3D266
7 In Stock
Ships within 2 days via
10.00% off
€47.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Amps | 15A |
| Blade Material | Brass |
| Body Length | 1.68" |
| Body Material | Nylon |
| Cable Range | 0.335" to 0.421" |
| Color | Black |
| Connection Orientation | Straight |
| Connectivity | Pressure Terminal Screws |
| Cord Dia. Range | 0.335"-0.421" |
| Cord Size | 0.335" to 0.421" |
| Current Rating | 15A |
| Dielectric Strength | Withstands 2,000V minimum |
| Face Diameter | 1.17" |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 0.421" |
| For Minimum Cable Diameter | 0.335" |
| Grounding | Grounded |
| Height | 1.33" |
| Housing Color | Black |
| Ip Rating | IP20 |
| Length | 1 17/25" |
| Market | Commercial, Industrial |
| Material | Nylon |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 14 AWG |
| Midget Locking | Yes |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 18 AWG |
| Nema Plug Configuration | ML2-15P |
| Nema Rating | NEMA ML-2P |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Length | 1.68" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl7570.pdf |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Shrouded | No |
| Ul 94 Flammability Rating | HB |
| Voltage | 125V |
| Voltage Rating | 125V AC |
| Wattage | 1875 W |
| Width | 1.17" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 18 AWG to 14 AWG |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 3.38 |
| Ship length (cm) | 4.27 |
| Ship width (cm) | 2.97 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Voltage Rating | Height | Wattage | Cable Range | Cord Size | Nema Plug Configuration | For Maximum Cable Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

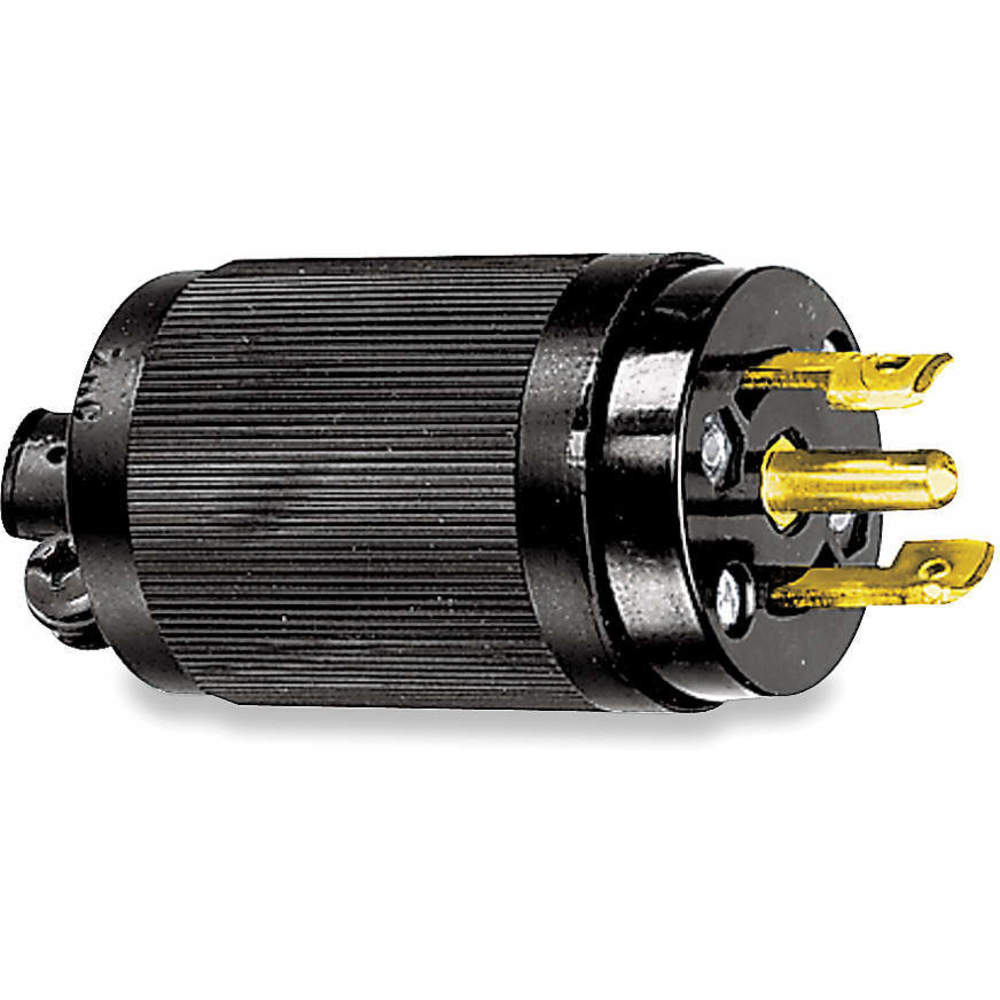

HBL7485 | 3 | 125/250V AC | 2.45" | 3750 W | 0.3" to 0.43" | 0.281" to 0.421" | ML3-15P | 0.43" | €44.28 | |
 |

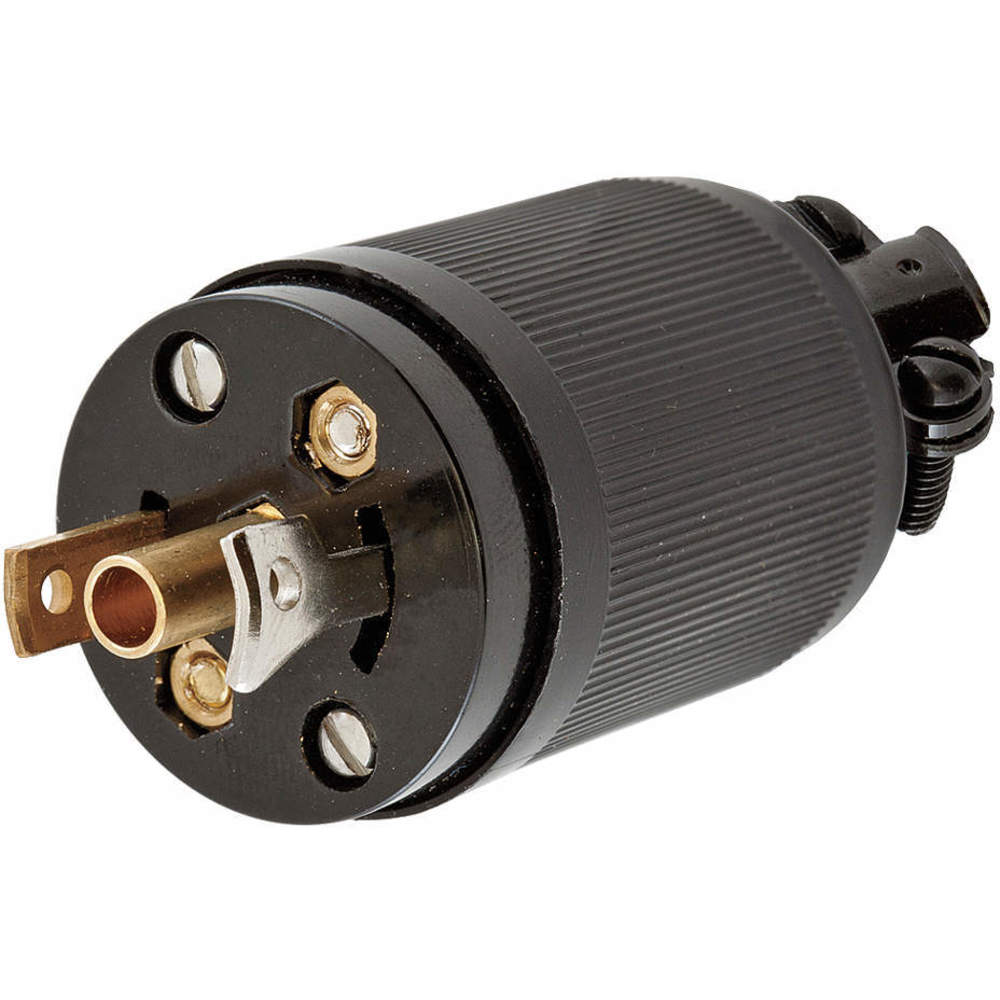

HBL7594 | 2 | 125V AC | 2.45" | 1875 W | 0.3" to 0.43" | 0.281" to 0.421" | ML2-15P | 0.43" | €50.79 | |
 |

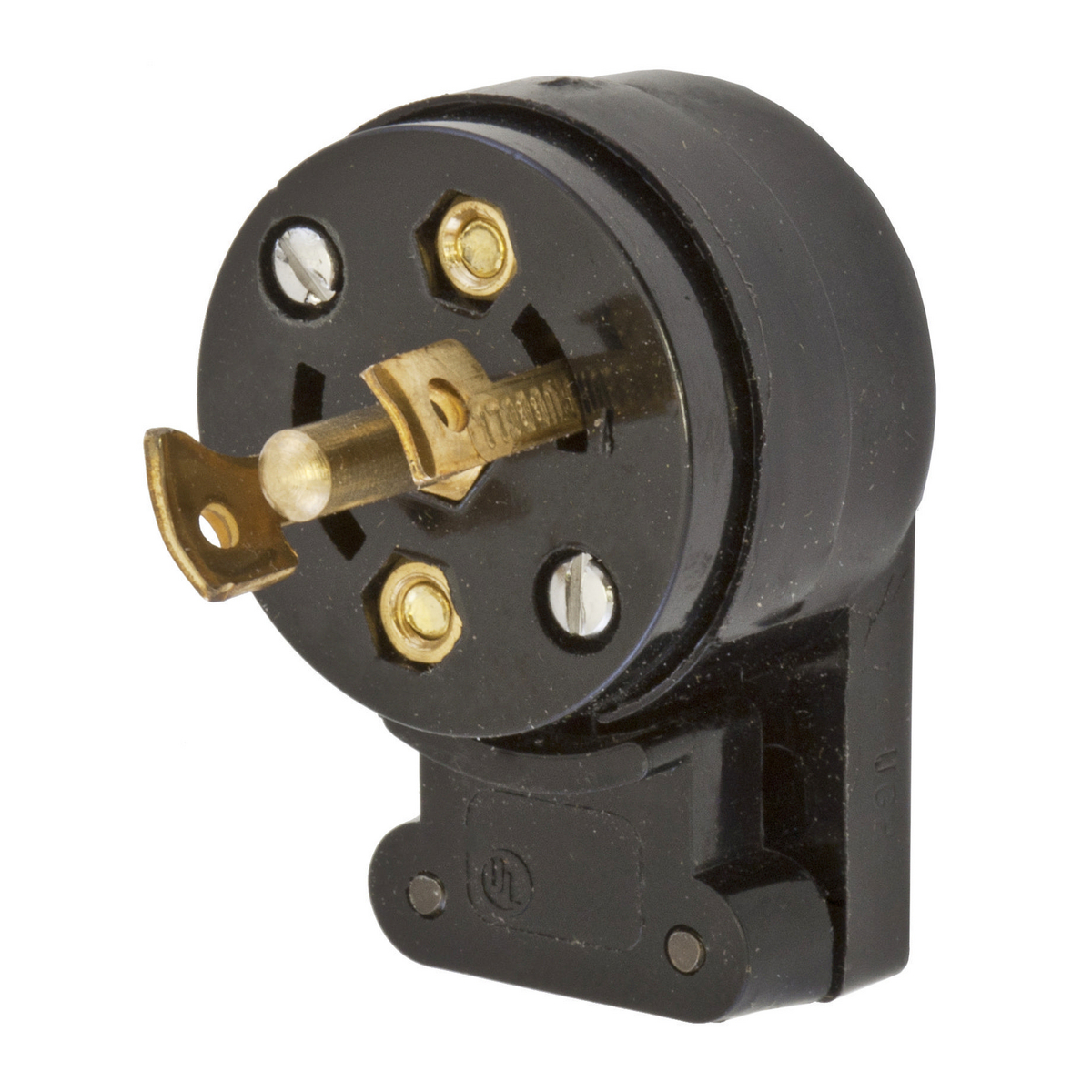

HBL7432 | 3 | - | 1 8/25" | 3750 W | 0.335" to 0.421" | - | - | - | €56.03 |
