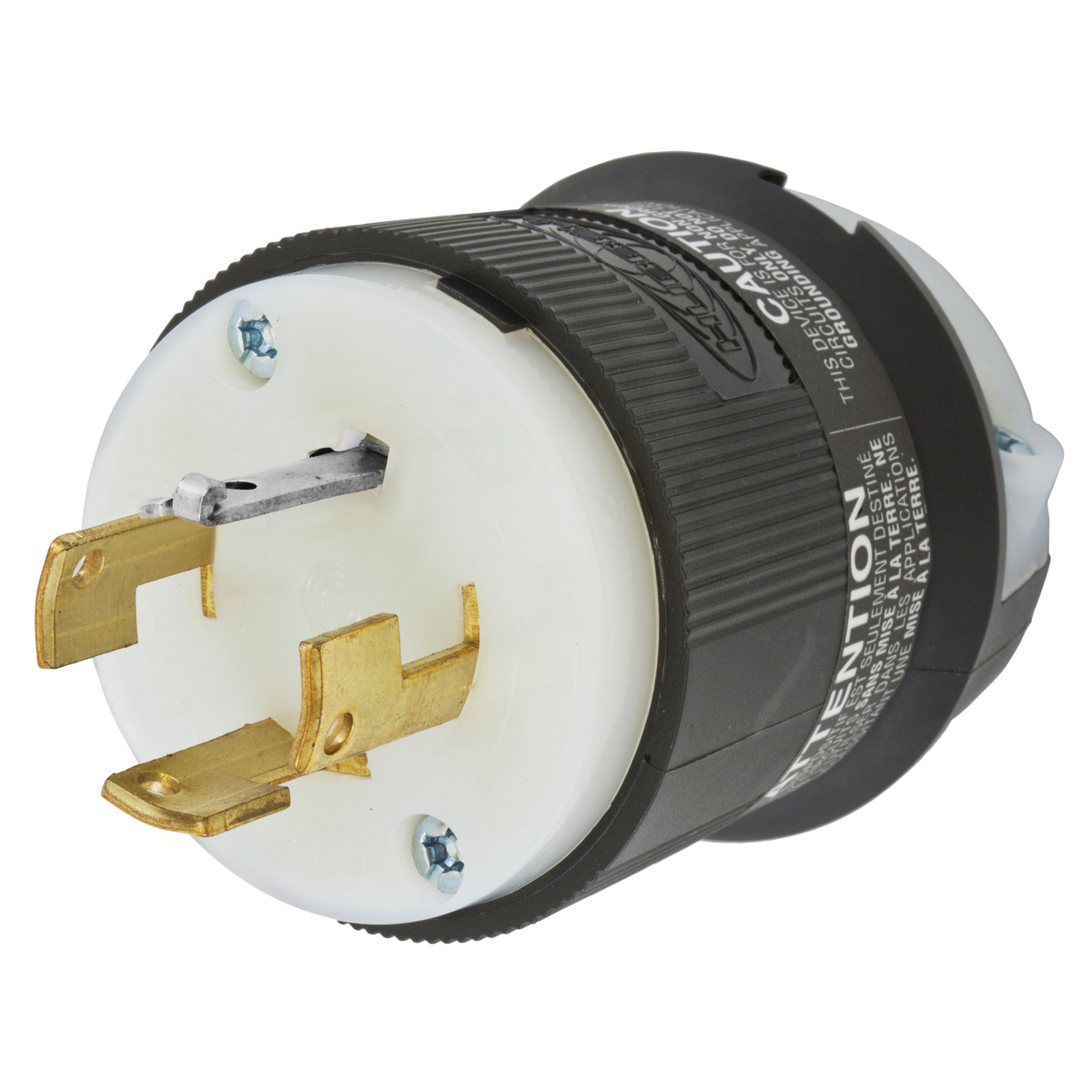

HUBBELL WIRING DEVICE-KELLEMS HBL7411C Male Plug, 20A, 3-Phase, 120/208VAC, 4-Pole, 4-Wire Non-Grounding
Item: AE7ZHXModel: HBL7411CCross Ref: 6C613
7 In Stock
Ships within 2 days via
5.00% off
€94.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Anti Microbial | No |
| Blade Material | Brass |
| Body Length | 2.33" |
| Cable Range | 0.35" to 1.15" |
| Color | Black, White |
| Connection Orientation | Straight |
| Connectivity | Screw Terminals |
| Cord Dia. Range | 0.350"-1.150" |
| Cord Size | 0.35" to 1.15" |
| Dielectric Strength | Withstands 2,000V minimum |
| Face Dia. | 2.21" |
| For Environment | Dry |
| For Location | Indoor |
| For Max. Cable Dia. | 1.15" |
| For Min. Cable Dia. | 0.35" |
| Grade | Grade Industrial |
| Grounding | Non Grounded |
| Height | 2 3/4" |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Ip Rating | IP20 |
| Length | 2.33" |
| Market | Industrial |
| Material | Nylon |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 16 AWG |
| Mounting | Cord Mounted |
| Nema Configuration | Non NEMA |
| Nema Plug Configuration | Non NEMA |
| No. Of Blades | 4 |
| No. Of Poles | 4 |
| No. Of Wires | 4 |
| Outside Dia. | 2.26" |
| Overall Length | 2.33" |
| Phase | 3 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl7411c.pdf |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Shrouded | No |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | HB |
| Voltage | 120/208V AC |
| Wattage | 5000 W |
| Watts | 5000 W |
| Width | 2.33" |
| Wire Connection Type | Screw Terminal |
| Wire Size | 16 AWG to 8 AWG |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 5.74 |
| Ship length (cm) | 5.92 |
| Ship width (cm) | 5.74 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Phase | Color | Amps | Material | Wire Size | Voltage | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL4720CBK | 2 | 1 | Black | 15A | Nylon | 18 AWG to 10 AWG | 125V AC | Non Shrouded | €42.38 | |
 |
HBL2311BK | 2 | 1 | Black | 20A | Nylon | 16 AWG to 8 AWG | 125V AC | Non Shrouded | €49.30 | |
 |
HBL2611BK | 2 | 1 | Black | 30A | Nylon | 16 AWG to 8 AWG | 125V AC | Non Shrouded | €75.97 | |
 |
HBL2321BK | 2 | 1 | Black | 20A | Nylon | 16 AWG to 8 AWG | 250V AC | Non Shrouded | €45.37 | |
 |
HBL2621BK | 2 | 1 | Black | 30A | Nylon | 16 AWG to 8 AWG | 250V AC | Non Shrouded | €83.47 | |
 |
HBL2511BK | 4 | 3 | Black | 20A | Nylon | 16 AWG to 8 AWG | 120/208V AC | Non Shrouded | €90.22 | |
 |
HBL2811BK | 4 | 3 | Black | 30A | Nylon | 16 AWG to 8 AWG | 120/208V AC | Non Shrouded | €112.16 |
