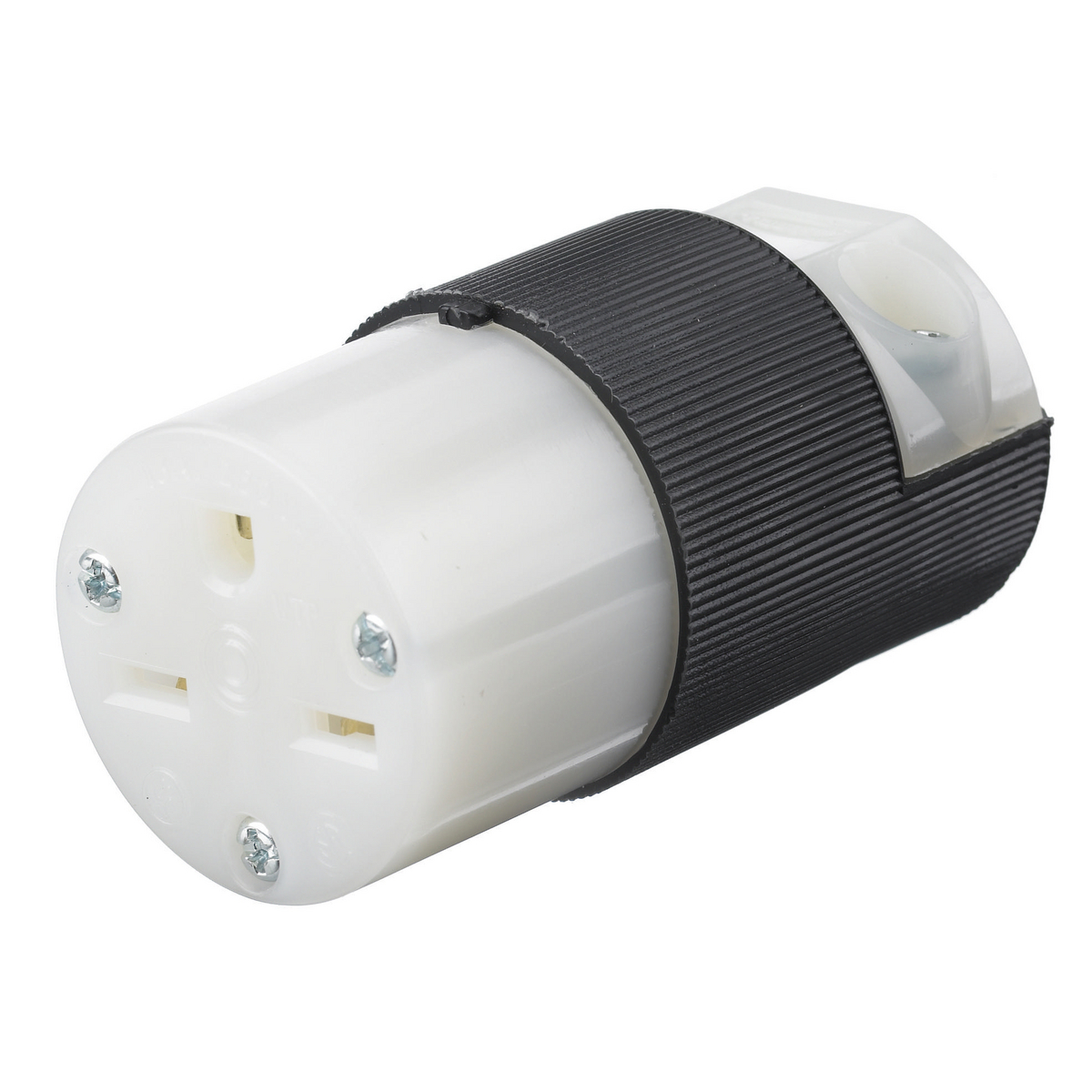

HUBBELL WIRING DEVICE-KELLEMS HBL5669C Female Connector, Straight, 15A 250V, 6-15R, Black And White
Item: AB4CXMModel: HBL5669CCross Ref: 1X996
7 In Stock
Ships within 2 days via
10.00% off
€72.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connector |
| Amps | 15A |
| Antimicrobial | No |
| Cap Type | No Cap, Cover |
| Color | Black, White |
| Conductor | #14 AWG to #12 AWG |
| Conductor Range | #14 AWG to #12 AWG |
| Connection Orientation | Straight |
| Connectivity | Screw Terminals |
| Contact Material | Brass |
| Cord Dia. Range | 0.230"-0.720" |
| Cord Size | #18 AWG to #10 AWG , 0.23" to 0.72" |
| Current Rating | 15A |
| Diameter | #14 AWG to #12 AWG |
| Dielectric Strength | Withstands 2,000V minimum |
| For Environment | Dry |
| For Location | Indoor |
| Grade | Federal Specification |
| Grounding | Grounded |
| Height | 1.53" |
| Housing Color | Black, White |
| Housing Material | Thermoplastic Elastomer |
| Hp | 1 1/2 hp |
| Insulation | Insulated Body |
| Insulation Material | Nylon |
| Ip Rating | IP20 |
| Length | 2.78" |
| Material | Nylon |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 18 AWG |
| Nema Rating | NEMA 6-15R |
| Nema Receptacle Configuration | NEMA 6-15R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Length | 2.78" |
| Phase | 1 |
| Polarized | Yes |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl5669c.pdf |
| Resistance Properties | Dust Ignition Proof, Moisture Resistant, Weather Resistant |
| Standards | Csa Certified, Nema Wd-6, Ul Listed |
| Temp. Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Voltage | 250V |
| Voltage Rating | 250V AC |
| Wattage | 3750 W |
| Width | 1.53" |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.89 |
| Ship length (cm) | 7.06 |
| Ship width (cm) | 3.89 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
- Insulgrip Heavy Duty
Documentation:
Product Variants
| Product | Model | Current Rating | Voltage Rating | Wiring Style | Housing Color | Grade | Cord Size | Nema Rating | Conductor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

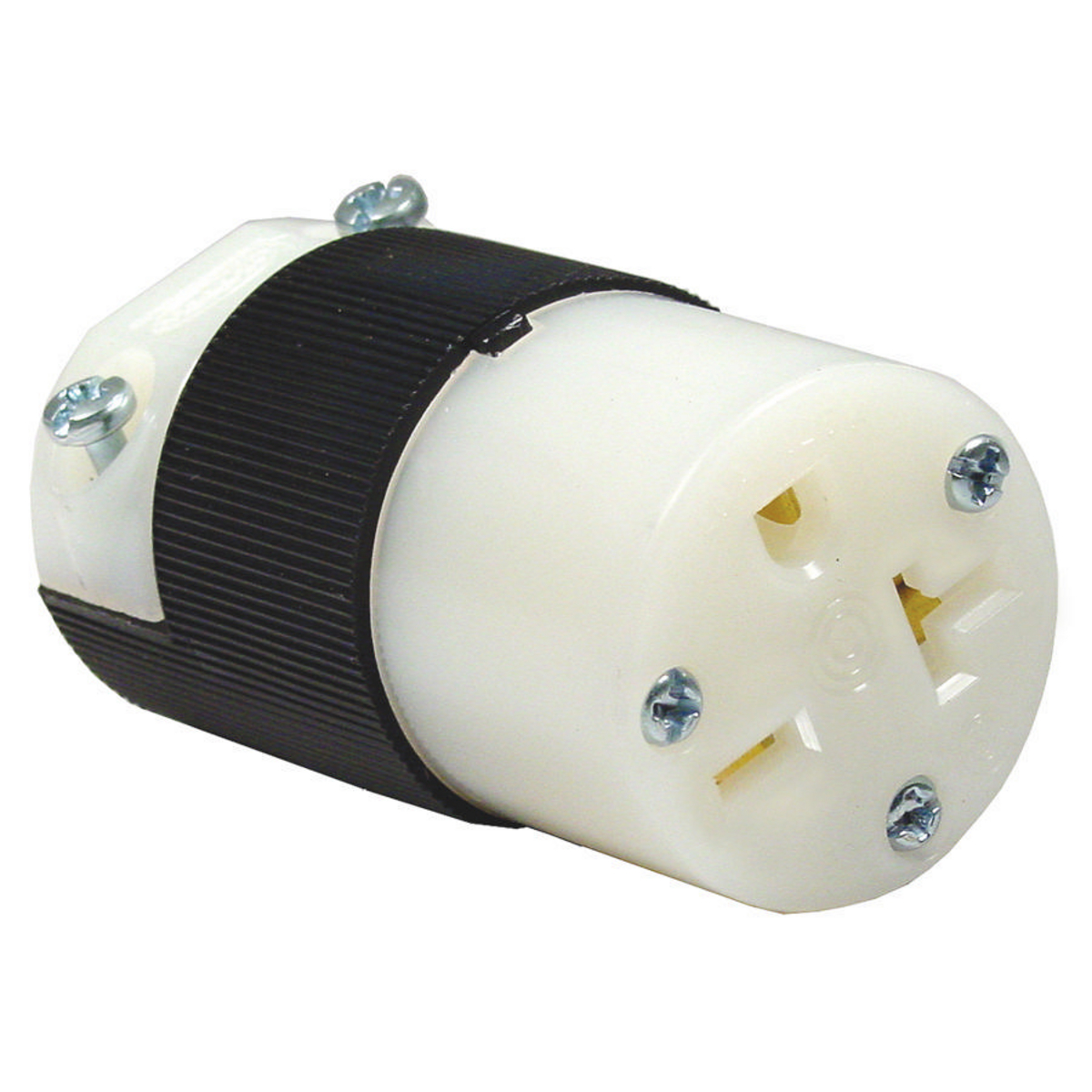

HBL5469C | 20A | 250V AC | Standard | Black, White | Federal Specification | 0.23" to 0.72" | NEMA 6-20R | #14 AWG to #12 AWG | €91.93 | |
 |

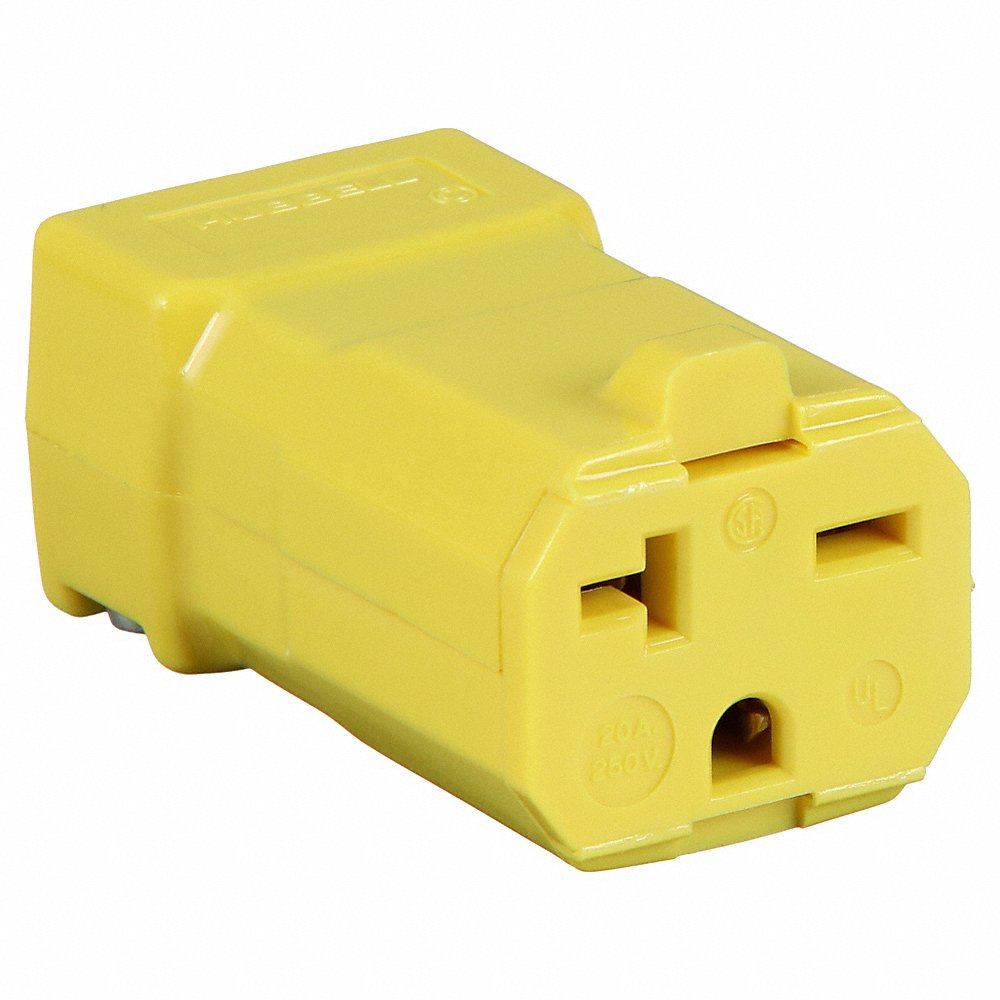

HBL5469VY | 20A | 250V AC | Hinged | Yellow | General Use | 0.22" to 0.66" | NEMA 6-20R | #14 AWG to #12 AWG | €61.07 | |
 |
HBL5269C | 15A | 125V AC | Standard | Black, White | Federal Specification | 0.23" to 0.72" | NEMA 5-15R | #18 AWG to #10 AWG | €63.96 | |
 |
HBL5369C | 20A | 125V AC | Standard | Black, White | Federal Specification | 0.23" to 0.72" | NEMA 5-20R | #18 AWG to #10 AWG | €87.38 |
