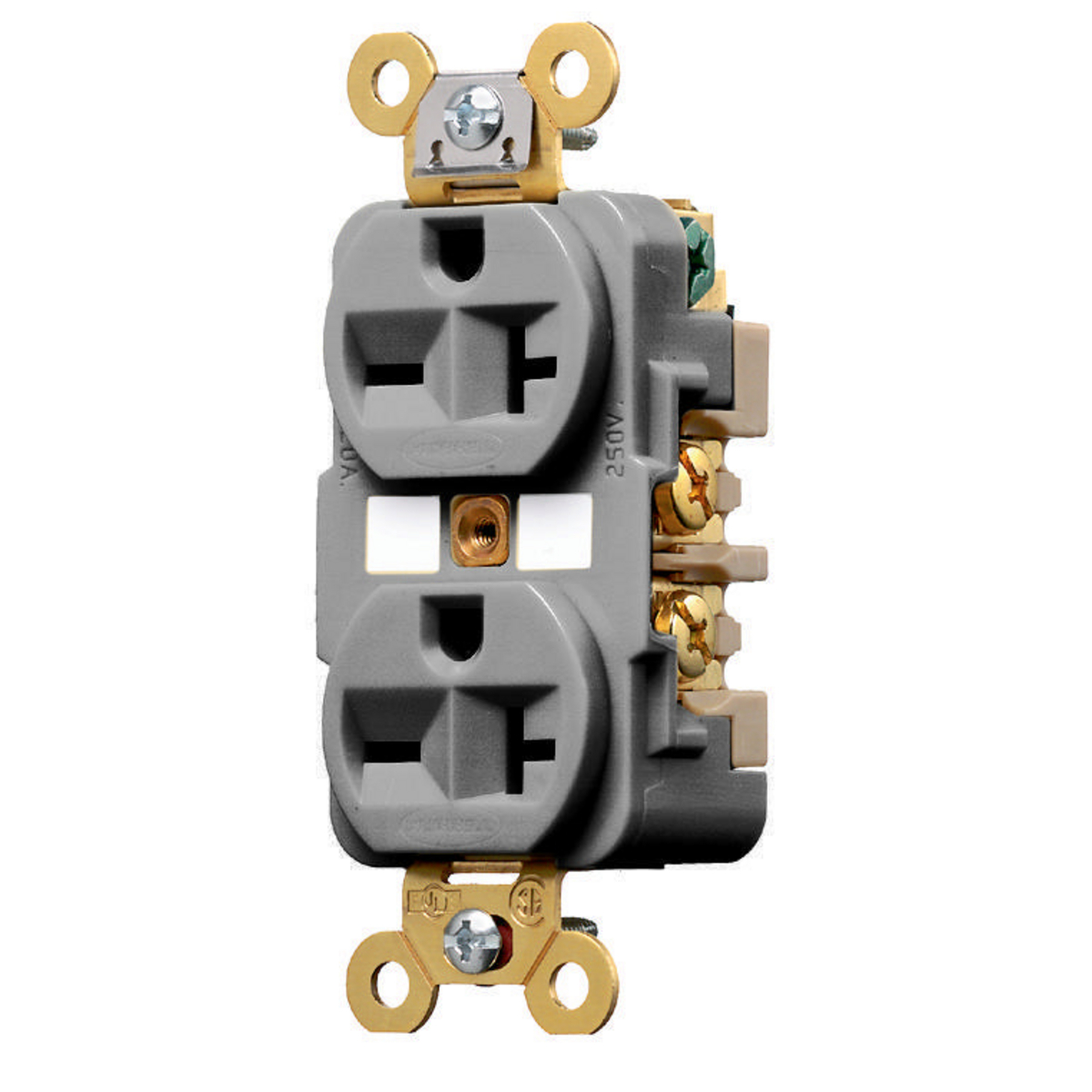

HUBBELL WIRING DEVICE-KELLEMS HBL5462GY Straight Receptacle, Duplex, 20A 250V, 6-20R, Gray
Item: AC2MJFModel: HBL5462GYCross Ref: 2LBW5
7 In Stock
Ships within 2 days via
10.00% off
€90.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 20A |
| Application Environment | Industrial Environments |
| Color | Gray |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired Screw Terminals |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Dielectric Strength | Withstands 2,000V minimum |
| Duty | Heavy Duty |
| Face Plate Height | 2.7" |
| Face Plate Width | 1.7" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Height | 1.19" |
| Horsepower Rating | 2 hp |
| Housing Color | Gray |
| Housing Material | Nylon |
| Includes | Grounding Clip, Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Length | 3 7/25" |
| Material | Nylon, Reinforced PET |
| Max. Hp | 2 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 6-20R |
| Nema Receptacle Configuration | Nema 6-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Duplex |
| Overall Depth | 1.2" |
| Phase | 1 |
| Polarized | Yes |
| Power Indicator | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl5462gy.pdf |
| Receptacle Type | Duplex |
| Signal & Power Protection | Standard Protection |
| Special Resistance Properties | Impact Resistant |
| Standards | Csa Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, Nema Wd-6, Ul 498 File E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-0, V-2 |
| Voltage | 250V |
| Voltage Rating | 250V AC |
| Wattage | 5000 W |
| Weather Resistant | No |
| Width | 1.65" |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 14 AWG to 10 AWG |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 4.19 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
- 2-Pole 3-Wire Grounding
Documentation:
Product Variants
| Product | Model | Voltage Rating | Housing Color | Wire Size | Color | Nema Rating | Wattage | Material | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL5462 | 250V AC | Brown | 14 AWG to 10 AWG | Brown | NEMA 6-20R | 5000 W | Nylon, Reinforced PET | Nylon | €92.51 | |
 |
HBL5362BKWR | 125V AC | Black | 12 AWG to 10 AWG | Black | NEMA 5-20R | 2500 W | Nylon, Reinforced PET | Nylon, Reinforced PET | €72.31 | |
 |
HBL5362GYWR | 125V AC | Gray | 12 AWG to 10 AWG | Gray | NEMA 5-20R | 2500 W | Nylon, Reinforced PET | Nylon, Reinforced PET | €78.05 | |
 |
HBL5362IWR | 125V AC | Ivory | 12 AWG to 10 AWG | Ivory | NEMA 5-20R | 2500 W | Nylon, Reinforced PET | Nylon, Reinforced PET | €70.70 | |
 |
HBL5362RWR | 125V AC | Red | 12 AWG to 10 AWG | Red | NEMA 5-20R | 2500 W | Nylon, Reinforced PET | Nylon, Reinforced PET | €72.31 | |
 |
HBL5362WR | 125V AC | Brown | 12 AWG to 10 AWG | Brown | NEMA 5-20R | 2500 W | Nylon, Reinforced PET | Nylon, Reinforced PET | €79.19 | |
 |
HBL5362WWR | 125V AC | White | 12 AWG to 10 AWG | White | NEMA 5-20R | 2500 W | Nylon, Reinforced PET | Nylon, Reinforced PET | €79.36 |
