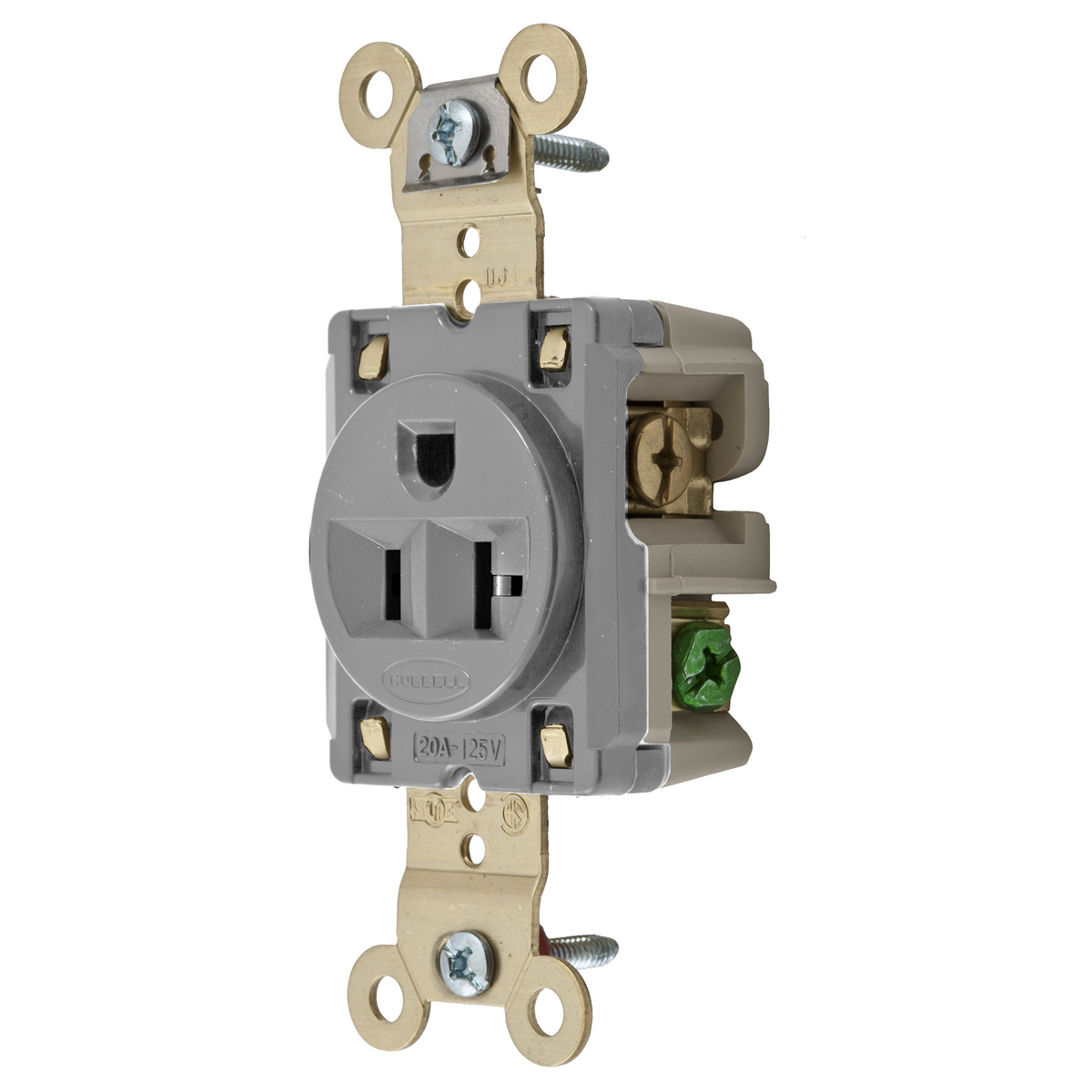

HUBBELL WIRING DEVICE-KELLEMS HBL5361GRY Straight Receptacle, 20A 125V, 5-20R, Gray

Item: AC3VMUModel: HBL5361GRYCross Ref: 2WMT3

7 In Stock

Ships within 2 days via

~~€71.39~~

5.00% off

€67.82 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Receptacle
Afci	No
Amps	20A
Application Environment	Heavy Use Industrial/Harsh Environments
Color	Gray
Connection Orientation	Straight
Connectivity	Back And Side Wired Screw Terminals
Contact Material	Nickel-Plated Brass
Cover Type	No Cover
Dielectric Strength	Withstands 2,000V minimum
Duty	Extra Heavy
Face Plate Height	1.9"
Face Plate Width	1 3/5"
Gfci	No
Grade	Federal Specification
Grounding	Grounded
Height	1.19"
Housing Color	Gray
Housing Material	Nylon (Face)
Hp	1 hp
Included	Grounding Clip, Mounting Hardware, Wall Plate Or Weatherproof Cover
Included Mounting Hardware	Yes
Length	3 7/25"
Material	Nylon, Reinforced PET
Max. Operating Temp.	167°F
Max. Wire Size	10 AWG
Min. Operating Temp.	-40°F
Min. Wire Size	12 AWG
Mount Hole Center To Center Height	3.3"
Mounting Type	Flush
Nema Enclosure Rating	1
Nema Rating	NEMA 5-20R
Nema Receptacle Configuration	NEMA 5-20R
No. Of Gangs	1
No. Of Poles	2
No. Of Wires	3
Outlet Type	Single
Overall Depth	1.2"
Phase	1
Polarized	Yes
Power Indicator	No
Product Datasheet	hubbell-wiring-device-kellems-hbl5361gry.pdf
Receptacle Type	Single
Signal & Power Protection	Standard Protection
Surge Protection	No
Ul 94 Flammability Rating	V-0, V-2
Voltage	125V AC
Wattage	2500 W
Watts	2500 W
Weather Resistance	No
Weather Resistant	No
Width	1.63"
Wire Connection Location	Back, Side
Wire Connection Type	Screw Terminal
Wire Size	12 AWG to 10 AWG
Wiring Method	Back And Side

Shipping Info:

Ship weight (kg)	0.07
Ship height (cm)	3.02
Ship length (cm)	8.33
Ship width (cm)	4.14
HS code	8536698000
Country of Origin	US

Documentation:

Datasheet

Product Variants

Model	Grade	Housing Color	Wire Size	Color	Amps	Nema Rating	Voltage	Max. Hp	Price
HBL5261	Federal Specification	Brown	14 AWG to 10 AWG	Brown	15A	NEMA 5-15R	125V AC	1/2 hp	€57.51
HBL5361	Grade Industrial	-	12 AWG to 10 AWG	Brown	20A	NEMA 5-20R	-	-	€86.52
HBL5461	Federal Specification	Brown	12 AWG to 10 AWG	Brown	20A	NEMA 6-20R	250V AC	2 hp	€85.21
HBL5661	Federal Specification	Brown	12 AWG to 10 AWG	Brown	15A	NEMA 6-15R	250V AC	1 1/2 hp	€67.62
HBL5361GRYWR	Federal Specification	Gray	12 AWG to 10 AWG	Gray	20A	-	125V AC	-	€65.58
HBL5361IWR	Federal Specification	Ivory	12 AWG to 10 AWG	Ivory	20A	NEMA 5-20R	125V AC	-	€65.58
HBL5361WR	Federal Specification	Brown	12 AWG to 10 AWG	Brown	20A	NEMA 5-20R	125V AC	1 hp	€73.42
