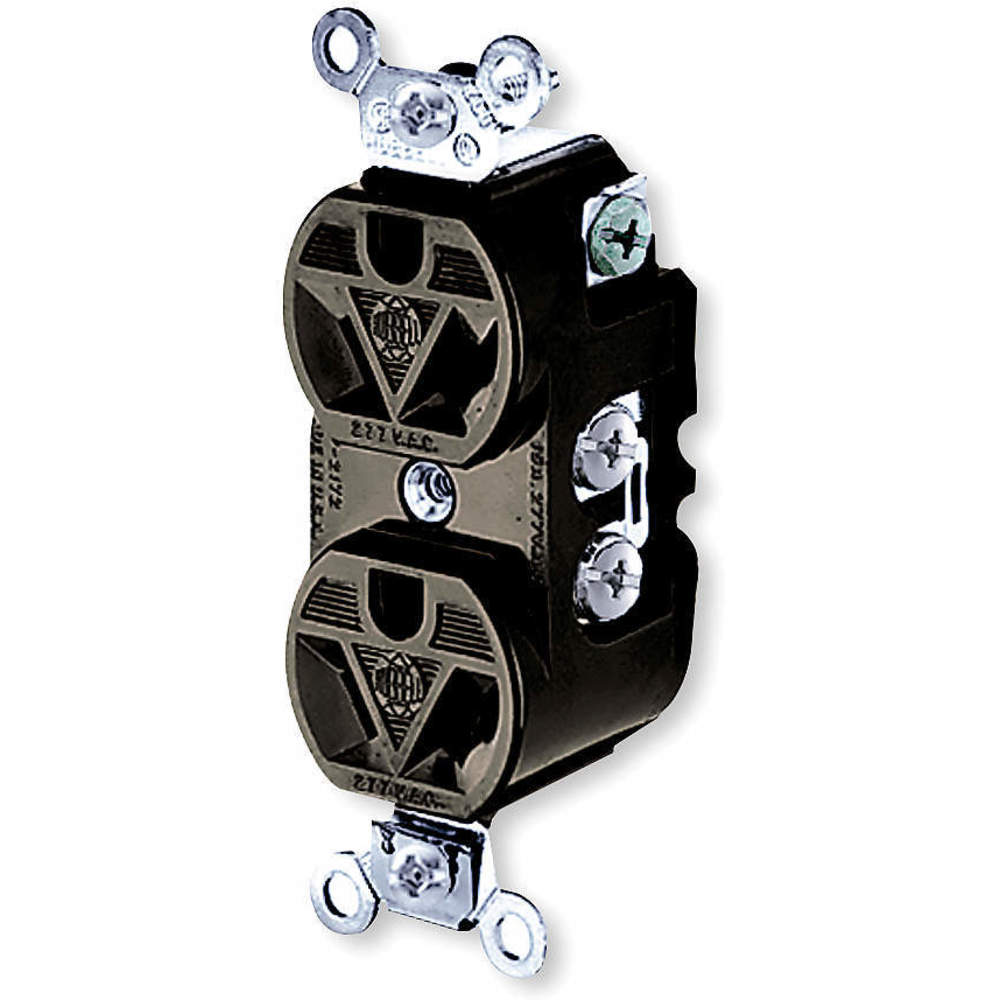

HUBBELL WIRING DEVICE-KELLEMS HBL5302 Straight Receptacle, Duplex, 15A 277VAC, Brown
Item: AC8QBQModel: HBL5302Cross Ref: 3D199
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Application Environment | Industrial Environments |
| Color | Brown, White |
| Connection Orientation | Straight |
| Contact Material | Bronze |
| Cover Type | No Cover |
| Current Rating | 15A |
| Duty | Heavy Duty |
| Face Plate Height | 2.6" |
| Face Plate Width | 1.3" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Height | 1.19" |
| Horsepower Rating | 2 hp |
| Housing Color | Brown |
| Housing Material | Thermoplastic |
| Includes | Grounding Clip, Mating Plug, Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Ip Rating | IP20 |
| Length | 3 7/25" |
| Material | Thermoplastic |
| Max. Hp | 2 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 7-15R |
| Nema Receptacle Configuration | NEMA 7-15R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Duplex |
| Overall Depth | 1.2" |
| Phase | 1 |
| Polarized | Yes |
| Power Indicator | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl5302.pdf |
| Receptacle Type | Duplex |
| Standards | Csa C22.2 No. 42 File 280C, Nema Wd-6, Ul 498 File E1706 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 277/120-277V AC |
| Voltage Rating | 277V AC |
| Weather Resistant | No |
| Width | 1.33" |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 14 AWG to 10 AWG |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 3.38 |
| HS code | 8536490080 |
| Country of Origin | US |
Product Details:
- 2-Pole 3-Wire Grounding
