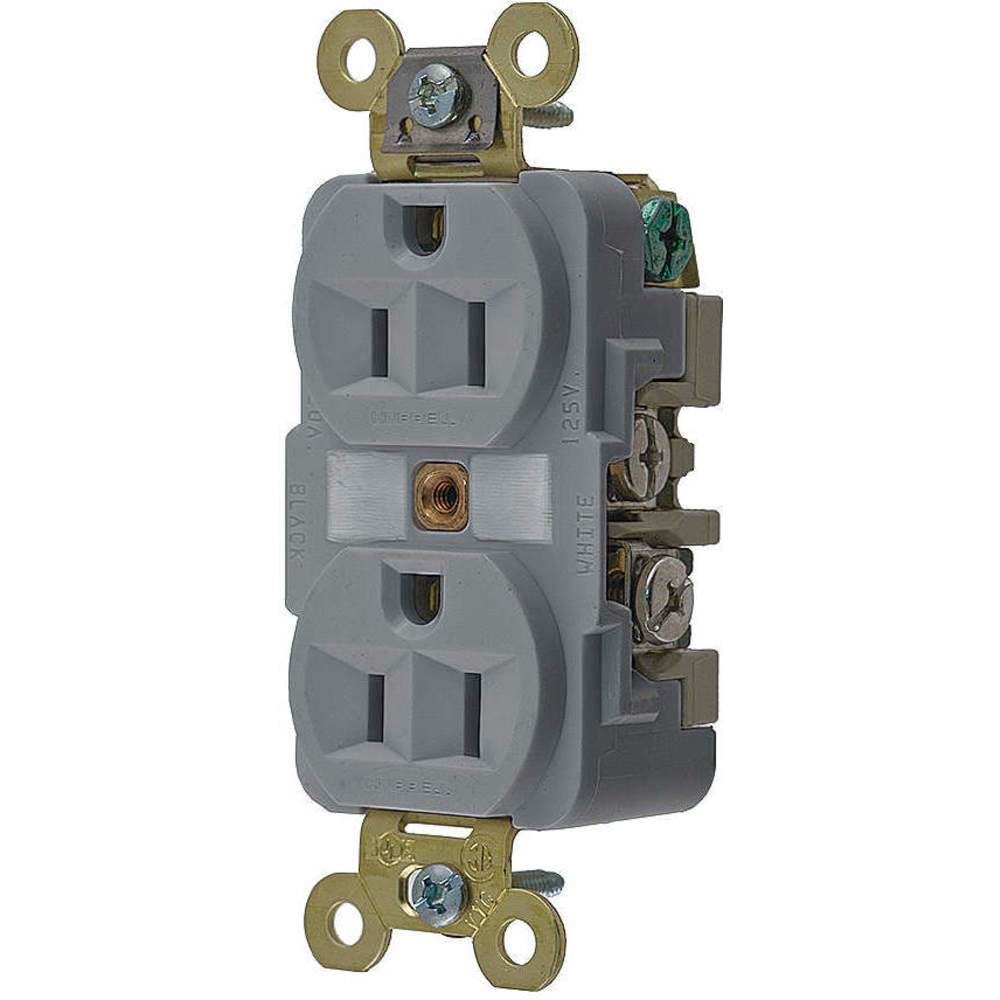

HUBBELL WIRING DEVICE-KELLEMS HBL5262GY Straight Receptacle, Duplex, 15A 125V, Gray
Item: AE7ZHJModel: HBL5262GYCross Ref: 6C599
7 In Stock
Ships within 2 days via
5.00% off
€57.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Application Environment | Heavy Use Industrial/Harsh Environments |
| Color | Gray |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired |
| Contact Material | Nickel-Plated Brass |
| Cover Type | No Cover |
| Dielectric Strength | Withstands 2,000V minimum |
| Duty | Extra Heavy |
| Face Plate Height | 2.7" |
| Face Plate Width | 1.7" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Height | 1.19" |
| Housing Color | Gray |
| Housing Material | Nylon (Face) |
| Hp | 1/2 hp |
| Included | Grounding Clip, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Included Mounting Hardware | Yes |
| Length | 3 7/25" |
| Material | Nylon |
| Max. Hp | 1/2 hp |
| Max. Operating Temp. | 167°F |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°F |
| Min. Wire Size | 14 AWG |
| Mount Hole Center To Center Height | 3.3" |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Outlet Type | Duplex |
| Overall Depth | 1.2" |
| Phase | 1 |
| Polarized | Yes |
| Power Indicator | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl5262gy.pdf |
| Receptacle Type | Duplex |
| Signal & Power Protection | Standard Protection |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-0, V-2 |
| Voltage | 125V AC |
| Wattage | 1875 W |
| Watts | 1875 W |
| Weather Resistance | No |
| Weather Resistant | No |
| Width | 1.65" |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminal |
| Wire Size | 14 AWG to 10 AWG |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 3.05 |
| Ship width (cm) | 4.19 |
| HS code | 8536490080 |
| Country of Origin | US |
Product Details:
- 2-Pole 3-Wire Grounding
Documentation:
Product Variants
| Product | Model | Watts | Max. Hp | Color | Voltage | Material | Height | Grade | Housing Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL5662 | 3750 W | 1 1/2 hp | Brown | 250V AC | Nylon | 1.19" | Federal Specification | Brown | €67.84 | |
 |
HBL5262BKWR | 1875 W | 1/2 hp | - | 125V AC | Nylon, Reinforced PET | 1.19" | Federal Specification | Black | €62.44 | |
 |
HBL5262GYWR | 1875 W | 1/2 hp | Gray | - | Nylon, Reinforced PET | 1.19" | Grade Industrial | - | €62.44 | |
 |
HBL5262IWR | 1875 W | 1/2 hp | Ivory | 125V AC | Nylon, Reinforced PET | 1.19" | Federal Specification | Ivory | €61.87 | |
 |
HBL5262RWR | 1875 W | 1/2 hp | Red | 125V AC | Nylon, Reinforced PET | 1.19" | Federal Specification | Red | €62.27 | |
 |
HBL5262WR | 1875 W | 1/2 hp | Brown | 125V AC | Nylon | 1.19" | Federal Specification | Brown | €61.87 | |
 |
HBL5262WWR | 1875 W | 1/2 hp | White | 125V AC | Nylon, Reinforced PET | 1.19" | Federal Specification | White | €61.82 |
