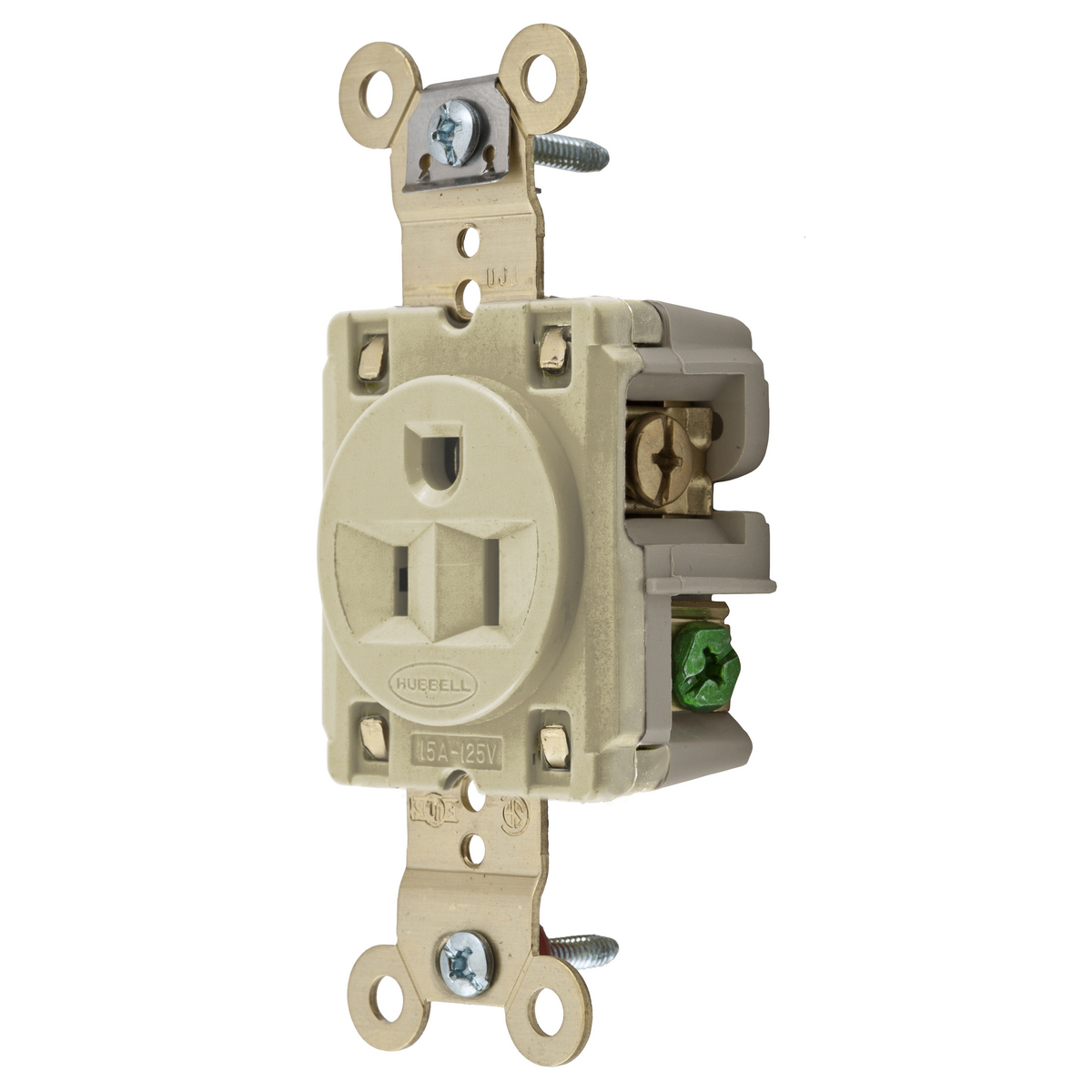

HUBBELL WIRING DEVICE-KELLEMS HBL5261I Straight Receptacle, 15A 125V, 5-15R, Ivory
Item: AE7LEVModel: HBL5261ICross Ref: 5Z813
7 In Stock
Ships within 2 days via
10.00% off
€50.88 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Application Environment | Heavy Use Industrial/Harsh Environments |
| Color | Ivory |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired |
| Contact Material | Nickel-Plated Brass |
| Cover Type | No Cover |
| Current Rating | 15A |
| Dielectric Strength | Withstands 2,000V minimum |
| Duty | Extra Heavy |
| Face Plate Height | 1.9" |
| Face Plate Width | 1 3/5" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Height | 1.19" |
| Horsepower Rating | 1/2 hp |
| Housing Color | Ivory |
| Housing Material | Nylon |
| Includes | Grounding Clip, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Includes Mounting Hardware | Yes |
| Length | 3 7/25" |
| Material | Nylon |
| Max. Hp | 1/2 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Single |
| Overall Depth | 1.2" |
| Phase | 1 |
| Polarized | Yes |
| Prod. Description | Back And Side Wired |
| Product Datasheet | hubbell-wiring-device-kellems-hbl5261i.pdf |
| Receptacle Type | Single |
| Signal & Power Protection | Standard Protection |
| Standards | Csa Certified C22.2 No. 42 File 285, Federal Specification W-C-596, Nema Wd-6, Ul 498 File E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-0, V-2 |
| Voltage | 125V |
| Voltage Rating | 125V AC |
| Wattage | 1875 W |
| Weather Resistant | No |
| Width | 1.63" |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 14 AWG to 10 AWG |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 4.14 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Grade | Current Rating | Voltage Rating | Housing Color | Wire Size | Color | Wattage | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL5261 | Federal Specification | 15A | 125V AC | Brown | 14 AWG to 10 AWG | Brown | 1875 W | 15A | €56.16 | |
 |
HBL5361 | Grade Industrial | - | - | - | 12 AWG to 10 AWG | Brown | 2500 W | 20A | €70.70 | |
 |
HBL5461 | Federal Specification | 20A | 250V AC | Brown | 12 AWG to 10 AWG | Brown | 5000 W | 20A | €85.21 | |
 |
HBL5661 | Federal Specification | 15A | 250V AC | Brown | 12 AWG to 10 AWG | Brown | 3750 W | 15A | €67.62 | |
 |
HBL5361GRYWR | Federal Specification | 20A | 125V AC | Gray | 12 AWG to 10 AWG | Gray | 2500 W | 20A | €65.58 | |
 |
HBL5361IWR | Federal Specification | 20A | 125V AC | Ivory | 12 AWG to 10 AWG | Ivory | 2500 W | 20A | €65.58 | |
 |
HBL5361WR | Federal Specification | 20A | 125V AC | Brown | 12 AWG to 10 AWG | Brown | 2500 W | 20A | €73.42 |
