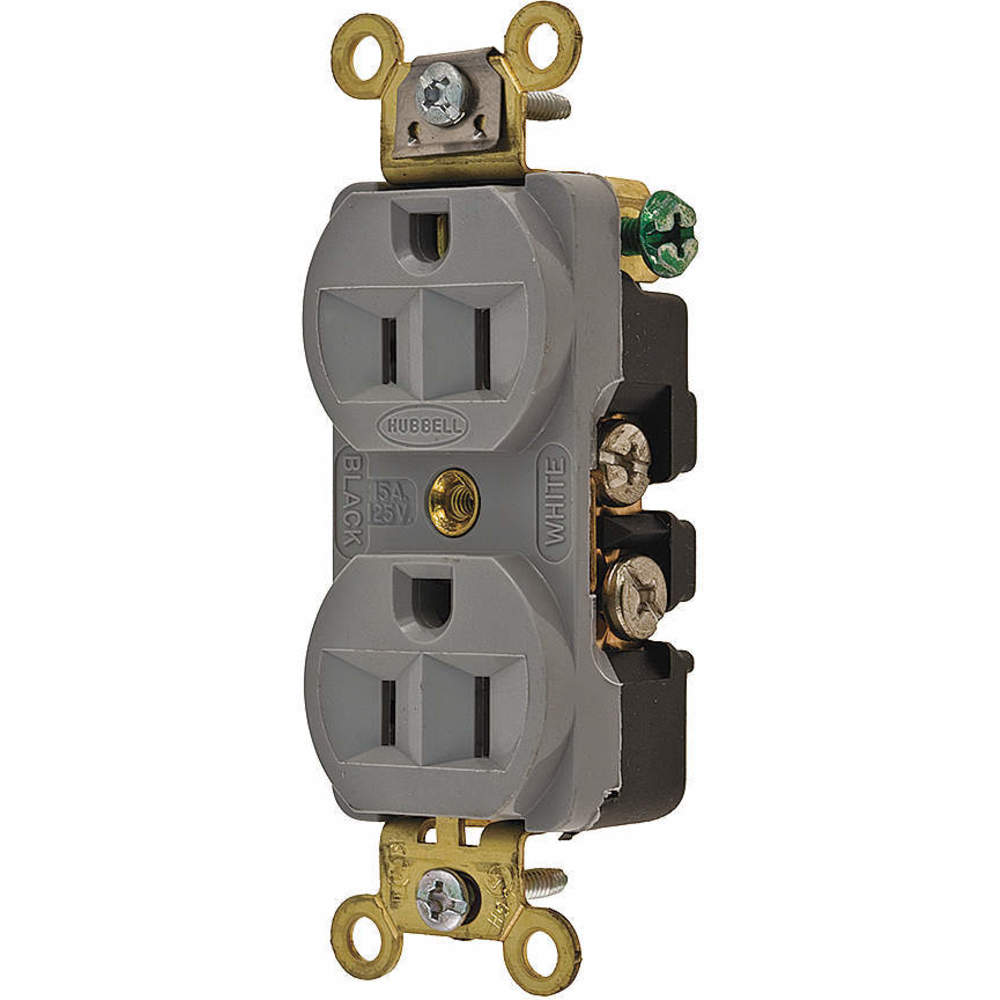

HUBBELL WIRING DEVICE-KELLEMS HBL5252GY Straight Receptacle, Duplex, 15A 125V, Gray
Item: AE7ZHHModel: HBL5252GYCross Ref: 6C597
7 In Stock
Ships within 2 days via
10.00% off
€33.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Application Environment | Industrial Environments |
| Color | Gray |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 15A |
| Dielectric Strength | Withstands 2,000V minimum |
| Duty | Extra Heavy |
| Face Plate Height | 2.7" |
| Face Plate Width | 1.3" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Horsepower Rating | 1/2 hp |
| Housing Color | Gray |
| Housing Material | Nylon |
| Includes | Grounding Clip, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Includes Mounting Hardware | Yes |
| Length | 3 7/25" |
| Material | Nylon |
| Max. Hp | 1/2 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Duplex |
| Overall Depth | 1.1" |
| Phase | 1 |
| Polarized | Yes |
| Power Indicator | No |
| Prod. Description | Back And Side Wired |
| Product Datasheet | hubbell-wiring-device-kellems-hbl5252gy.pdf |
| Receptacle Type | Duplex |
| Signal & Power Protection | Standard Protection |
| Standards | Csa Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, Nema Wd-6, Ul 498 File E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 125V AC |
| Wattage | 1875 W |
| Weather Resistant | No |
| Width | 1.33" |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 14 AWG to 10 AWG |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.67 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 3.38 |
| HS code | 8536490080 |
| Country of Origin | US |
Product Details:
- 2-Pole 3-Wire Grounding
Documentation:
Product Variants
| Product | Model | Grade | Current Rating | Housing Color | Wire Size | Color | Nema Rating | Wattage | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL5252R | Federal Specification | 15A | Red | 14 AWG to 10 AWG | Red | NEMA 5-15R | 1875 W | 15A | €31.95 | |
 |
HBL5352BK | Federal Specification | 20A | Black | 12 AWG to 10 AWG | Black | NEMA 5-20R | 2500 W | 20A | €51.74 | |
 |
HBL5352R | Grade Industrial | - | - | 12 AWG to 10 AWG | Red | NEMA 5-20R | 2500 W | 20A | €51.74 | |
 |
HBL5252W | Federal Specification | 15A | White | 14 AWG to 10 AWG | White | NEMA 5-15R | 1875 W | 15A | €36.60 | |
 |
HBL5352W | Federal Specification | 20A | White | 12 AWG to 10 AWG | White | NEMA 5-20R | 2500 W | 20A | €57.21 | |
 |
HBL5252BK | Federal Specification | 15A | Black | 14 AWG to 10 AWG | Black | NEMA 5-15R | 1875 W | 15A | €35.73 | |
 |
HBL5252I | Federal Specification | 15A | Ivory | 14 AWG to 10 AWG | Ivory | NEMA 5-15R | 1875 W | 15A | €40.13 |
