HUBBELL WIRING DEVICE-KELLEMS HBL520R7W Iec Pin And Sleeve Receptacle, Female, 20 A, 277 - 480 VAC, 4 Pole, Red
Item: AC8QBCModel: HBL520R7WCross Ref: 3D179
7 In Stock
Ships within 2 days via
5.00% off
€448.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Pin and Sleeve Receptacle |
| Amps | 20A |
| Cap Type | Spring Loaded Cap |
| Color | Red |
| Connection Orientation | Straight |
| Exposure Conditions | Wateright |
| Face Dia. | 3.48" |
| Features | Color Coded |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Housing Color | Red |
| Housing Material | Thermoplastic |
| Housing Material Grade | Grade Zytel 101 |
| Hp | 10 hp , 5 hp |
| Ip Rating | IP67 |
| Market | Industrial |
| Material | Thermoplastic |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Mounting Style | Screw |
| Nema Enclosure Rating | NEMA 4X |
| No. Of Gangs | 1 |
| No. Of Poles | 4.0 |
| No. Of Wires | 5 |
| Phase | 3 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl520r7w.pdf |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Type | Female Receptacle |
| Ul 94 Flammability Rating | HB |
| Voltage | 277/480V , 277/480V AC |
| Wattage | 9600 |
| Watts | 9600 W |
| Wire Connection Type | Screw Terminal |
| Wire Size | 14 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 11.94 |
| Ship width (cm) | 11.18 |
| HS code | 8536904000 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Voltage | Amps | Color | Wire Size | Housing Color | Max. Wire Size | Min. Wire Size | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

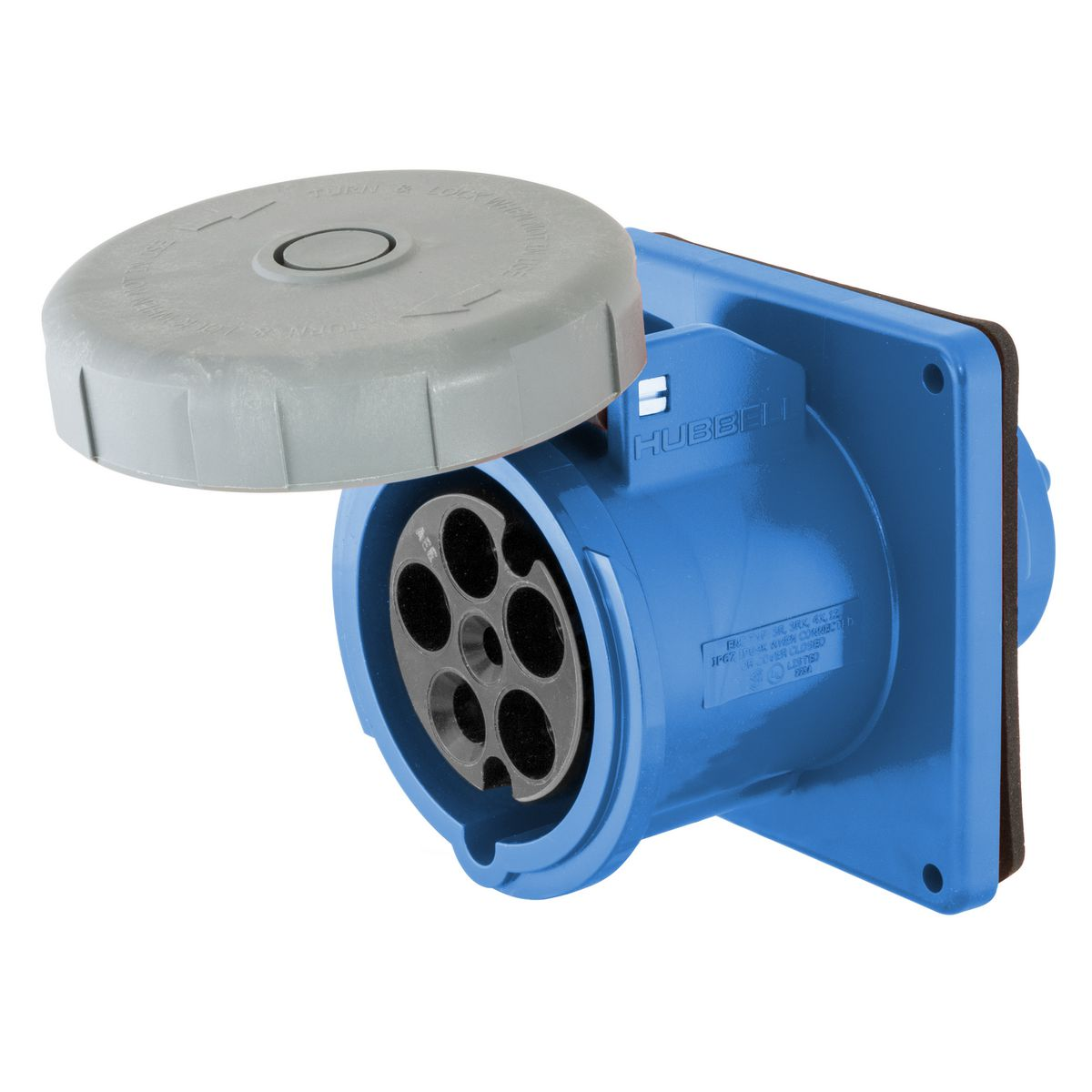

| HBL530R9W | 120/208V | 30A | Blue | 12 AWG to 8 AWG | Blue | 8 AWG | 12 AWG | 5 hp | €686.16 | |
| HBL560R7W | 277/480V | 60A | Red | 8 AWG to 2 AWG | Red | 2 AWG | 8 AWG | 20 hp | €996.50 | |
| HBL520R9W | 120/208V | 20A | Blue | 14 AWG to 10 AWG | Orange | 8 AWG | 12 AWG | 1/2 hp | €502.34 | |
| HBL560R9W | 120/208V | 60A | Blue | 8 AWG to 2 AWG | Blue | 1/0 AWG | 3 AWG | 7 1/2 hp | €1,013.65 | |
| HBL5100R9W | 120/208V | 100A | Blue | #3 AWG to #1/0 AWG | Blue | 10 AWG | 14 AWG | 15 hp | €1,003.08 |
