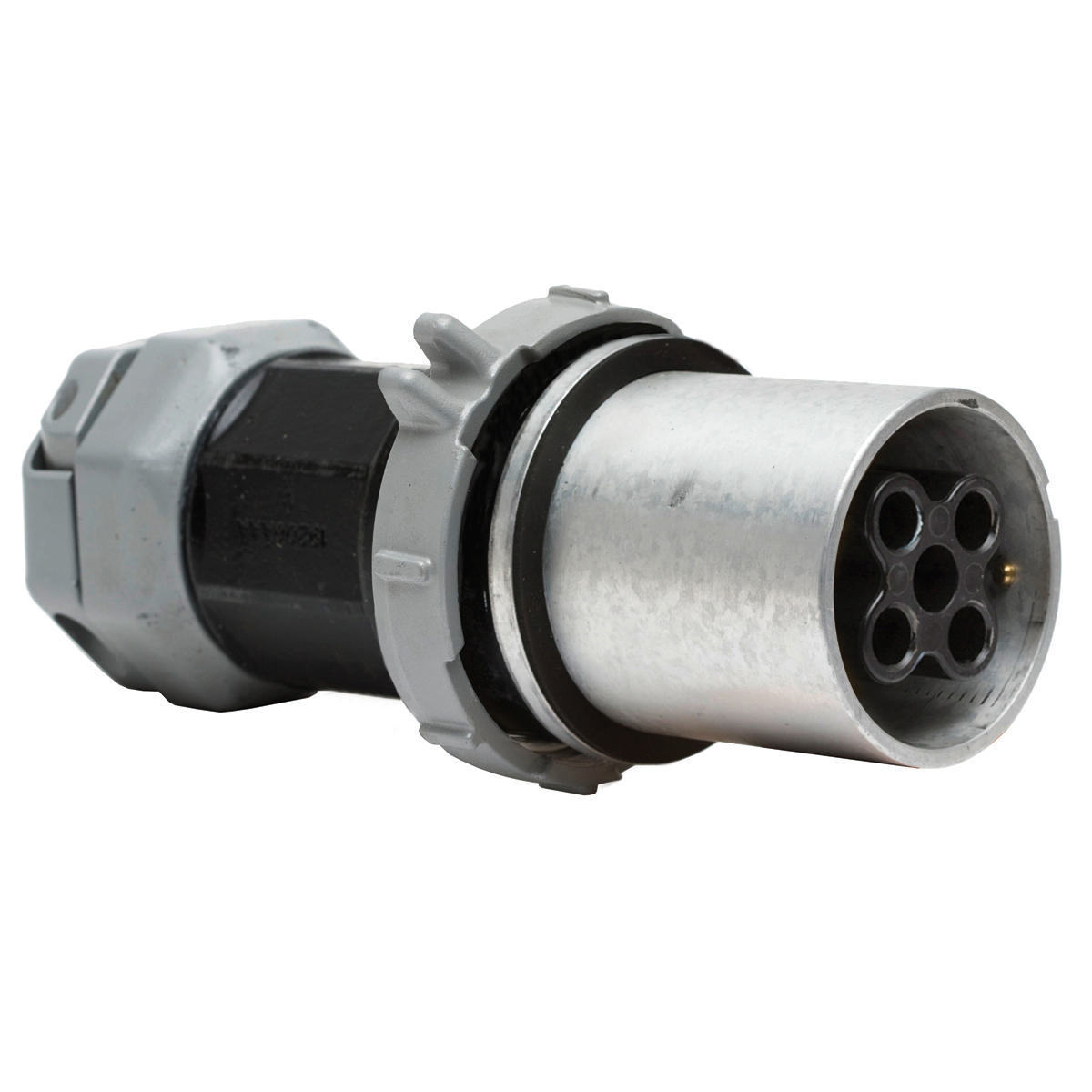

HUBBELL WIRING DEVICE-KELLEMS HBL5100PS1WR Pin And Sleeve Plug, Male, 100 A, 600 VAC, 3 Pole
Item: BC8TPQModel: HBL5100PS1WRCross Ref: 24Y037
7 In Stock
Ships within 2 days via
10.00% off
€1,158.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pin and Sleeve Plug |
| Amps | 100A |
| Cap Type | No Cap, Cover |
| Connection Orientation | Straight |
| Cord Type | Portable |
| Current Rating | 100A |
| Exposure Conditions | Wateright |
| Features | All-Brass Sleeve Contacts Provide Reliable Electrical Contact, Catalog Number And Rating Visible While In Use, Locking Ring Provides Ul Type 4X Watertight, Dust-Tight Seal |
| For Maximum Cable Diameter | 1.94" |
| For Minimum Cable Diameter | 0.925" |
| Grounding | Grounded |
| Grounding Style | Style 1 |
| Housing Color | Black, Gray |
| Housing Material | Composite |
| Ip Rating | Not Rated |
| Material | Composite |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 2 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 4 AWG |
| Mounting Style | Cord |
| Number Of Poles | 4.0 |
| Number Of Wires | 5 |
| Outside Diameter | 4" |
| Overall Length | 10.9" |
| Pin Material | Brass |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl5100ps1wr.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | Yes |
| Shrouded | Yes |
| Switch Rated | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 250V DC/600V AC |
| Wire Connection Type | Screw Terminals |
| Wire Size | #4 AWG to #2 AWG |
Shipping Info:
| Ship weight (kg) | 2.05 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 27.69 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
