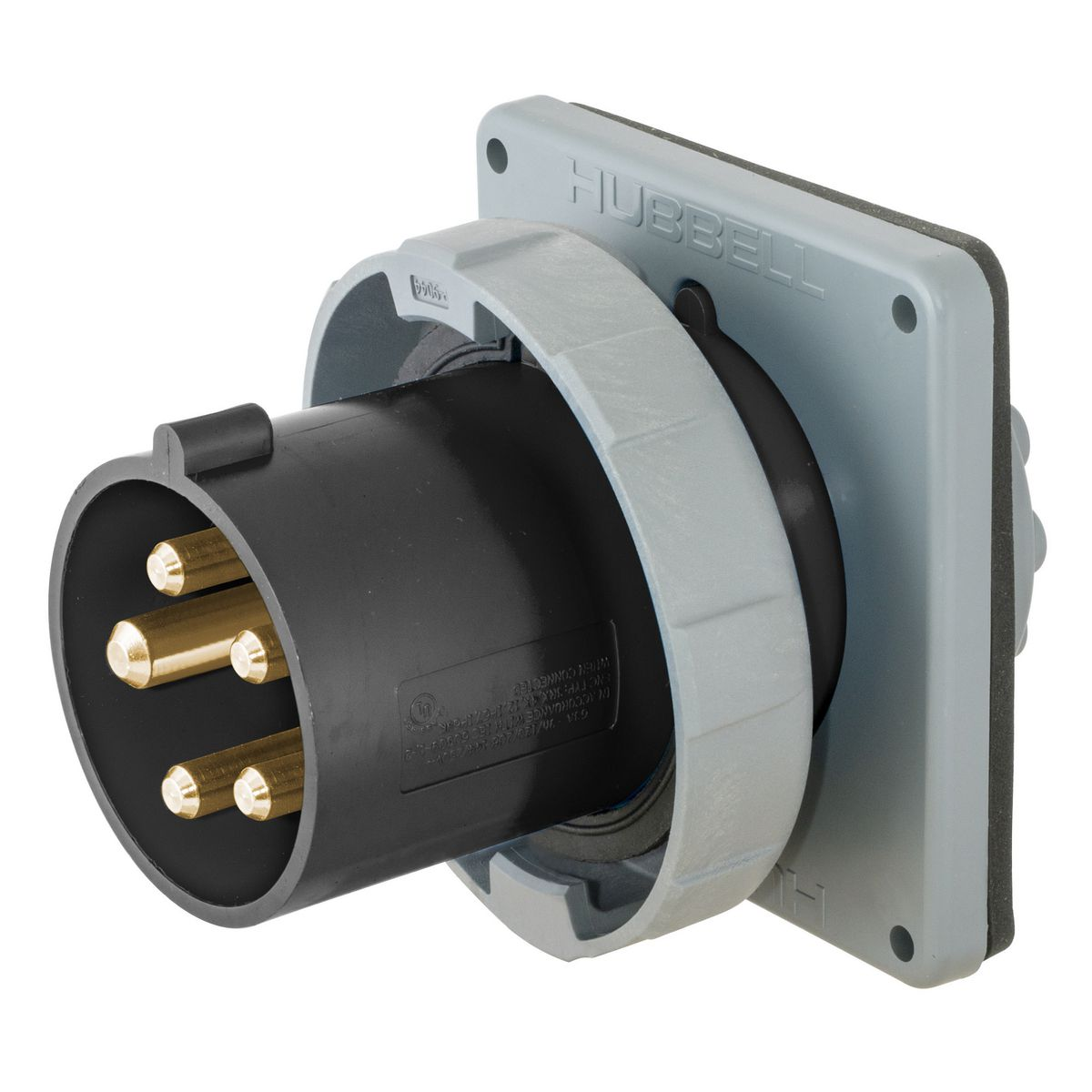

HUBBELL WIRING DEVICE-KELLEMS HBL5100B5W Iec Pin And Sleeve Inlet, Male, 100 A, 347 - 600 VAC, 4 Pole, Black
Item: AC8QMQModel: HBL5100B5WCross Ref: 3D835
7 In Stock
Ships within 2 days via
10.00% off
€1,422.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Pin and Sleeve Inlet |
| Amps | 100A |
| Compatible With Series | Hbl Heavy Duty |
| Current Rating | 100A |
| Dielectric Strength | Minimum 3000 V |
| Exposure Conditions | Wateright |
| Face Diameter | 3.44" |
| Features | Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin |
| Flange Diameter | 3.94" |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 50 hp |
| Housing Color | Black |
| Housing Material | Polybutylene Terephthalate |
| Hp Rating | 30 hp |
| Insulation Material | Thermoplastic |
| Ip Rating | IP67 |
| Market | Industrial |
| Material | Thermoplastic |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 1/0 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 3 AWG |
| Mounting Style | Screw |
| Number Of Poles | 4.0 |
| Number Of Wires | 5 |
| Phase | 3 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl5100b5w.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Shrouded | Yes |
| Switch Rated | Yes |
| Temperature Range | -40°C to +75°C |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 600V |
| Voltage Rating | 347/600V AC |
| Wattage | 60000 W |
| Wattage | 60000 |
| Wire Connection Type | Screw Terminals |
| Wire Size | #3 AWG to #1/0 AWG |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 18.54 |
| Ship length (cm) | 16.26 |
| Ship width (cm) | 14.73 |
| HS code | 8536904000 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Current Rating | Voltage Rating | Number Of Poles | Number Of Wires | Hp Rating | Wire Size | Amps | Wattage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HBL4100B5W | 100A | 600V AC | 3.0 | 4 | 50 hp | #3 AWG to #1/0 AWG | 100A | 60000 W | €1,246.46 | |
| HBL420B5W | 20A | 600V AC | 3.0 | 4 | 7 1/2 hp | 14 AWG to 10 AWG | 20A | 12000 W | €304.88 | |
| HBL430B5W | 30A | 600V AC | 3.0 | 4 | 20 hp | 12 AWG to 10 AWG | 30A | 18000 W | €570.11 | |
| HBL530B5W | 30A | 347/600V AC | 4.0 | 5 | 10 hp | 12 AWG to 10 AWG | 30A | 18000 W | €705.86 | |
| HBL560B5W | 60A | 347/600V AC | 4.0 | 5 | 15 hp | 8 AWG to 2 AWG | 60A | 36000 W | €988.73 | |
| HBL520B5W | 20A | 347/600V AC | 4.0 | 5 | 7 1/2 hp | 14 AWG to 10 AWG | 20A | 12000 W | €410.52 |
