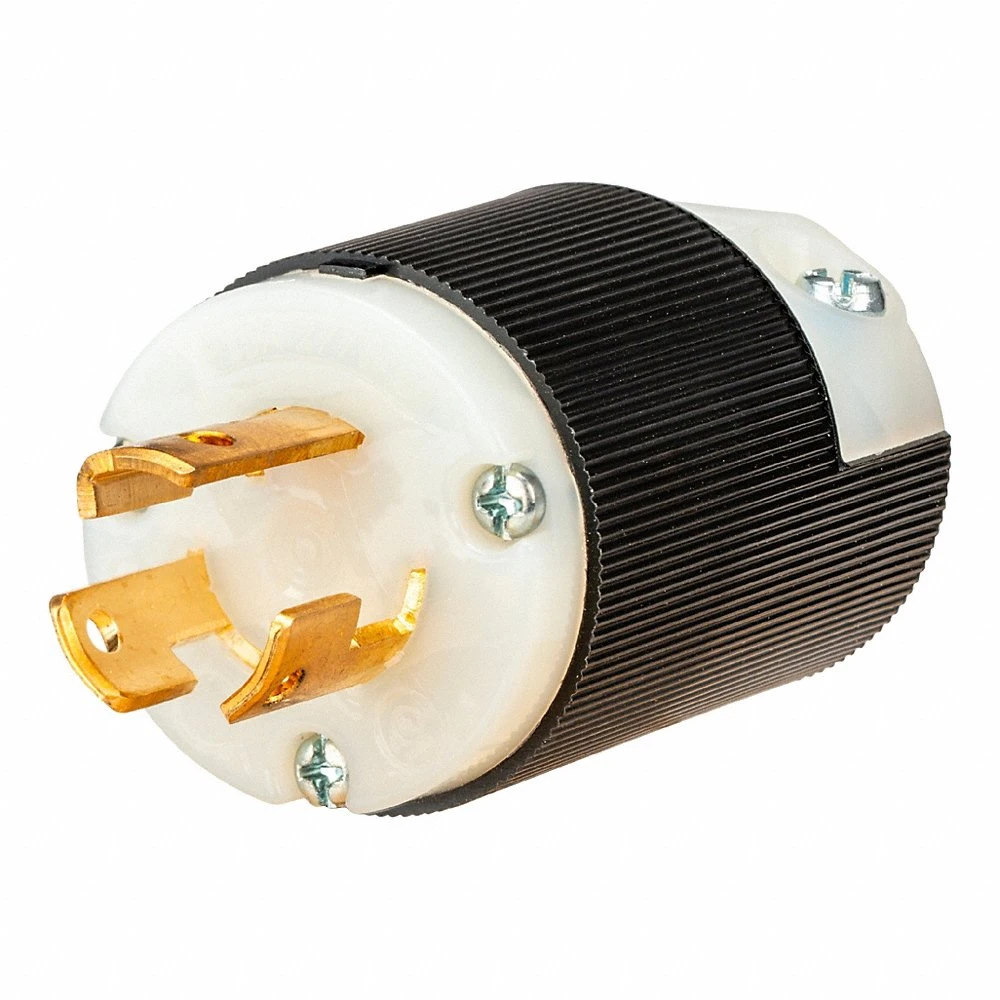

HUBBELL WIRING DEVICE-KELLEMS HBL4770CST Locking Plug, L7-15P, 277V AC, 15 A, 2 Pole, Black/White, Spring Clamp Terminals
Get it by Wednesday, Sep 2
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€38.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Locking Plug |
| Amps Rating | 15A |
| Application | Extra Heavy Duty Industrial, Commercial Grade |
| Blade Holder Material | Nylon |
| Color | Black, White |
| Conductor Range | #14 AWG To #10 AWG |
| Conductor Type | Grounding Wire |
| Connectivity | Spring Termination |
| Contact Material | Copper Alloy |
| Continuous Temp. Range | -40°C to +75°C |
| Cord Clamp Material | Nylon |
| Cord Range | 0.23" to 18/25" |
| Cord Type | All Listed Portables |
| Cover Material | Nylon |
| Display Size | Standard |
| Drive/assembly/cord Clamp Screws Material | Steel |
| Insulation | Insulated Body |
| Max. Hp | 2 hp |
| Min. Dielectric Strength | 2000V |
| Mounting Hardware | Cord Mounted |
| Nema Rating | NEMA L7-15P |
| No. Of Conductors | 3 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Phase | Single |
| Plunger Material | Nylon |
| Product Datasheet | hubbell-wiring-device-kellems-hbl4770cst.pdf |
| Retainer Material | Polycarbonate |
| Series | Edge Connect Series |
| Size | 1.32" x 0.83" x 3.28" |
| Spring Material | Stainless Steel |
| Style | Standard |
| Type | Plugs |
| Voltage Rating | 277V |
| Wire Size | #14 AWG To #10 AWG |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.35 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 3.35 |
| Country of Origin | CN |
