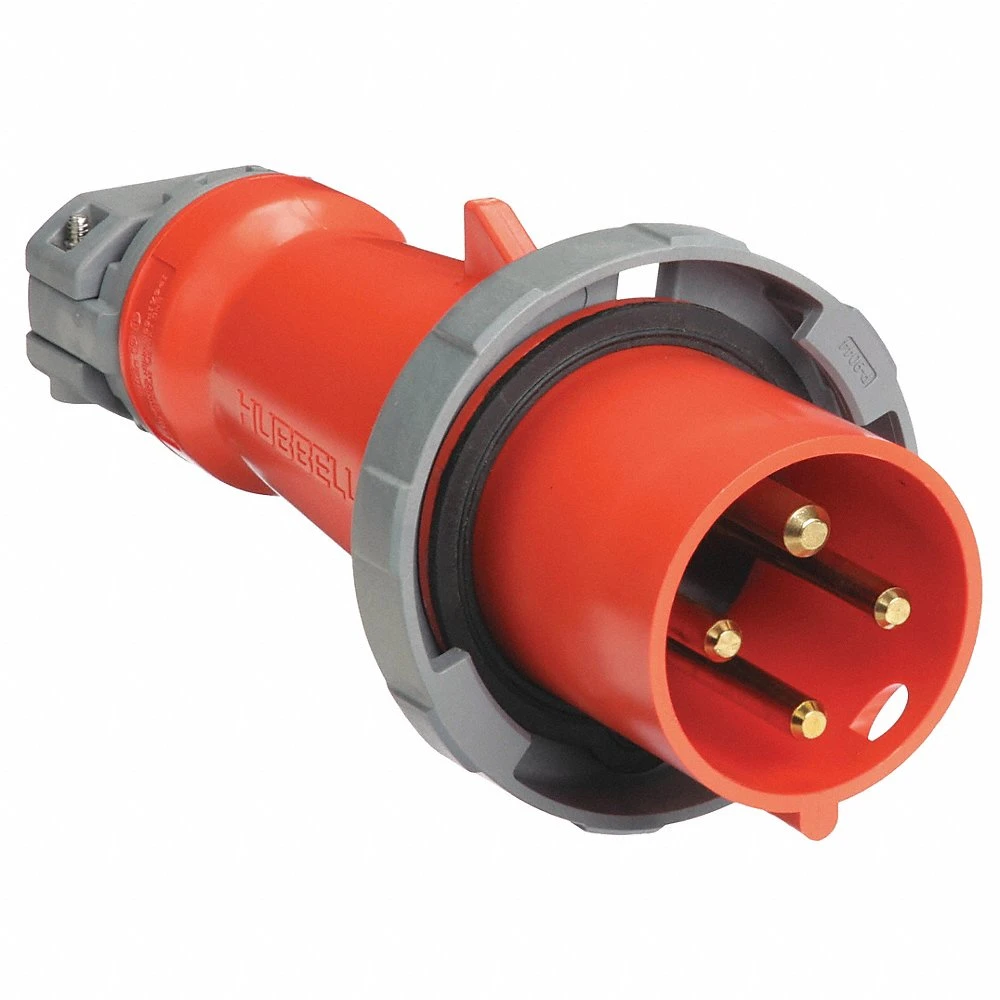

HUBBELL WIRING DEVICE-KELLEMS HBL460P12W Iec Pin And Sleeve Plug, Male, 60 A, 125 - 250 V, Orange
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€868.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | IEC Pin and Sleeve Plug |
| Amps | 60A |
| Cap Type | No Cap, Cover |
| Color | Orange |
| Connection Orientation | Straight |
| Cord Type | Portable |
| Current Rating | 60A |
| Exposure Conditions | Wateright |
| Face Diameter | 2.71" |
| Features | Gasketed Sealing Ring Provides Watertight Seal |
| For Maximum Cable Diameter | 1.45" |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 3 hp |
| Housing Color | Orange |
| Housing Material | Polybutylene Terephthalate |
| Ip Rating | IP67 |
| Material | Composite |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 2 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 8 AWG |
| Mounting Style | Cord |
| Number Of Poles | 3.0 |
| Number Of Wires | 4 |
| Overall Length | 10.14" |
| Phase | 1 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl460p12w.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Type | Male Plug |
| Ul 94 Flammability Rating | HB |
| Voltage | 125/250V |
| Voltage Rating | 125/250V |
| Wire Connection Type | Screw Terminals |
| Wire Size | 8 AWG to 2 AWG |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 29.72 |
| Ship length (cm) | 25.76 |
| Ship width (cm) | 12.45 |
| HS code | 8536904000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Number Of Poles | Number Of Wires | Current Rating | Voltage Rating | Housing Color | Hp Rating | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL360P6W | 1 | 2.0 | 3 | 60A | 250V AC | Blue | - | Blue | €802.93 | |
 |
HBL4100P5W | 3 | 3.0 | 4 | 100A | 600V AC | Black | 50 hp | Black | €1,215.00 | |
|
HBL420P5W | 3 | 3.0 | 4 | 20A | 600V AC | Black | 7 1/2 hp | Black | €376.24 | |
 |
HBL420P9W | 3 | 3.0 | 4 | 20A | 250V AC | Blue | 2 hp | Blue | €379.33 | |
 |
HBL430P12W | 1 | 3.0 | 4 | 30A | 125/250V | Orange | - | Orange | €572.19 | |
|
HBL430P5W | 3 | 3.0 | 4 | 30A | 600V AC | Black | 20 hp | Black | €582.38 | |
|
HBL460P5W | 3 | 3.0 | 4 | 60A | 600V AC | Black | 15 hp | Black | €971.78 |
