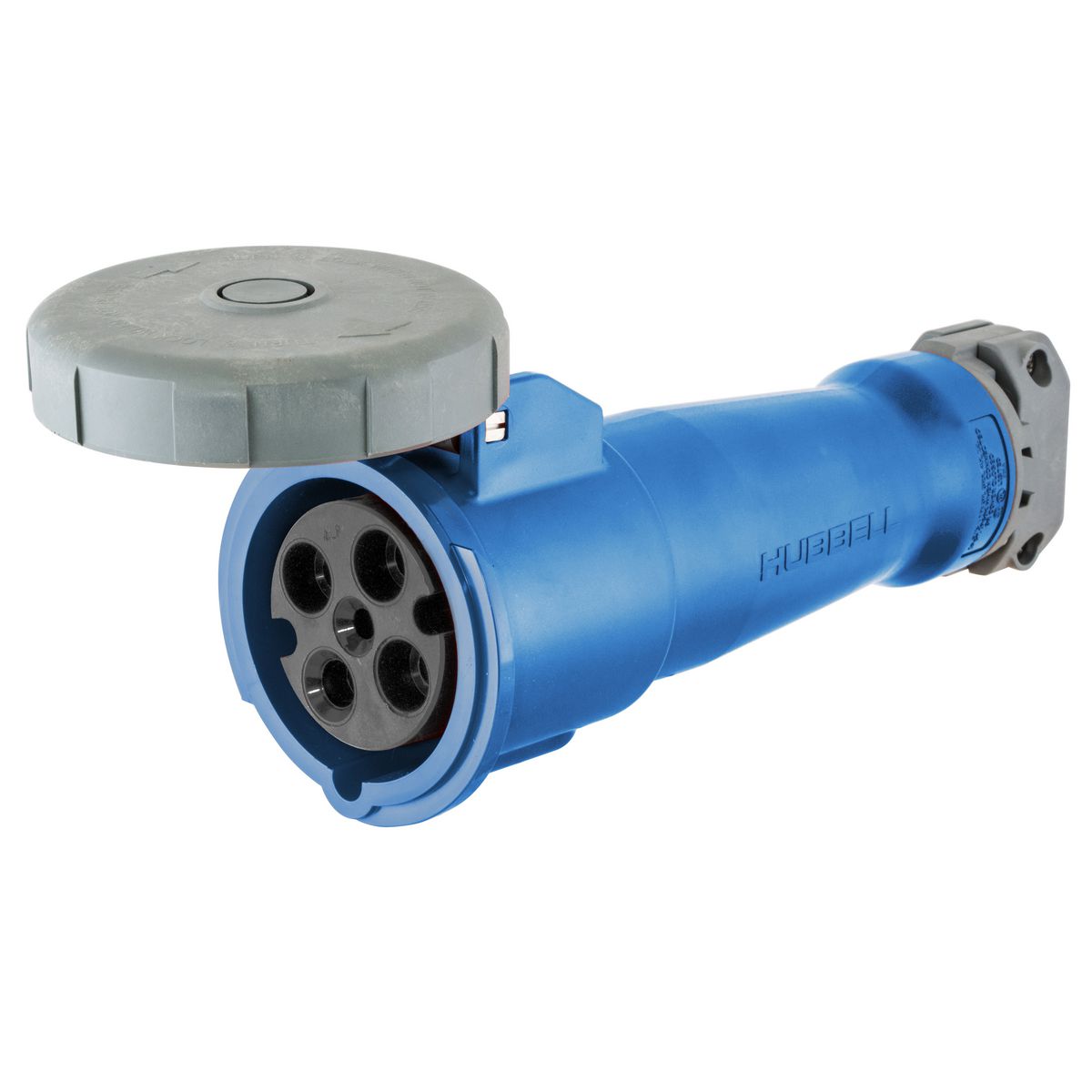

HUBBELL WIRING DEVICE-KELLEMS HBL460C9WLT
Item: BD4FKNModel: HBL460C9WLT
7 In Stock
Ships within 2 days via
€885.60 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Amps Rating | 60A |
| Application | High Ampacity Connections |
| Color | Blue |
| Conductor Range | #8 AWG To #2 AWG |
| Conductor Type | Grounding Wire |
| Connectivity | Pressure Terminal Screws |
| Cord Clamp Finish | Reinforced |
| Cord Clamp Material | Thermoplastic Polyester |
| Cover Finish | Reinforced |
| Cover Material | Thermoplastic Polyester |
| Dielectric Voltage | 3000V AC |
| Display Size | Standard |
| Eu Rohs Indicator | Yes |
| Gaskets Material | Solid Neoprene |
| Gland Material | Solid Neoprene |
| Housing Material | Nylon |
| Insulation | Insulated Body |
| Max. Working Voltage | 600 VRMS |
| Min. Dielectric Strength | 3000V AC |
| Min. Temp. | 40°C |
| Mounting Hardware | Cord Mounted |
| No. Of Conductors | 4 |
| No. Of Poles | 3 |
| No. Of Wires | 4 |
| Operating Temp. | 75°C |
| Series | HBL Heavy Duty Series |
| Style | Standard Service |
| Type | Watertight Connector Body |
| Voltage Rating | 3 Phase 250V AC |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 10.16 |
