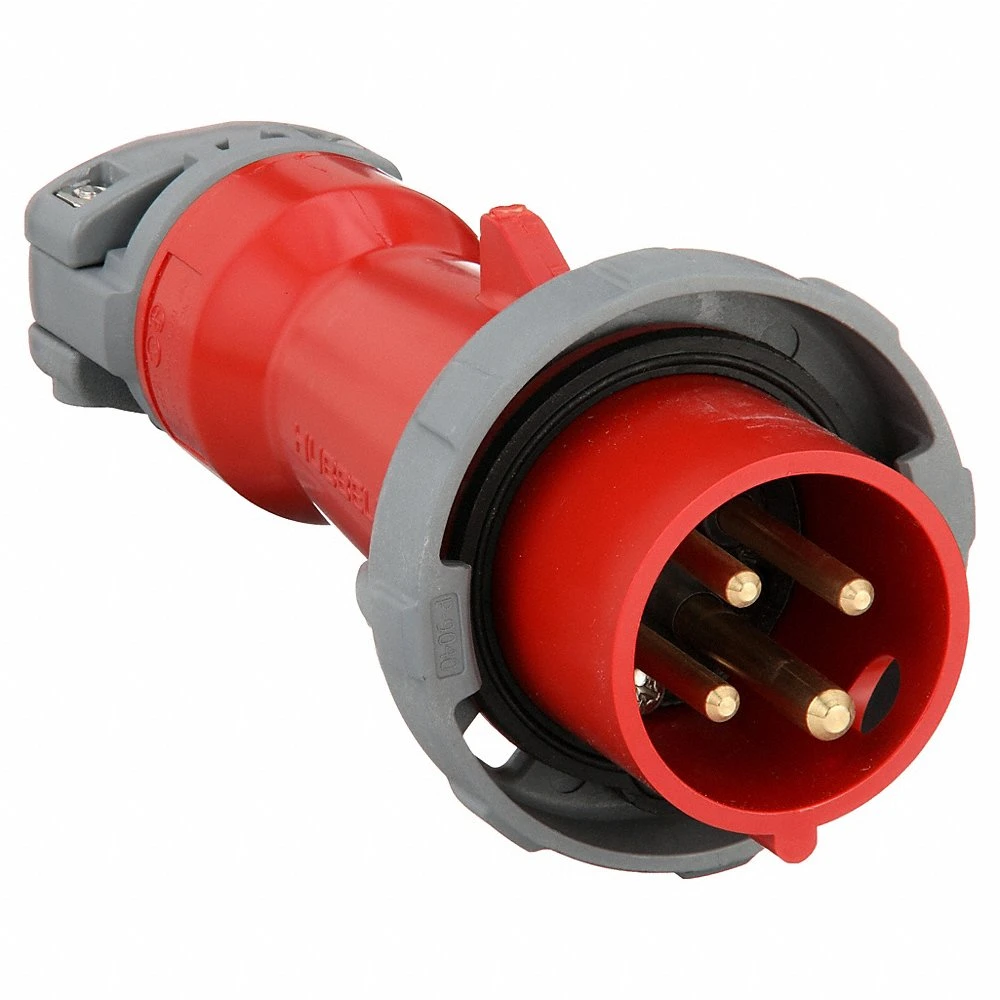

HUBBELL WIRING DEVICE-KELLEMS HBL420P7W Iec Pin And Sleeve Plug, 20A, 480 VAC, Red
Item: AE7YYDModel: HBL420P7WCross Ref: 6C125
7 In Stock
Ships within 2 days via
10.00% off
€346.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Pin and Sleeve Plug |
| Amps | 20A |
| Cap Type | No Cap, Cover |
| Color | Red |
| Connection Orientation | Straight |
| Cord Type | Portable |
| Current Rating | 20A |
| Exposure Conditions | Wateright |
| Features | Gasketed Sealing Ring Provides Watertight Seal |
| For Maximum Cable Diameter | 0.83" |
| For Minimum Cable Diameter | 0.33" |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 10 hp |
| Housing Color | Red |
| Housing Material | Polybutylene Terephthalate |
| Hp Rating | 5 hp |
| Ip Rating | IP67 |
| Material | Composite |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 14 AWG |
| Mounting Style | Cord |
| Number Of Poles | 3.0 |
| Number Of Wires | 4 |
| Overall Length | 7.01" |
| Phase | 3 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl420p7w.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Type | Male Plug |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 480V AC |
| Wire Connection Type | Screw Terminals |
| Wire Size | 14 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 21.34 |
| Ship length (cm) | 17.81 |
| Ship width (cm) | 10.41 |
| HS code | 8536904000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Number Of Poles | Number Of Wires | Current Rating | Voltage Rating | Housing Color | Hp Rating | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL360P6W | 1 | 2.0 | 3 | 60A | 250V AC | Blue | - | Blue | €749.40 | |
 |
HBL4100P5W | 3 | 3.0 | 4 | 100A | 600V AC | Black | 50 hp | Black | €1,134.00 | |
|
HBL420P5W | 3 | 3.0 | 4 | 20A | 600V AC | Black | 7 1/2 hp | Black | €376.24 | |
 |
HBL420P9W | 3 | 3.0 | 4 | 20A | 250V AC | Blue | 2 hp | Blue | €379.33 | |
 |
HBL430P12W | 1 | 3.0 | 4 | 30A | 125/250V | Orange | - | Orange | €572.19 | |
|
HBL430P5W | 3 | 3.0 | 4 | 30A | 600V AC | Black | 20 hp | Black | €582.38 | |
|
HBL460P5W | 3 | 3.0 | 4 | 60A | 600V AC | Black | 15 hp | Black | €907.00 |
