HUBBELL WIRING DEVICE-KELLEMS HBL4100C9W Iec Pin And Sleeve Connector, Female, 100 A, 250 VAC, 3 Pole, Blue
Item: AE7ZFQModel: HBL4100C9WCross Ref: 6C554
7 In Stock
Ships within 2 days via
5.00% off
€1,437.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Pin and Sleeve Connector |
| Amps | 100A |
| Cap Type | Spring Loaded Cap |
| Color | Blue |
| Compatible With Series | Hbl Heavy Duty |
| Conductor Size | #3 AWG to #1 AWG |
| Connection Orientation | Straight |
| Exposure Conditions | Wateright |
| Face Dia. | 4.71" |
| Features | Color Coded Housings For Easy Identification, Insulated Non Metallic Housing, Self Closing Gasketed Cover |
| For Max. Cable Dia. | 1.94" |
| For Min. Cable Dia. | 1.065" |
| Grounding | Grounded |
| Grounding Style | IEC |
| Housing Color | Blue |
| Housing Material | PBT |
| Housing Material Grade | Grade Zytel 801 |
| Hp | 15 hp , 25 hp |
| Ip Rating | IP68, IP69K |
| Market | Industrial |
| Material Type | Nonmetallic, Watertight, Abuse Resistant |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 1/0 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 3 AWG |
| Mounting Style | Cord |
| Nema Enclosure Rating | NEMA 4X |
| No. Of Conductors | 4 |
| No. Of Poles | 3.0 |
| No. Of Wires | 4 |
| Outside Dia. | 5.06" |
| Overall Length | 13.14" |
| Phase | 3 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl4100c9w.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Type | Female Connector |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 250V , 250V AC |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 2.16 |
| Ship height (cm) | 12.85 |
| Ship length (cm) | 33.38 |
| Ship width (cm) | 12.85 |
| HS code | 8536904000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Housing Color | Color | Amps | Hp | Conductor Size | Max. Wire Size | Min. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

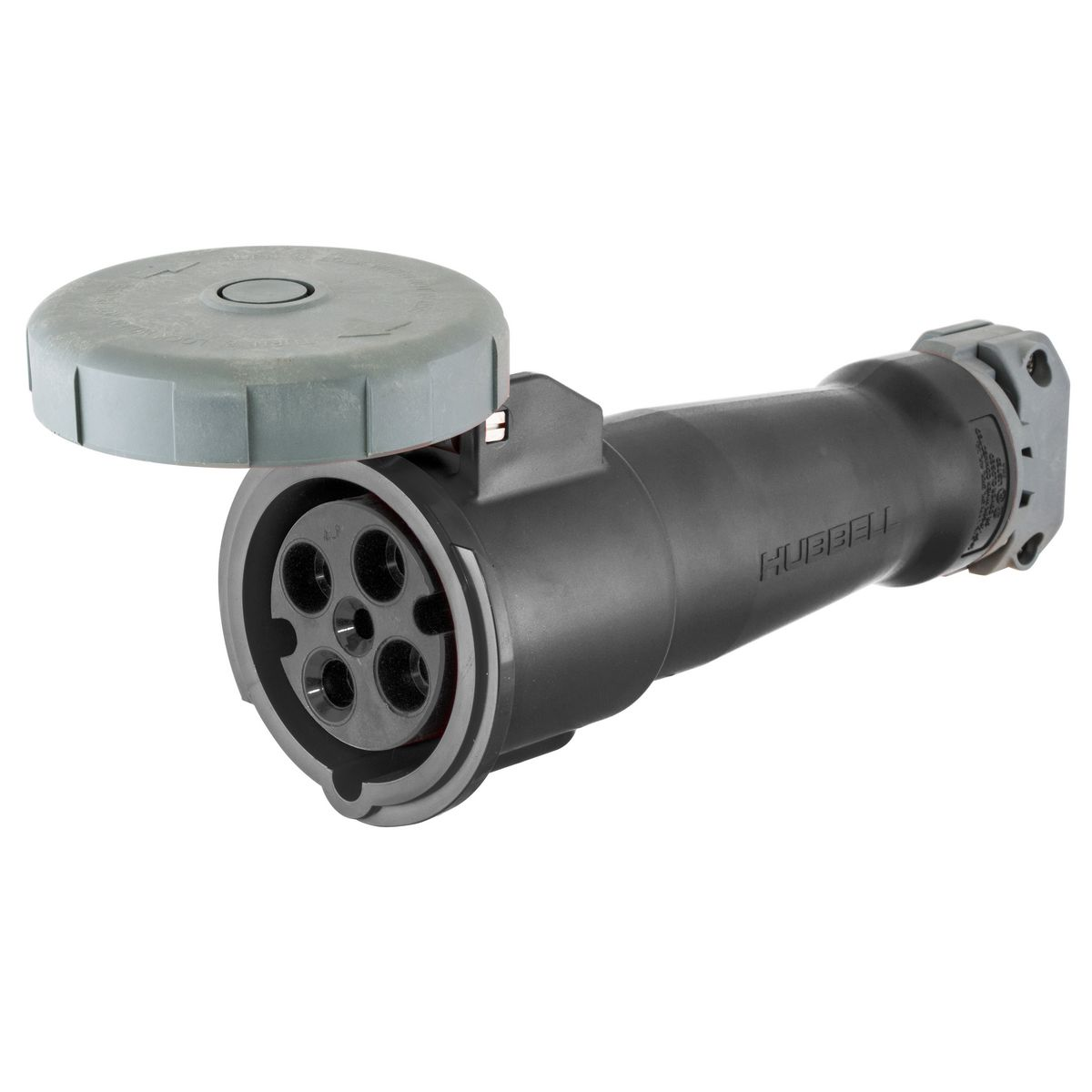

HBL4100C5W | 3 | Black | Black | 100A | 50 hp | #3 AWG to #1 AWG | 1/0 AWG | 3 AWG | €1,433.59 | |
|
HBL420C5W | 3 | Black | Black | 20A | 7 1/2 hp | #14 AWG to #10 AWG | 10 AWG | 14 AWG | €482.07 | |
|
HBL420C9W | 3 | Blue | Blue | 20A | 2 hp | #14 AWG to #10 AWG | 10 AWG | 14 AWG | €468.11 | |
 |

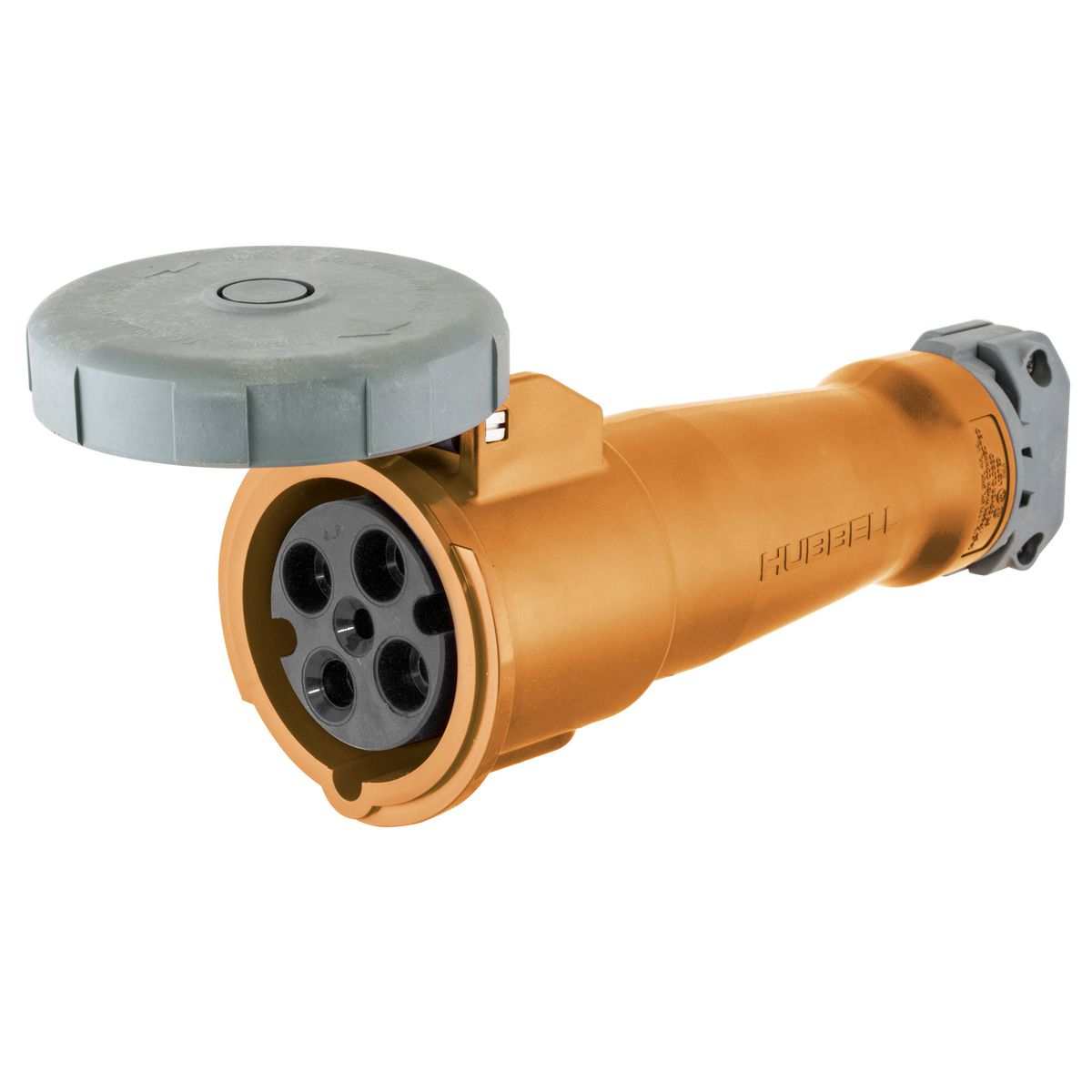

HBL430C12W | 1 | Orange | Orange | 30A | 3 hp | #12 AWG to #8 AWG | 8 AWG | 12 AWG | €646.76 | |
|
HBL430C5W | 3 | Black | Black | 30A | 20 hp | #12 AWG to #8 AWG | 8 AWG | 12 AWG | €617.33 | |
|
HBL460C5W | 3 | Black | Black | 60A | 15 hp | #8 AWG to #2 AWG | 2 AWG | 8 AWG | €989.67 | |
|
HBL460C9W | 3 | Blue | Blue | 60A | 7 1/2 hp | #8 AWG to #2 AWG | 2 AWG | 8 AWG | €1,133.23 |
