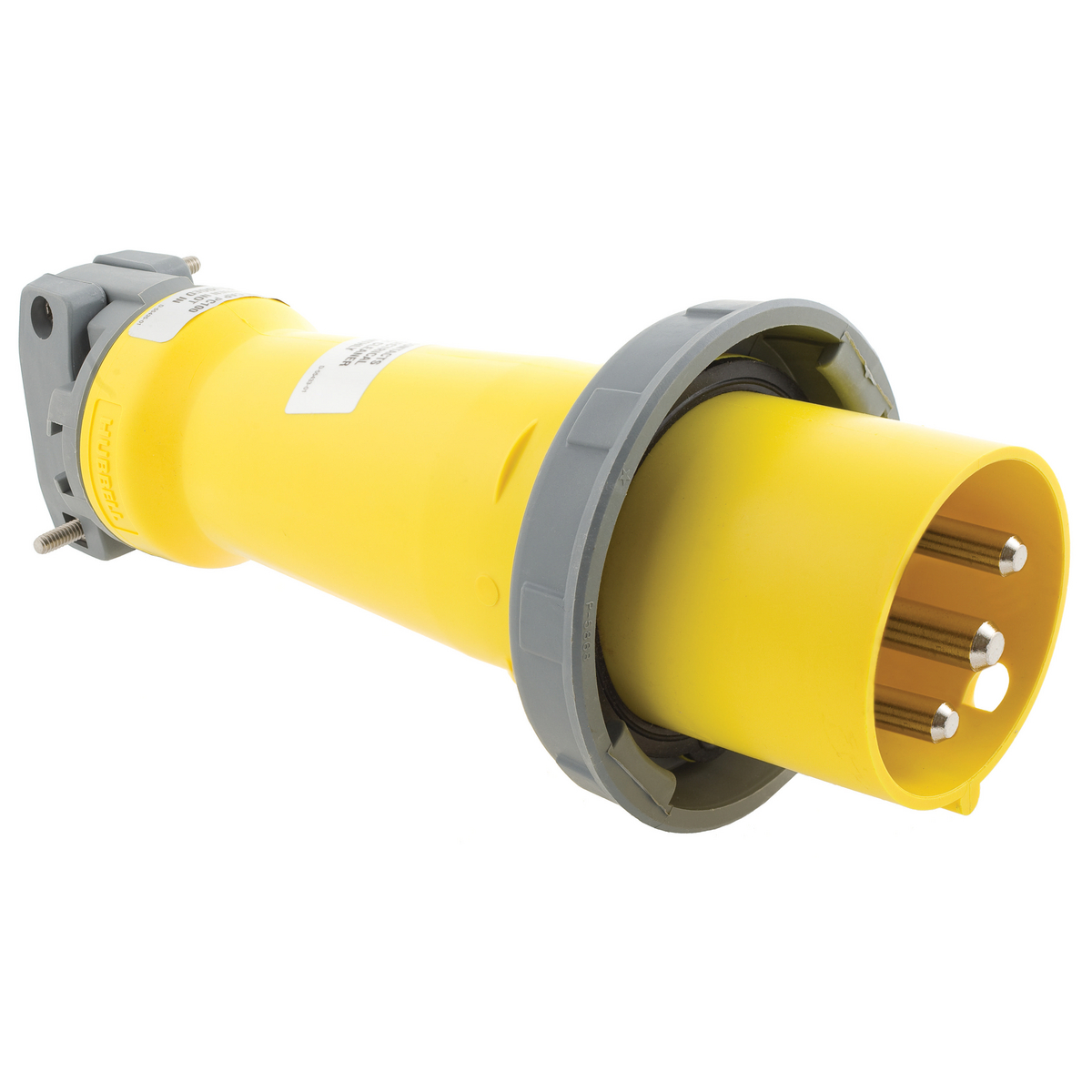

HUBBELL WIRING DEVICE-KELLEMS HBL320P4W Iec Pin And Sleeve Plug, Male, 20 A, 125 VAC, 2 Pole, Yellow
Item: AE7LJLModel: HBL320P4WCross Ref: 5Z931
7 In Stock
Ships within 2 days via
5.00% off
€332.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Pin and Sleeve Plug |
| Amps | 20A |
| Cap Type | No Cap, Cover |
| Color | Yellow |
| Connection Orientation | Straight |
| Cord Type | Portable |
| Exposure Conditions | Wateright |
| Features | Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin, Solid One Piece Pins Machined From Solid Brass |
| For Max. Cable Dia. | 0.78" |
| For Min. Cable Dia. | 0.36" |
| Grounding | Grounded |
| Grounding Style | IEC |
| Housing Color | Yellow |
| Housing Material | Polybutylene Terephthalate |
| Hp | 1 hp |
| Ip Rating | IP67 |
| Material | Composite |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Mounting Style | Cord |
| No. Of Poles | 2.0 |
| No. Of Wires | 3 |
| Overall Length | 6.61" |
| Phase | 1 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl320p4w.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Type | Male Plug |
| Ul 94 Flammability Rating | HB |
| Voltage | 125V , 125V AC |
| Wire Connection Type | Screw Terminal |
| Wire Size | 14 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 16.79 |
| Ship width (cm) | 10.41 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Voltage | Amps | Color | Phase | Wire Size | Housing Color | No. Of Wires | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL360P6W | 2.0 | 250V AC | 60A | Blue | 1 | 8 AWG to 2 AWG | Blue | 3 | €749.40 | |
 |
HBL4100P5W | 3.0 | 600V AC | 100A | Black | 3 | #3 AWG to #1/0 AWG | Black | 4 | €1,134.00 | |
|
HBL420P5W | 3.0 | 600V AC | 20A | Black | 3 | 14 AWG to 10 AWG | Black | 4 | €376.24 | |
 |
HBL420P9W | 3.0 | 250V AC | 20A | Blue | 3 | 14 AWG to 10 AWG | Blue | 4 | €379.33 | |
 |
HBL430P12W | 3.0 | 125/250V | 30A | Orange | 1 | 14 AWG to 10 AWG | Orange | 4 | €572.19 | |
|
HBL430P5W | 3.0 | 600V AC | 30A | Black | 3 | 12 AWG to 8 AWG | Black | 4 | €582.38 | |
|
HBL460P5W | 3.0 | 600V AC | 60A | Black | 3 | 8 AWG to 2 AWG | Black | 4 | €907.00 |
