HUBBELL WIRING DEVICE-KELLEMS HBL3100B6W Iec Pin And Sleeve Inlet, Male, 100 A, 250 VAC, 2 Pole, Blue
Item: AB3TNHModel: HBL3100B6WCross Ref: 1VCJ3
7 In Stock
Ships within 2 days via
10.00% off
€1,148.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Pin and Sleeve Inlet |
| Amps | 100A |
| Color | Blue |
| Compatible With Series | Hbl Heavy Duty |
| Current Rating | 100A |
| Exposure Conditions | Wateright |
| Face Diameter | 3.44" |
| Features | Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin |
| Flange Diameter | 3.94" |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Housing Color | Blue |
| Housing Material | Polybutylene Terephthalate |
| Hp Rating | 15 hp |
| Insulation Material | Thermoplastic |
| Ip Rating | IP67 |
| Market | Industrial |
| Material | Thermoplastic |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 1/0 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 3 AWG |
| Mounting Style | Screw |
| Number Of Poles | 2.0 |
| Number Of Wires | 3 |
| Phase | 1 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl3100b6w.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Shrouded | Yes |
| Type | Inlet |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 250V |
| Voltage Rating | 250V AC |
| Wattage | 25000 W |
| Wattage | 25000 |
| Wire Connection Type | Screw Terminals |
| Wire Size | #3 AWG to #1/0 AWG |
Shipping Info:
| Ship weight (kg) | 1.6 |
| Ship height (cm) | 18.8 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 14.99 |
| HS code | 8536904000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Number Of Poles | Number Of Wires | Current Rating | Voltage Rating | Hp Rating | Type | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
HBL320B6W | 1 | 2.0 | 3 | 20A | 250V AC | - | Inlet | 20A | €279.98 | |
|
HBL330B6W | 1 | 2.0 | 3 | 30A | 250V AC | 2 hp | Inlet | 30A | €573.44 | |
 |
HBL360B6W | 1 | 2.0 | 3 | 60A | 250V AC | - | Inlet | 60A | €788.31 | |
 |
HBL420B9W | 3 | 3.0 | 4 | 20A | 250V AC | 2 hp | Inlet | 20A | €324.09 | |
|
HBL430B9W | 3 | 3.0 | 4 | 30A | 250V AC | 7 1/2 hp | Inlet | 30A | €615.54 | |
 |

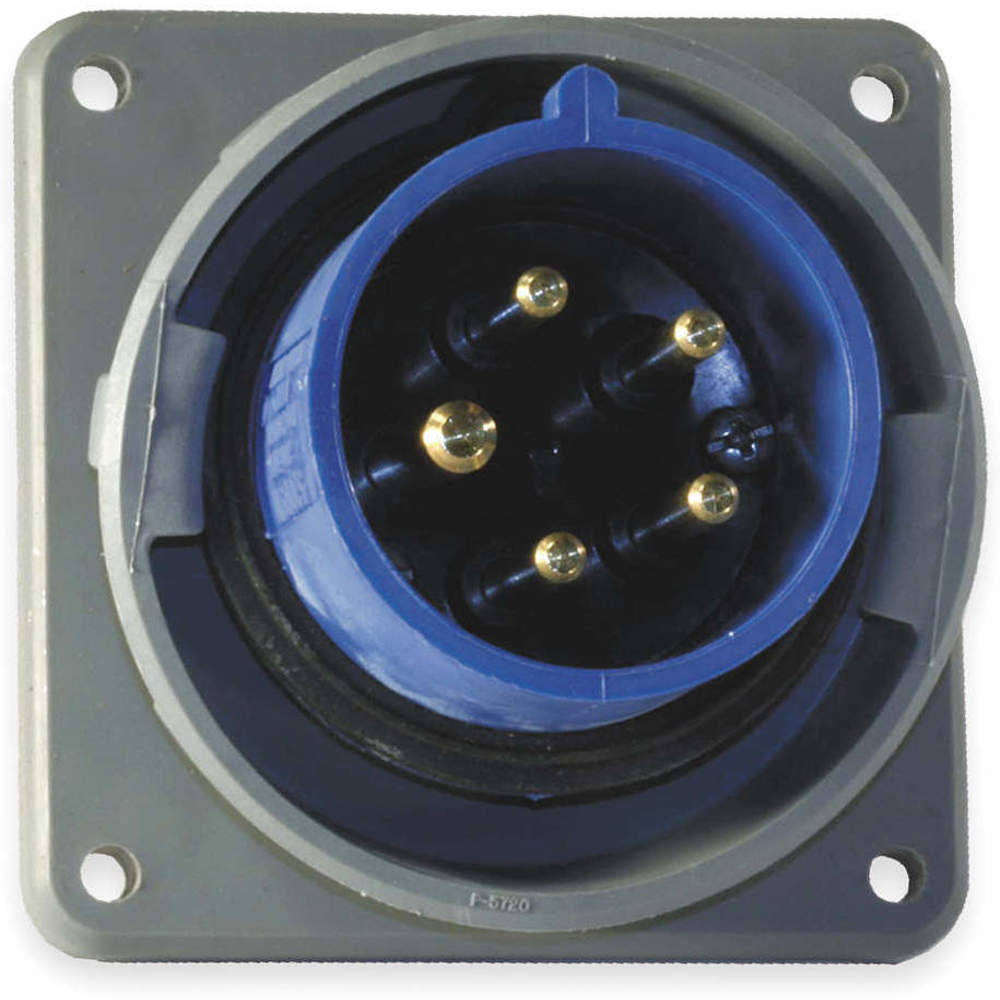

HBL520B9W | 3 | 4.0 | 5 | 20A | 120/208V AC | 1/2 hp | Inlet | 20A | €409.82 | |
|
HBL530B9W | 3 | 4.0 | 5 | 30A | 120/208V AC | 5 hp | Inlet | 30A | €671.49 |
