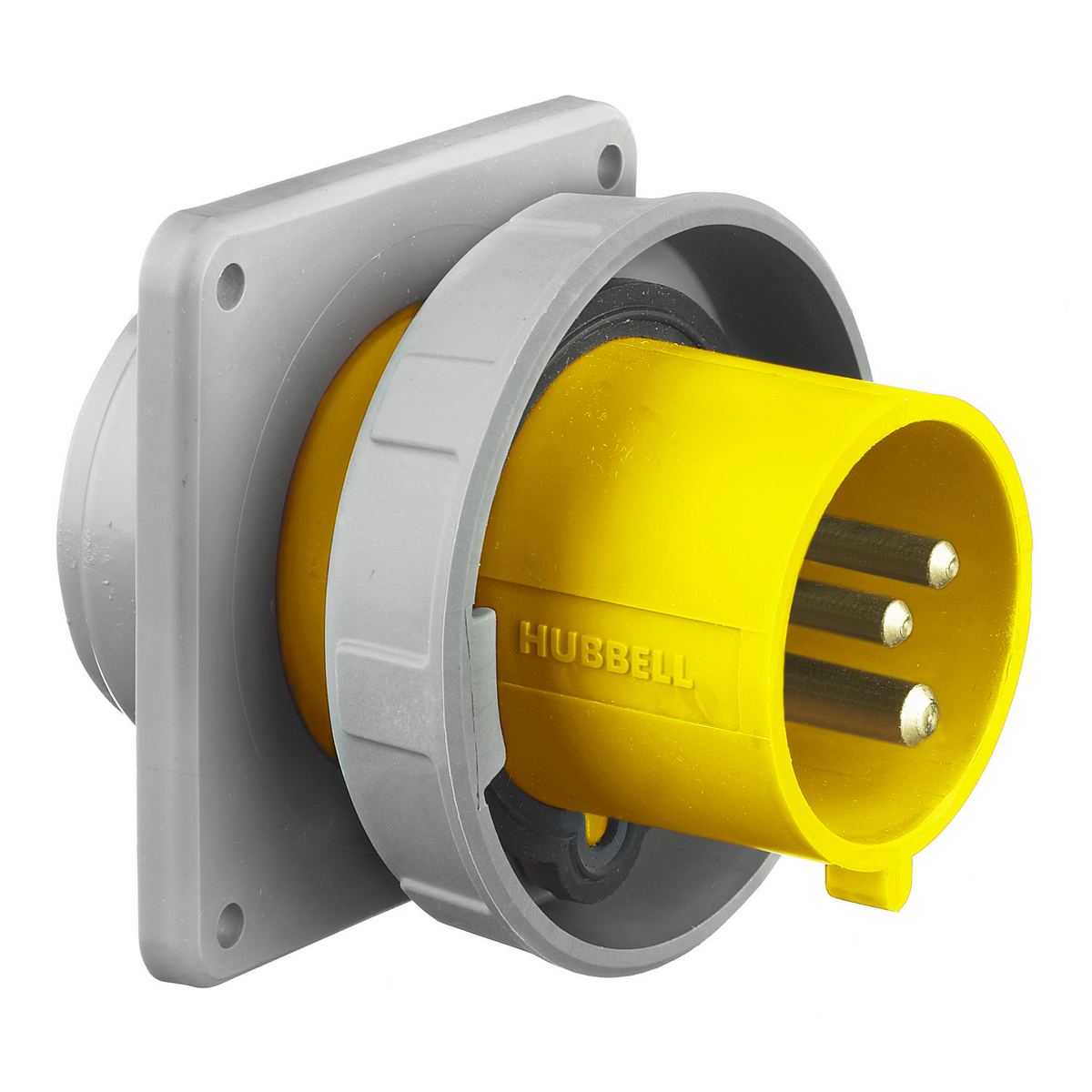

HUBBELL WIRING DEVICE-KELLEMS HBL3100B4W Iec Pin And Sleeve Inlet, Male, 100 A, 125 VAC, 2 Pole, Yellow
Item: AB3TNDModel: HBL3100B4WCross Ref: 1VCH8
7 In Stock
Ships within 2 days via
5.00% off
€1,115.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Pin and Sleeve Inlet |
| Amps | 100A |
| Color | Yellow |
| Compatible With Series | Hbl Heavy Duty |
| Dielectric Strength | Minimum 3000 V |
| Exposure Conditions | Wateright |
| Face Dia. | 3.44" |
| Features | Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin |
| Flange Dia. | 3.94" |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Housing Color | Yellow |
| Housing Material | Polybutylene Terephthalate |
| Hp | 5 hp |
| Insulation Material | Thermoplastic |
| Ip Rating | IP67 |
| Market | Industrial |
| Material | Thermoplastic |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 1/0 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 3 AWG |
| Mounting Style | Screw |
| No. Of Poles | 2.0 |
| No. Of Wires | 3 |
| Phase | 1 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl3100b4w.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Shrouded | Yes |
| Temp. | -40°C to +75°C |
| Type | Inlet |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 125V , 125V AC |
| Wattage | 12500 |
| Watts | 12500 W |
| Wire Connection Type | Screw Terminal |
| Wire Size | #3 AWG to #1/0 AWG |
Shipping Info:
| Ship weight (kg) | 1.37 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 14.61 |
| HS code | 8536904000 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Wire Size | Amps | Hp | Max. Wire Size | Min. Wire Size | Phase | Grounding Style | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HBL320B4W | 14 AWG to 10 AWG | 20A | 1 hp | 10 AWG | 14 AWG | 1 | IEC | Polybutylene Terephthalate | €265.28 | |
| HBL360B4W | 8 AWG to 2 AWG | 60A | 2 hp | 2 AWG | 8 AWG | 1 | IEC | Polybutylene Terephthalate | €737.40 | |
| HBL330B4W | 12 AWG to 10 AWG | 30A | 2 hp | 10 AWG | 12 AWG | 1 | IEC | Polybutylene Terephthalate | €570.87 |
