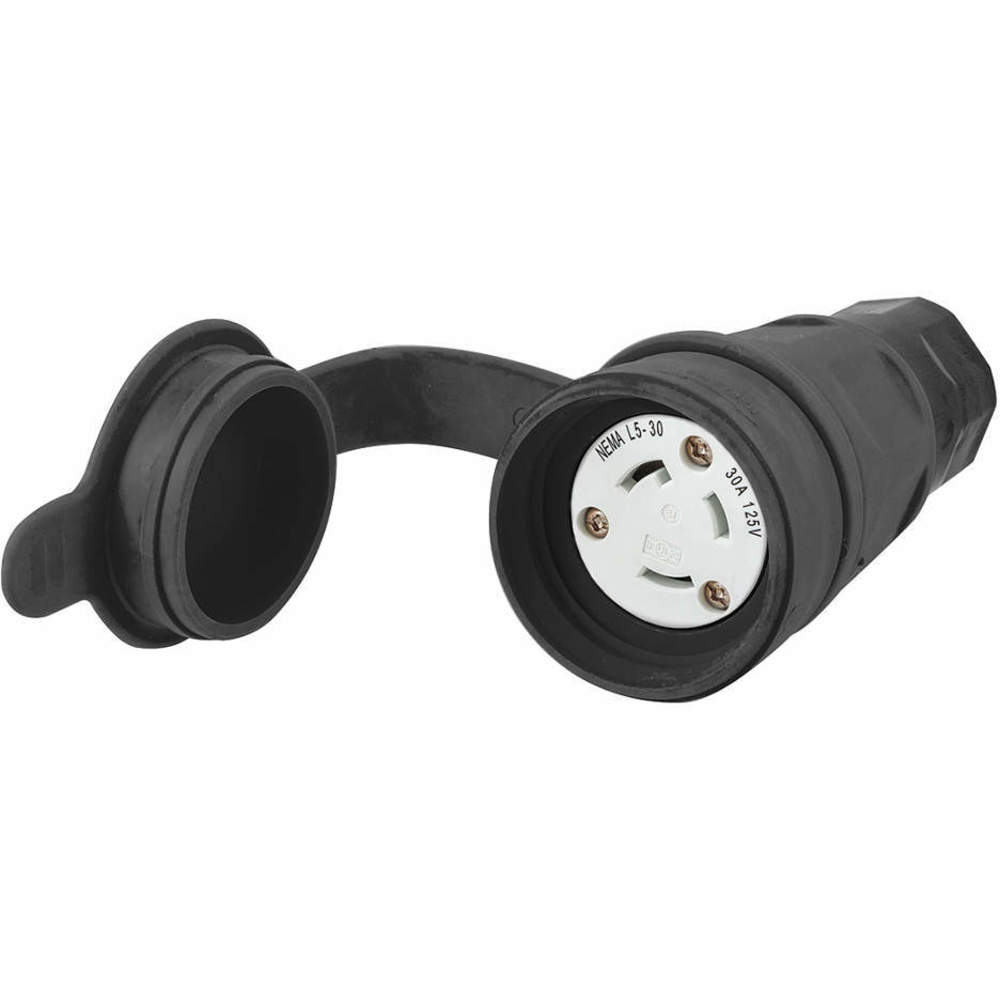

HUBBELL WIRING DEVICE-KELLEMS HBL29W47BK Connector, 30A, 125VAC, 2 Pole, 3 Wire, Thermoplastic Elastomer, Black
Item: AH8XQUModel: HBL29W47BKCross Ref: 39AX14
7 In Stock
Ships within 2 days via
5.00% off
€275.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Watertight Locking Connector |
| Amps | 30A |
| Anti Microbial | No |
| Cap Type | Press On Cap |
| Color | Black |
| Connection Orientation | Straight |
| Contact Material | Nickel-Plated Brass |
| Cord Size | 0.375" to 1.125" |
| For Max. Cable Dia. | 1" |
| For Min. Cable Dia. | 0.375" |
| Grade | Grade Industrial |
| Height | 5.67" |
| Housing Color | Black |
| Housing Material | Thermoplastic Elastomer |
| Hp | 2 hp |
| Ip Rating | IP69K |
| Length | 2.77" |
| Market | Industrial |
| Material | TPE, Valox |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 8 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12 |
| Nema Plug Configuration | L5-30R |
| Nema Rating | NEMA L5-30R |
| Nema Receptacle Configuration | L5-30R |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Outside Dia. | 2.77" |
| Overall Length | 2.77" |
| Phase | 1 |
| Power Indicator | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl29w47bk.pdf |
| Resistance Properties | Corrosion Resistant, Moisture Resistant, UV, Sunlight Resistant |
| Shrouded | Yes |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | HB |
| Voltage | 125V , 125V AC |
| Width | 2.77" |
| Wire Connection Type | Screw Terminal |
| Wire Size | 12/3, 16/3, 14/4, 18/4, 18/5, 8/3, 8/4, 10/5 |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 7.04 |
| Ship length (cm) | 7.04 |
| Ship width (cm) | 7.04 |
| Country of Origin | US |
Product Details:
- Corrosion Resistant : Yes
- Special Features: Corrosion Resistant
Documentation:
Product Variants
| Product | Model | No. Of Poles | Voltage | Phase | Amps | Housing Color | For Max. Cable Dia. | Max. Wire Size | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

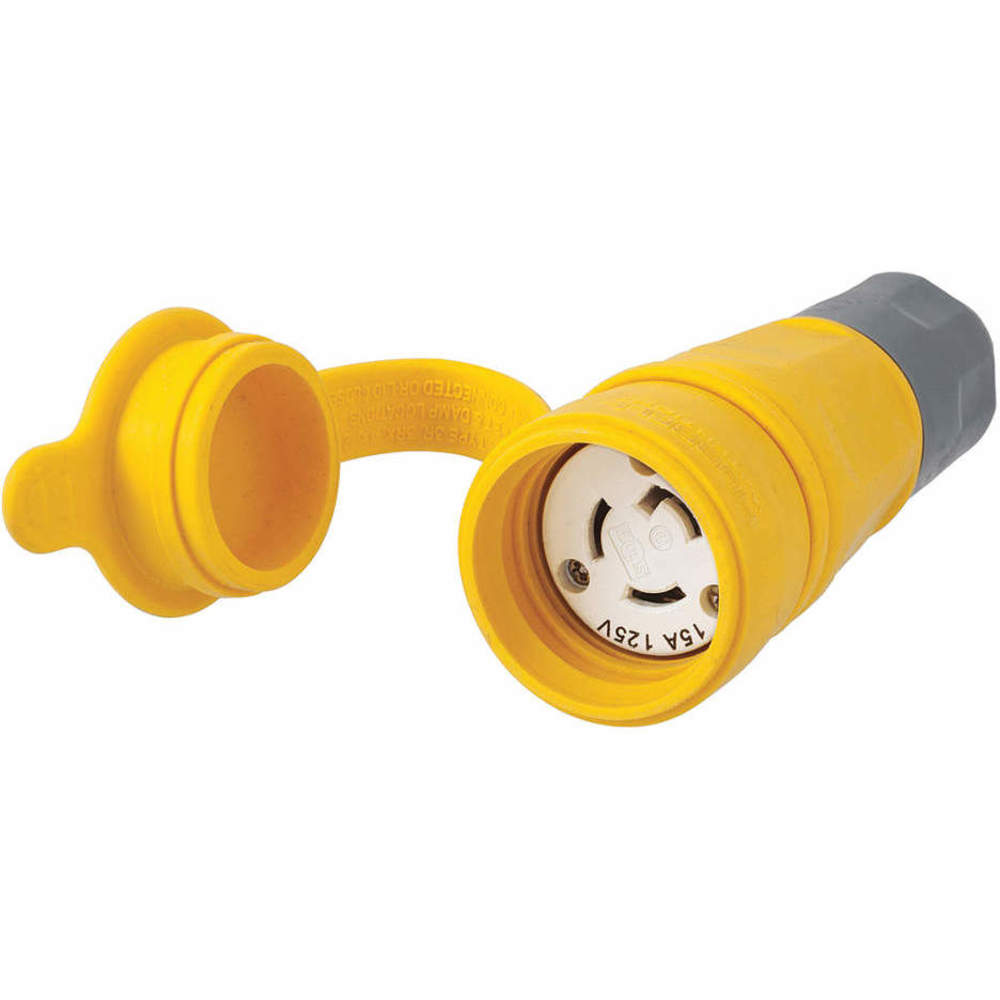

HBL25W47A | 2 | 125V AC | 1 | 15A | Yellow | 0.625" | 10 AWG | Yellow | €82.79 | |
 |

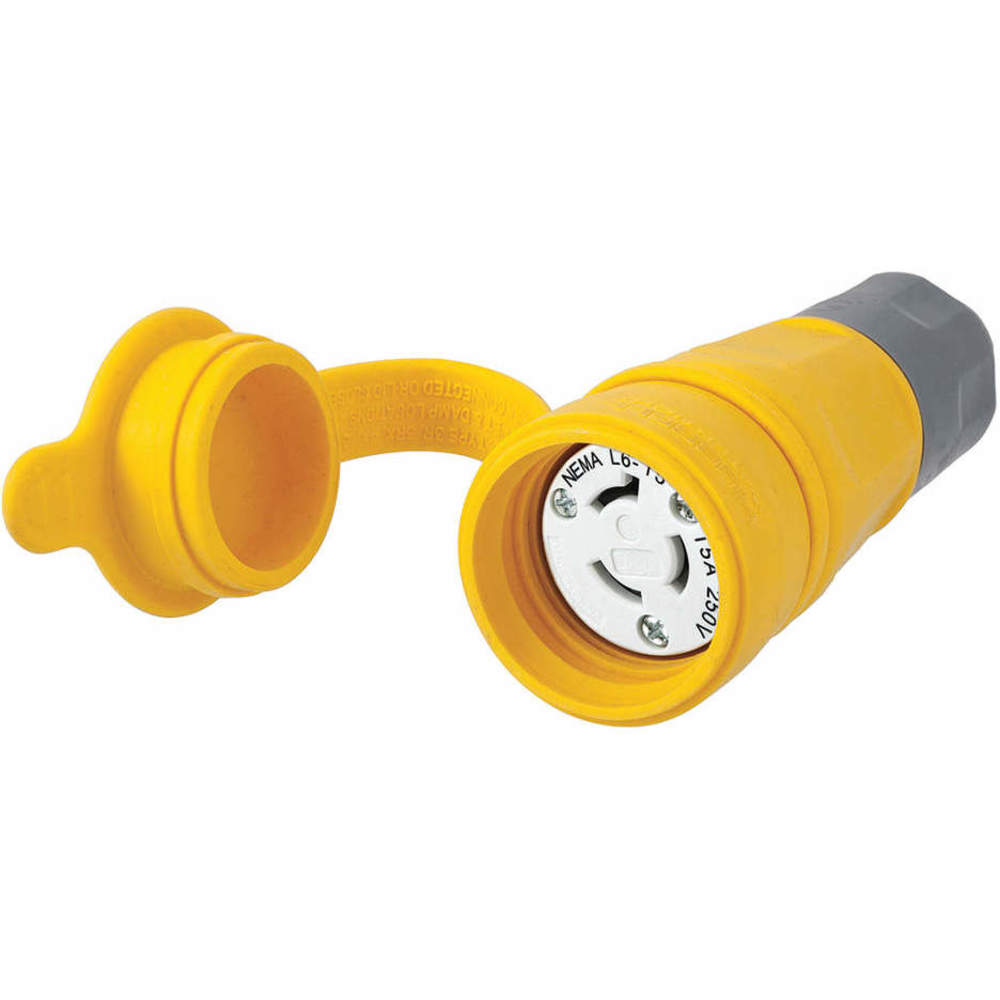

HBL25W49 | 2 | 250V AC | 1 | 15A | Yellow | 0.625" | 10 AWG | Yellow | €104.15 | |
 |
HBL25W34 | 2 | 277V AC | 1 | 15A | Yellow | 0.625" | 10 AWG | Yellow | €121.56 | |
 |

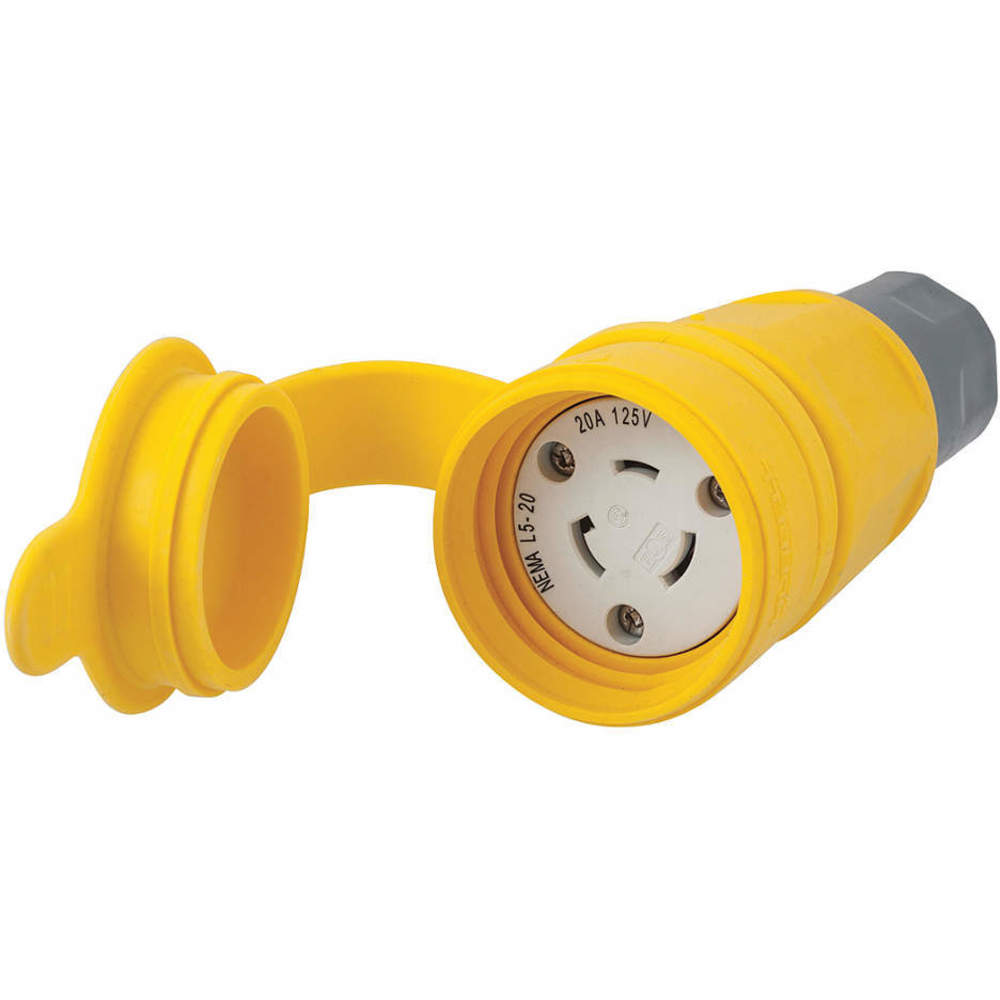

HBL27W47 | 2 | 125V AC | 1 | 20A | Yellow | 0.875" | 10 AWG | Yellow | €141.41 | |
 |
HBL27W48 | 2 | 250V AC | 1 | 20A | Yellow | 0.875" | 10 AWG | Yellow | €138.37 | |
 |

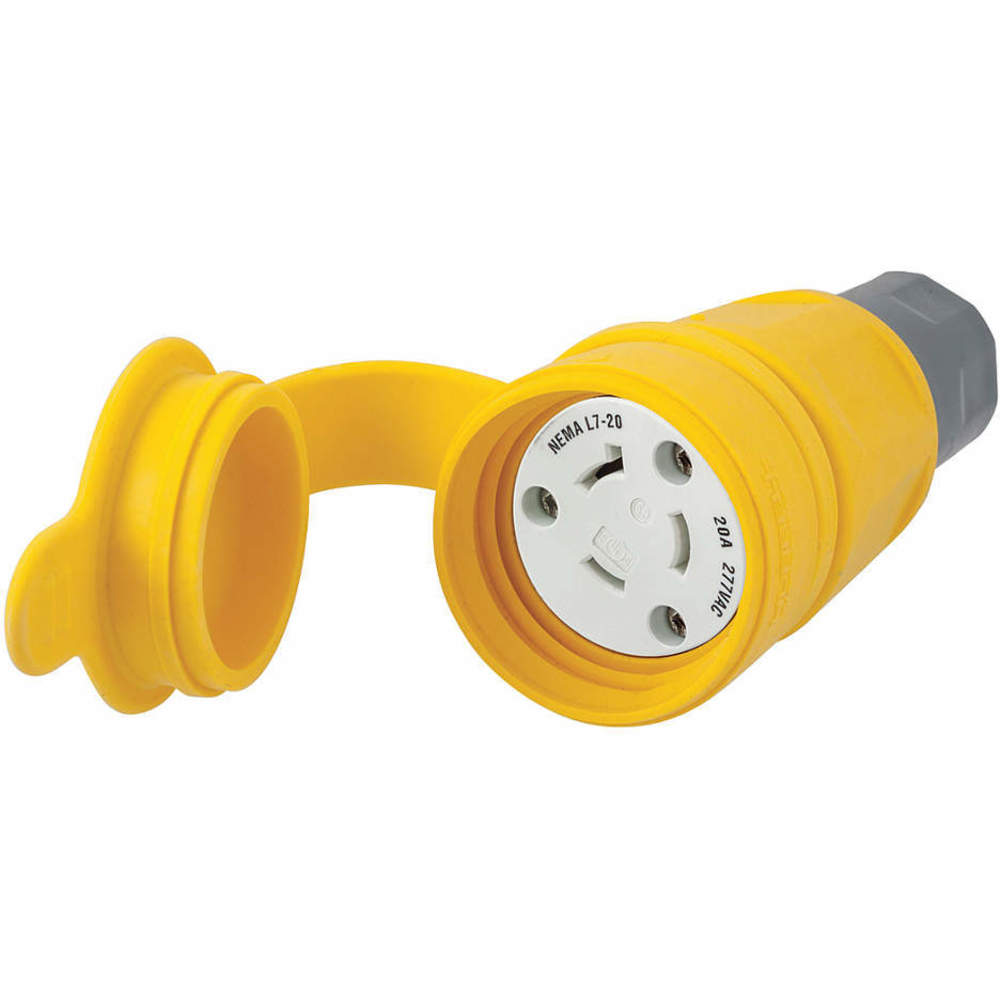

HBL27W49 | 2 | 277V AC | 1 | 20A | Yellow | 0.875" | 10 AWG | Yellow | €141.41 | |
 |

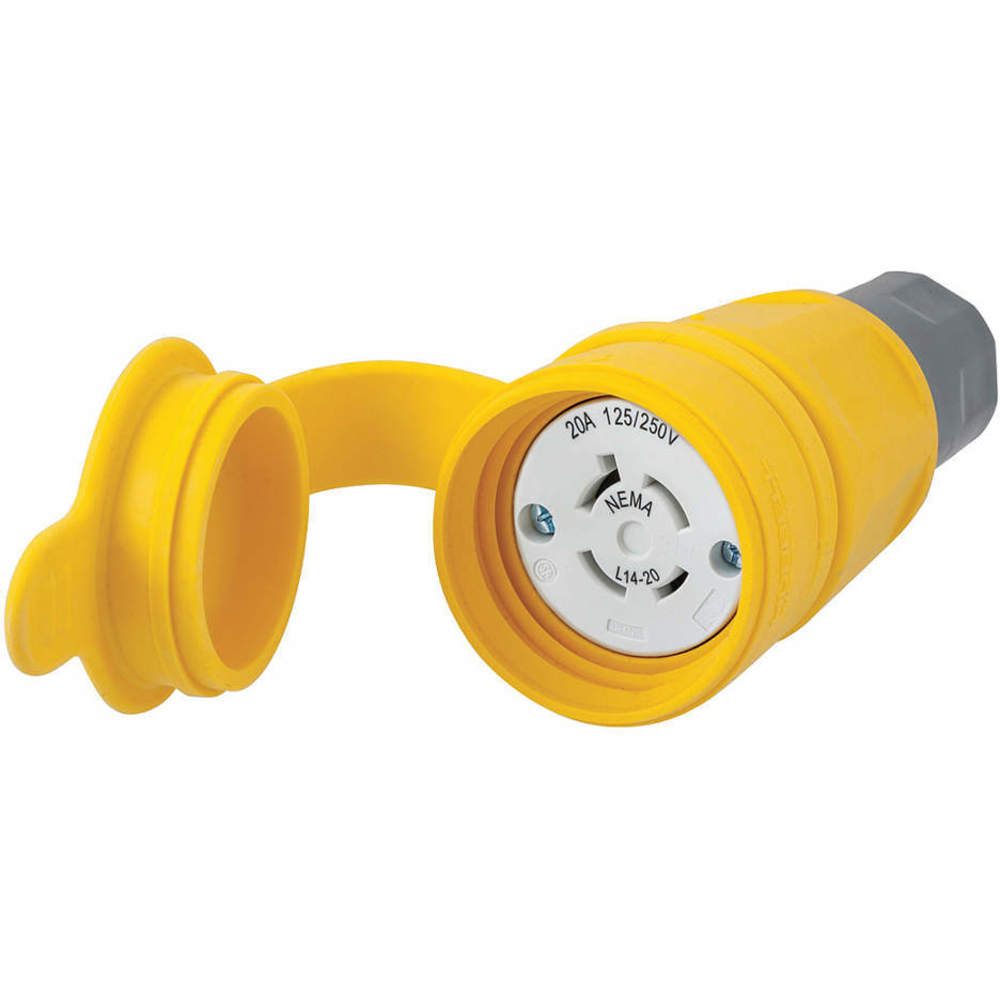

HBL27W74 | 3 | 125/250V AC | 1 | 20A | Yellow | 0.875" | 10 AWG | Yellow | €169.72 |
