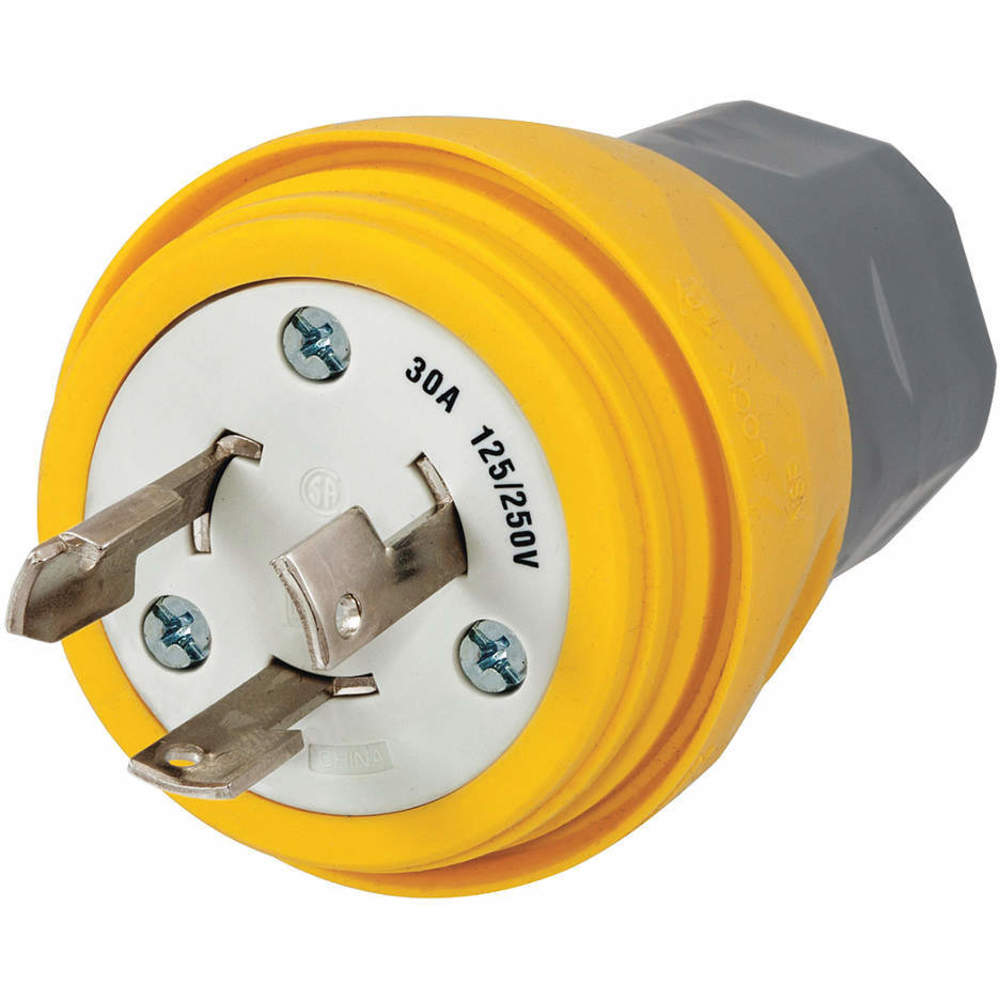

HUBBELL WIRING DEVICE-KELLEMS HBL28W08 Plug, 30A, 125/250VAC, 3 Pole, 3 Wire, Thermoplastic Elastomer, Yellow
Item: AH8XPQModel: HBL28W08Cross Ref: 39AW87
7 In Stock
Ships within 2 days via
10.00% off
€131.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Watertight Locking Plug |
| Amps | 30A |
| Antimicrobial | No |
| Blade Material | Nickel Plated Brass |
| Body Length | 2.77" |
| Color | Yellow |
| Connection Orientation | Straight |
| Cord Size | 0.375" to 1.125" |
| Current Rating | 30A |
| For Maximum Cable Diameter | 1" |
| For Minimum Cable Diameter | 0.375" |
| Grade | Grade Industrial |
| Height | 3.94" |
| Housing Color | Yellow |
| Housing Material | Thermoplastic Elastomer |
| Ip Rating | IP69K |
| Length | 2.77" |
| Market | Industrial |
| Material | TPE, Valox |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Nema Plug Configuration | Non NEMA |
| Number Of Blades | 3 |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Outside Diameter | 2.77" |
| Overall Length | 2.77" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl28w08.pdf |
| Resistance Properties | Chemical Resistant, Impact Resistant, Watertight |
| Shrouded | No |
| Type | Non Shrouded |
| Voltage Rating | 125/250V AC |
| Width | 2.77" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 12/3, 16/3, 14/4, 18/4, 18/5, 8/3, 8/4, 10/5 |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 10.01 |
| Ship length (cm) | 7.04 |
| Ship width (cm) | 7.04 |
| Country of Origin | US |
Product Details:
- Corrosion Resistant : No
- Special Features: Moisture, Dust and Weather Resistant
Documentation:
Product Variants
| Product | Model | Number Of Poles | Phase | Current Rating | Voltage Rating | Number Of Blades | Housing Color | Height | Cord Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

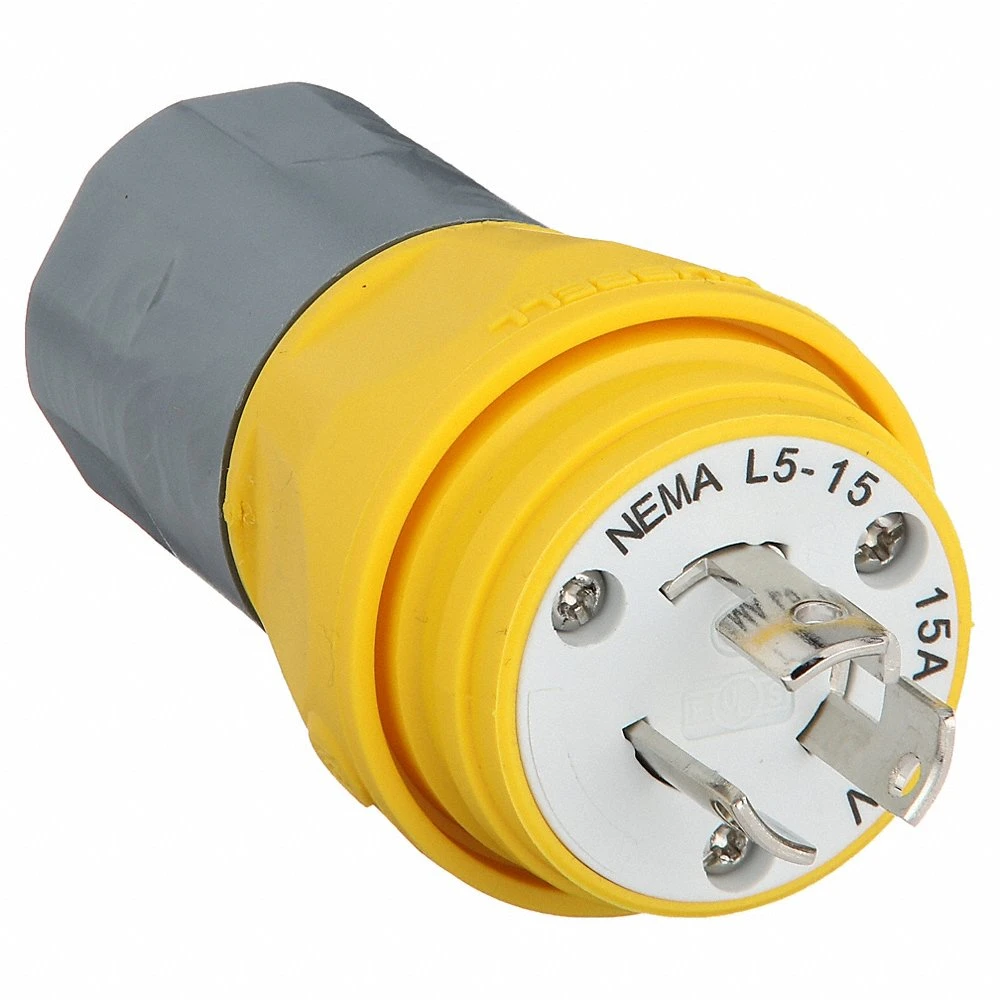

HBL24W47A | 2 | 1 | 15A | 125V AC | 3 | Yellow | 3.21" | 0.3" to 0.625" | €62.87 | |
 |

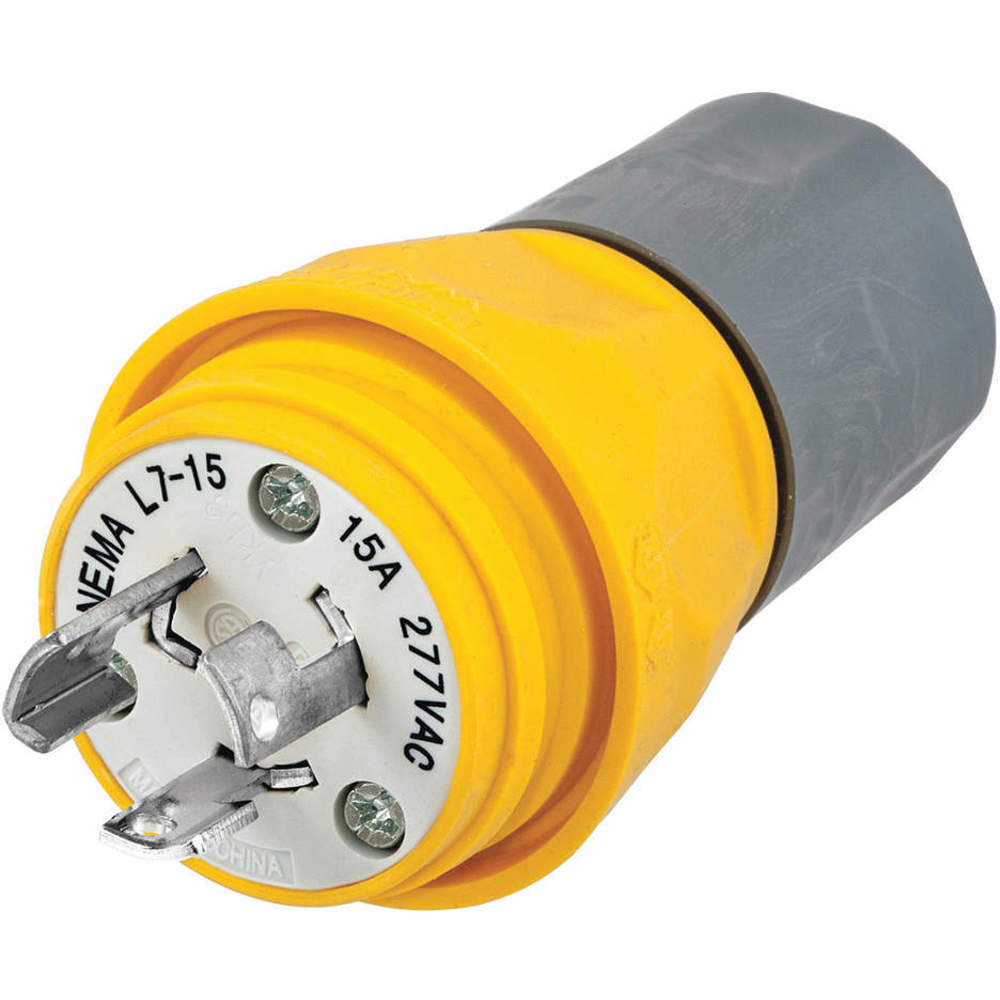

HBL24W49 | 2 | 1 | 15A | 250V AC | 3 | Yellow | 3.21" | 0.3" to 0.625" | €64.02 | |
 |

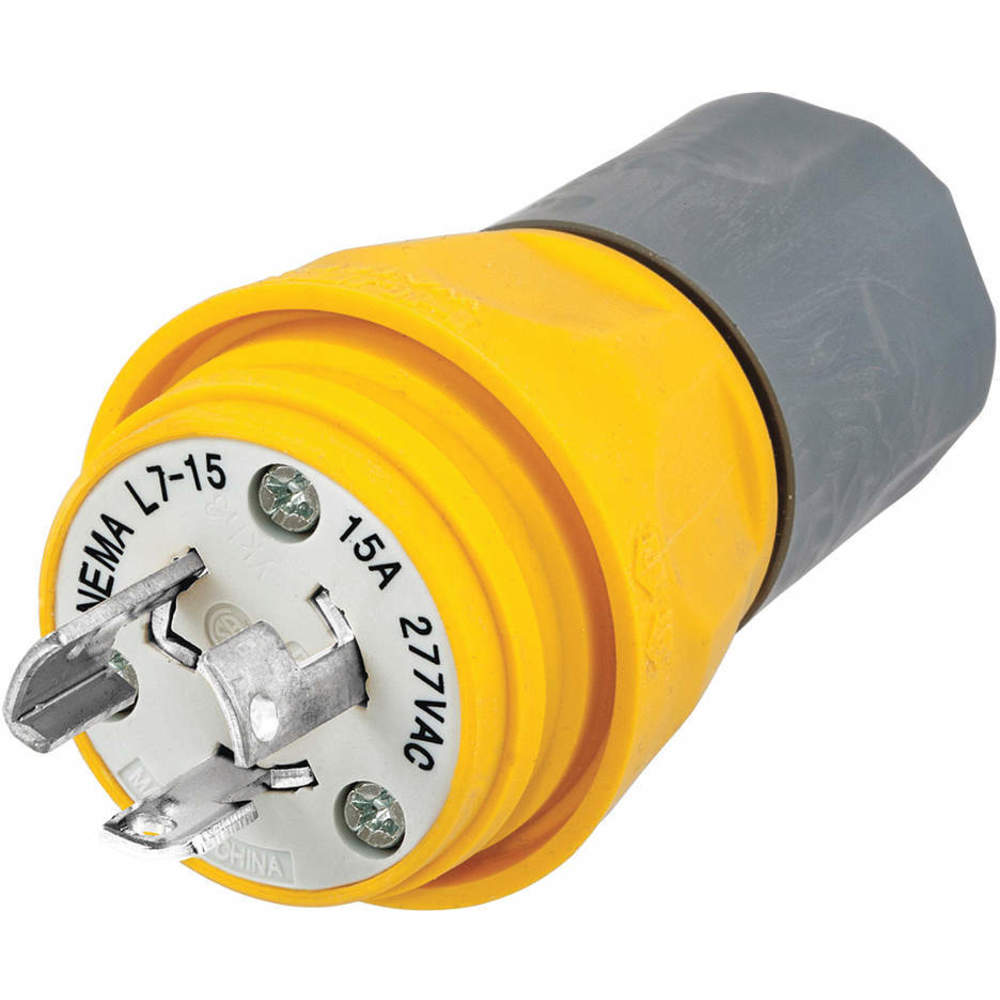

HBL24W34 | 2 | 1 | 15A | 277V AC | 3 | Yellow | 3.21" | 0.3" to 0.625" | €77.85 | |
 |

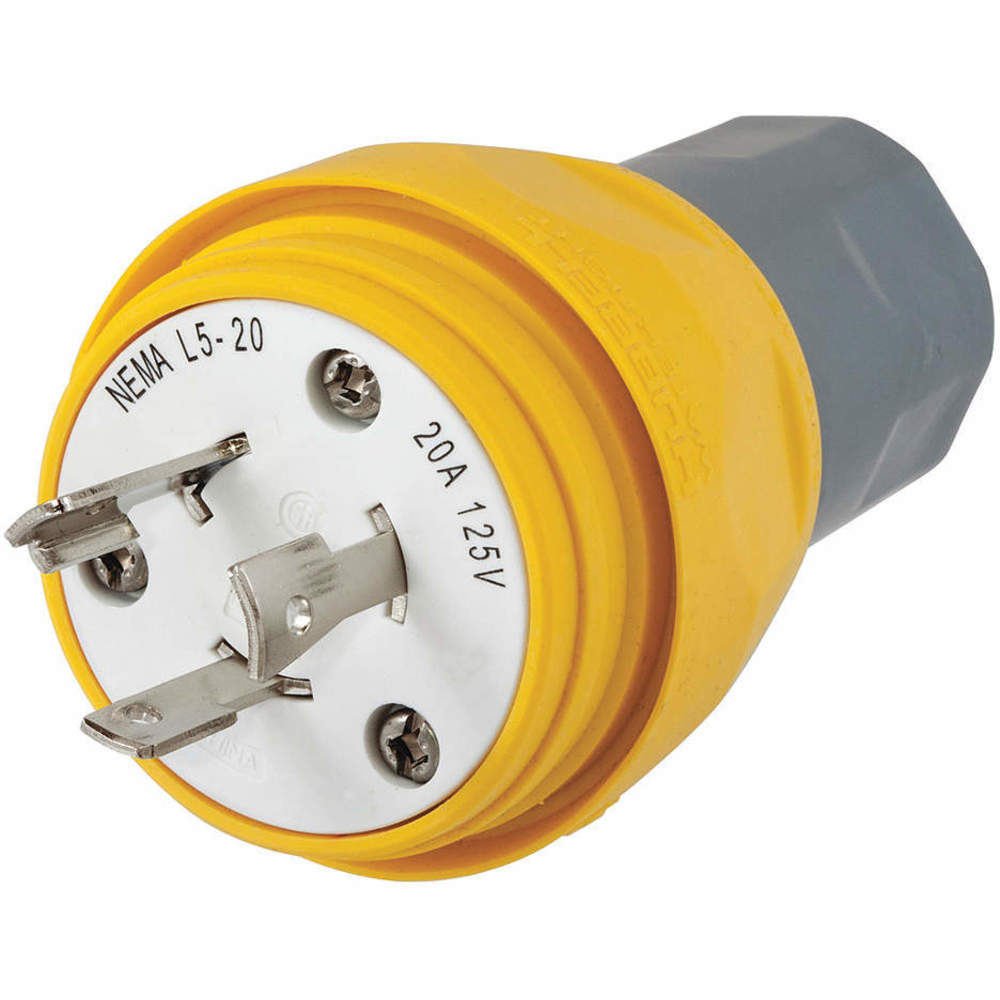

HBL26W47 | 2 | 1 | 20A | 125V AC | 3 | Yellow | 3 24/25" | 0.325" to 0.875" | €114.31 | |
 |

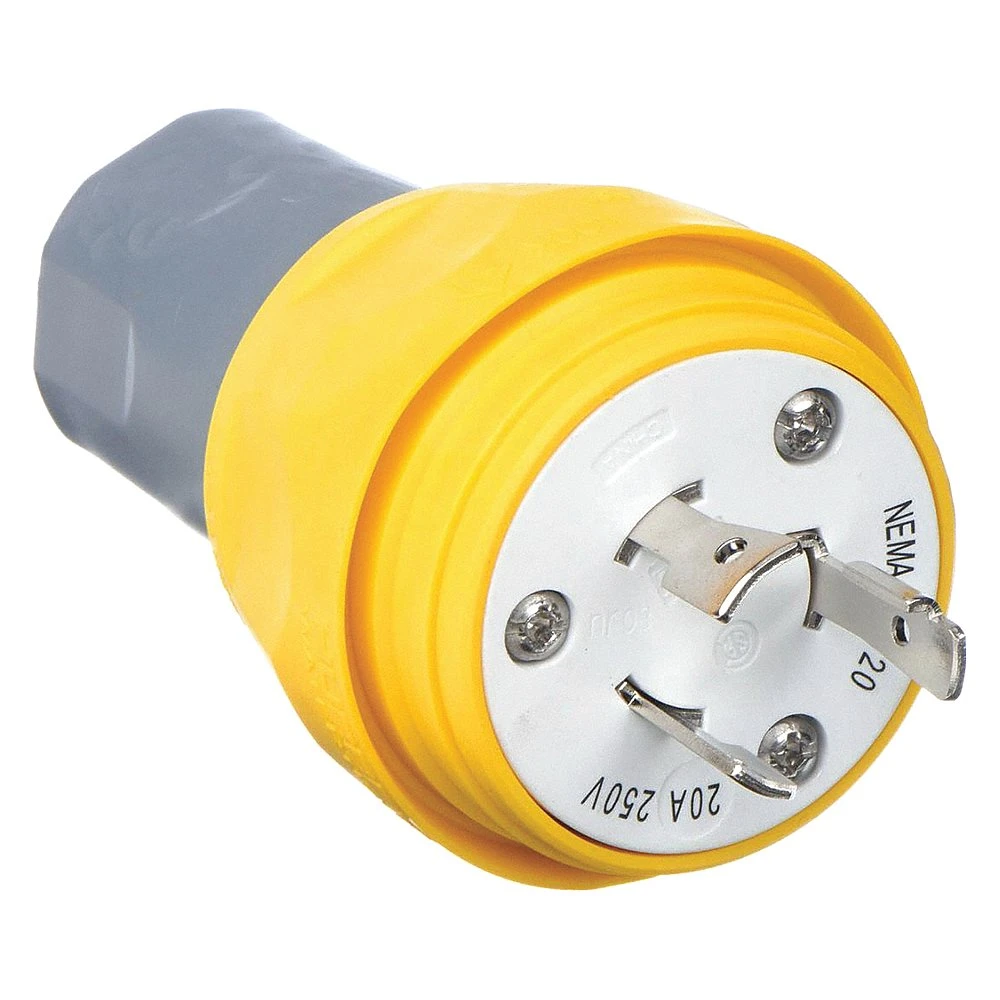

HBL26W48 | 2 | 1 | 20A | 250V AC | 3 | Yellow | 3 24/25" | 0.325" to 0.875" | €115.30 | |
 |

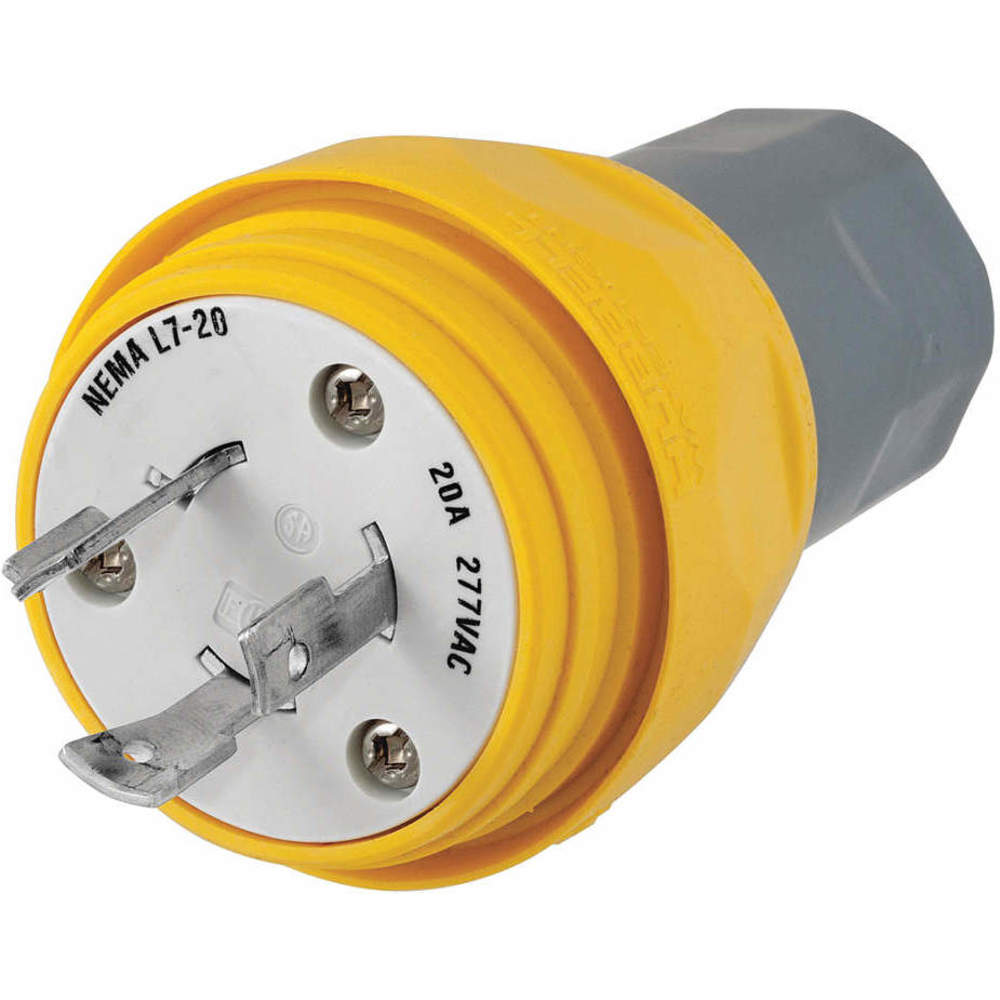

HBL26W49 | 2 | 1 | 20A | 277V AC | 3 | Yellow | 3 24/25" | 0.325" to 0.875" | €118.63 | |
 |

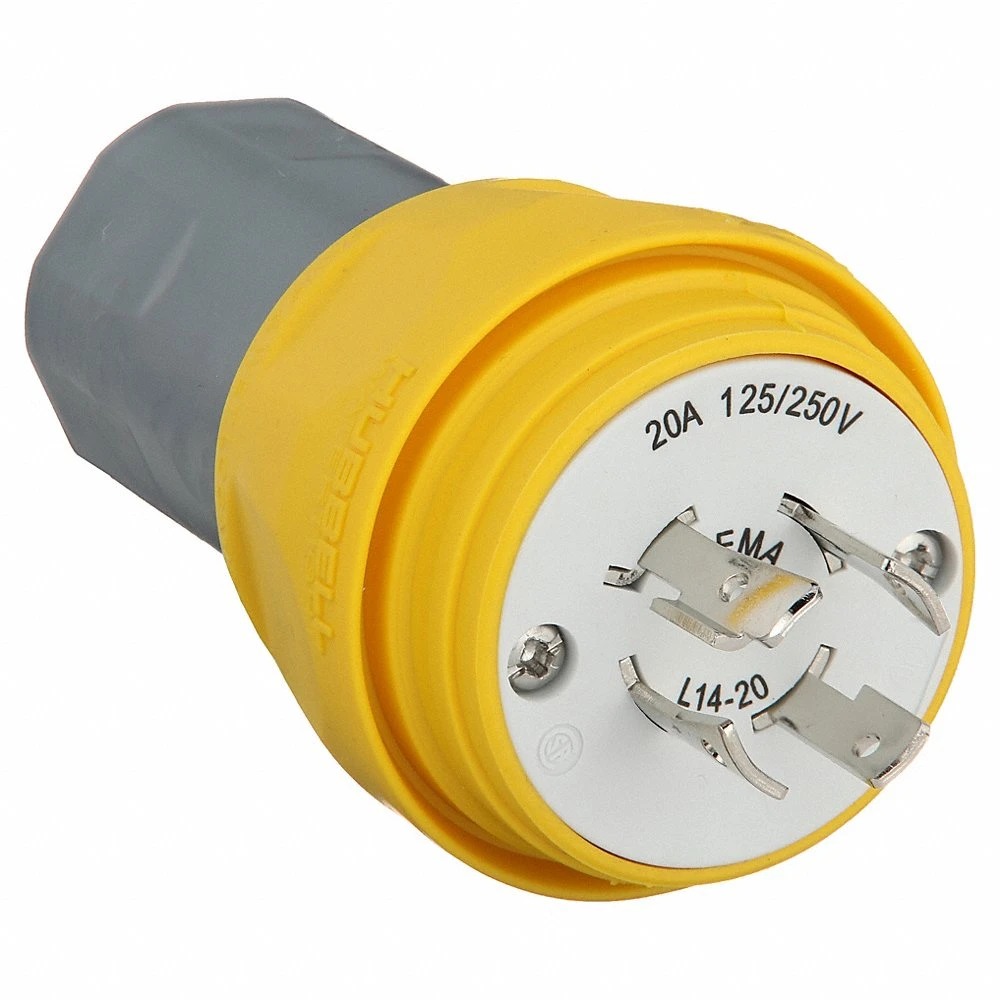

HBL26W74 | 3 | 1 | 20A | 125/250V AC | 4 | Yellow | 3 24/25" | 0.325" to 0.875" | €131.23 |
