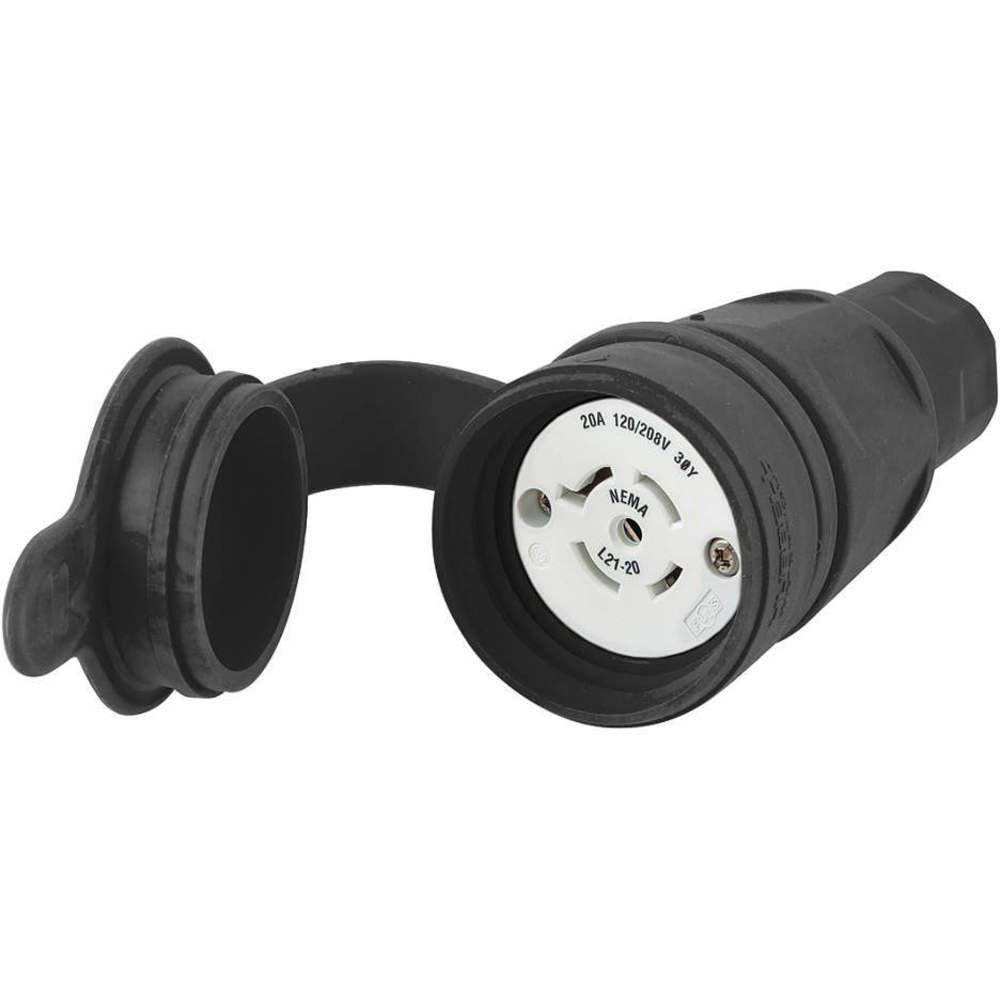

HUBBELL WIRING DEVICE-KELLEMS HBL27W81BK Connector, 20A, 3 Phase, Wye, 120/208VAC, 4 Pole, 5 Wire, Black
Item: AH8XQKModel: HBL27W81BKCross Ref: 39AX06
7 In Stock
Ships within 2 days via
5.00% off
€317.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Watertight Locking Connector |
| Amps | 20A |
| Anti Microbial | No |
| Cap Type | Press On Cap |
| Color | Black |
| Connection Orientation | Straight |
| Contact Material | Nickel-Plated Brass |
| Cord Size | 0.325" to 0.875" |
| For Max. Cable Dia. | 0.875" |
| For Min. Cable Dia. | 0.375" |
| Grade | Grade Industrial |
| Housing Color | Black |
| Housing Material | Thermoplastic Elastomer |
| Hp | 2 hp |
| Ip Rating | IP69K |
| Length | 2.51" |
| Market | Industrial |
| Material | TPE, Valox |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12 |
| Nema Plug Configuration | L21-20R |
| Nema Rating | NEMA L21-20R |
| Nema Receptacle Configuration | L21-20R |
| No. Of Poles | 4 |
| No. Of Wires | 5 |
| Outside Dia. | 2.51" |
| Overall Length | 2.51" |
| Phase | 3 |
| Power Indicator | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl27w81bk.pdf |
| Resistance Properties | Corrosion Resistant, Moisture Resistant, UV, Sunlight Resistant |
| Shrouded | Yes |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | HB |
| Voltage | 120/208V AC |
| Width | 2.51" |
| Wire Connection Type | Screw Terminal |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 14.45 |
| Ship length (cm) | 6.38 |
| Ship width (cm) | 6.38 |
| Country of Origin | US |
Product Details:
- Corrosion Resistant : Yes
- Special Features: Corrosion Resistant
Documentation:
Product Variants
| Product | Model | Phase | Housing Color | Amps | Cord Size | Max. Wire Size | Max. Operating Temp. | Min. Operating Temp. | Nema Receptacle Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL25W47A | 1 | Yellow | 15A | 0.3" to 0.625" | 10 AWG | 60°C | -40°C | L5-15R | €82.79 | |
 |
HBL25W49 | 1 | Yellow | 15A | 0.3" to 0.625" | 10 AWG | 60°C | -40°C | L6-15R | €104.15 | |
 |
HBL25W34 | 1 | Yellow | 15A | 0.3" to 0.625" | 10 AWG | 60°C | -40°C | L7-15R | €121.56 | |
 |
HBL27W47 | 1 | Yellow | 20A | 0.325" to 0.875" | 10 AWG | 60°C | -40°C | L5-20R | €141.41 | |
 |
HBL27W48 | 1 | Yellow | 20A | 0.325" to 0.875" | 10 AWG | 60°C | -40°C | L6-20R | €138.37 | |
 |
HBL27W49 | 1 | Yellow | 20A | 0.325" to 0.875" | 10 AWG | 60°C | -40°C | L7-20R | €141.41 | |
 |
HBL27W74 | 1 | Yellow | 20A | 0.325" to 0.875" | 10 AWG | 60°C | -40°C | L14-20R | €169.72 |
