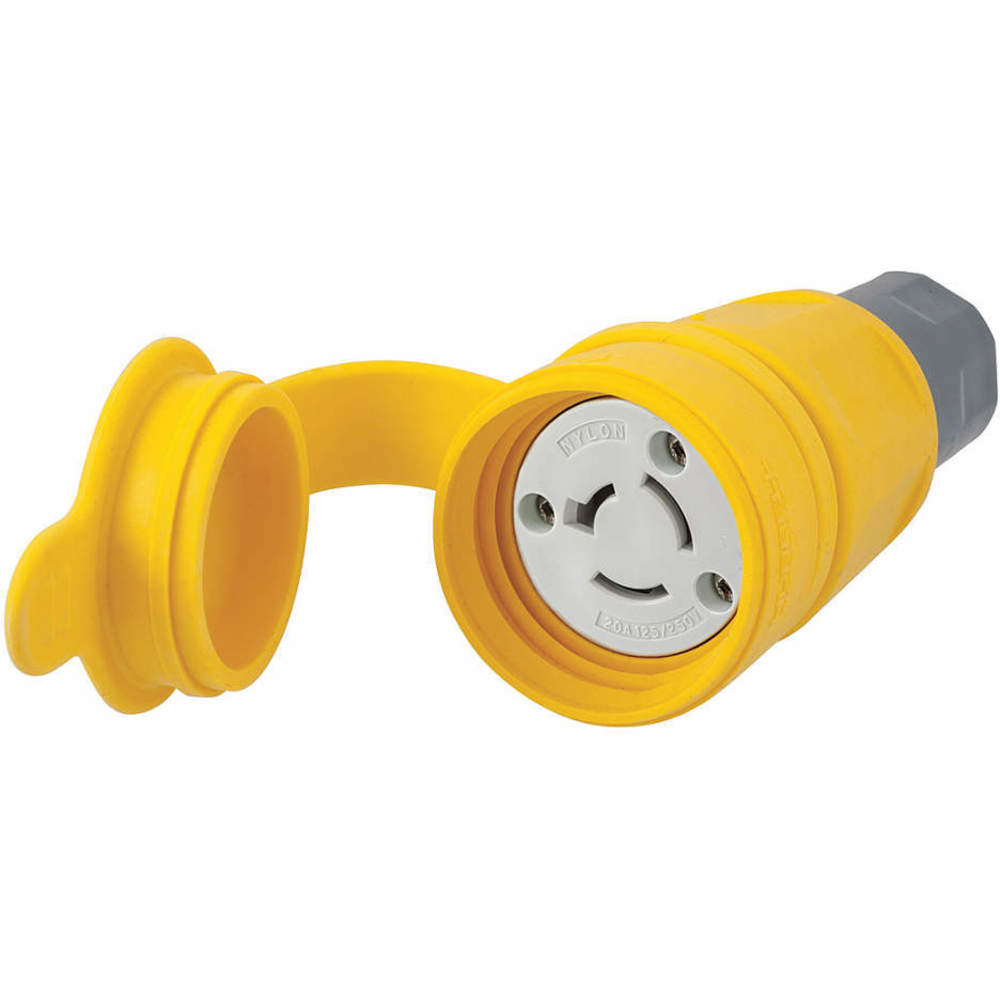

HUBBELL WIRING DEVICE-KELLEMS HBL27W08 Connector, 20A, 125/250VAC, 3 Pole, 3 Wire, Thermoplastic Elastomer, Yellow
Item: AH8XPMModel: HBL27W08Cross Ref: 39AW84
7 In Stock
Ships within 2 days via
10.00% off
€108.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Watertight Locking Connector |
| Amps | 20A |
| Antimicrobial | No |
| Cap Type | Press On Cap |
| Color | Yellow |
| Connection Orientation | Straight |
| Contact Material | Nickel-Plated Brass |
| Cord Size | 0.325" to 0.875" |
| Current Rating | 20A |
| For Maximum Cable Diameter | 0.875" |
| For Minimum Cable Diameter | 0.375" |
| Grade | Grade Industrial |
| Height | 5.69" |
| Housing Color | Yellow |
| Housing Material | Thermoplastic Elastomer |
| Ip Rating | IP69K |
| Length | 2.51" |
| Market | Industrial |
| Material | TPE, Valox |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 10 AWG |
| Midget Locking | No |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 18 AWG |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12 |
| Nema Plug Configuration | NON-NEMA, 20A |
| Nema Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Nema Receptacle Configuration | Non-NEMA |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Outside Diameter | 2.51" |
| Overall Length | 2.51" |
| Phase | 1 |
| Power Indicating Light | No |
| Power Indicator | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl27w08.pdf |
| Resistance Properties | Corrosion Resistant, Moisture Resistant,UV/Sunlight Resistant |
| Shrouded | Yes |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 125/250V AC |
| Width | 2.51" |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 14.45 |
| Ship length (cm) | 6.38 |
| Ship width (cm) | 6.38 |
| Country of Origin | US |
Product Details:
- Corrosion Resistant : Yes
- Special Features: Corrosion Resistant
Documentation:
Product Variants
| Product | Model | Current Rating | Voltage Rating | Phase | Number Of Poles | Number Of Wires | Housing Color | Amps | Cord Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL25W47A | 15A | 125V AC | 1 | 2 | 3 | Yellow | 15A | 0.3" to 0.625" | €82.79 | |
 |
HBL25W49 | 15A | 250V AC | 1 | 2 | 3 | Yellow | 15A | 0.3" to 0.625" | €104.15 | |
 |
HBL25W34 | 15A | 277V AC | 1 | 2 | 3 | Yellow | 15A | 0.3" to 0.625" | €121.56 | |
 |
HBL27W47 | 20A | 125V AC | 1 | 2 | 3 | Yellow | 20A | 0.325" to 0.875" | €141.41 | |
 |
HBL27W48 | 20A | 250V AC | 1 | 2 | 3 | Yellow | 20A | 0.325" to 0.875" | €138.37 | |
 |
HBL27W49 | 20A | 277V AC | 1 | 2 | 3 | Yellow | 20A | 0.325" to 0.875" | €141.41 | |
 |
HBL27W74 | 20A | 125/250V AC | 1 | 3 | 4 | Yellow | 20A | 0.325" to 0.875" | €169.72 |
