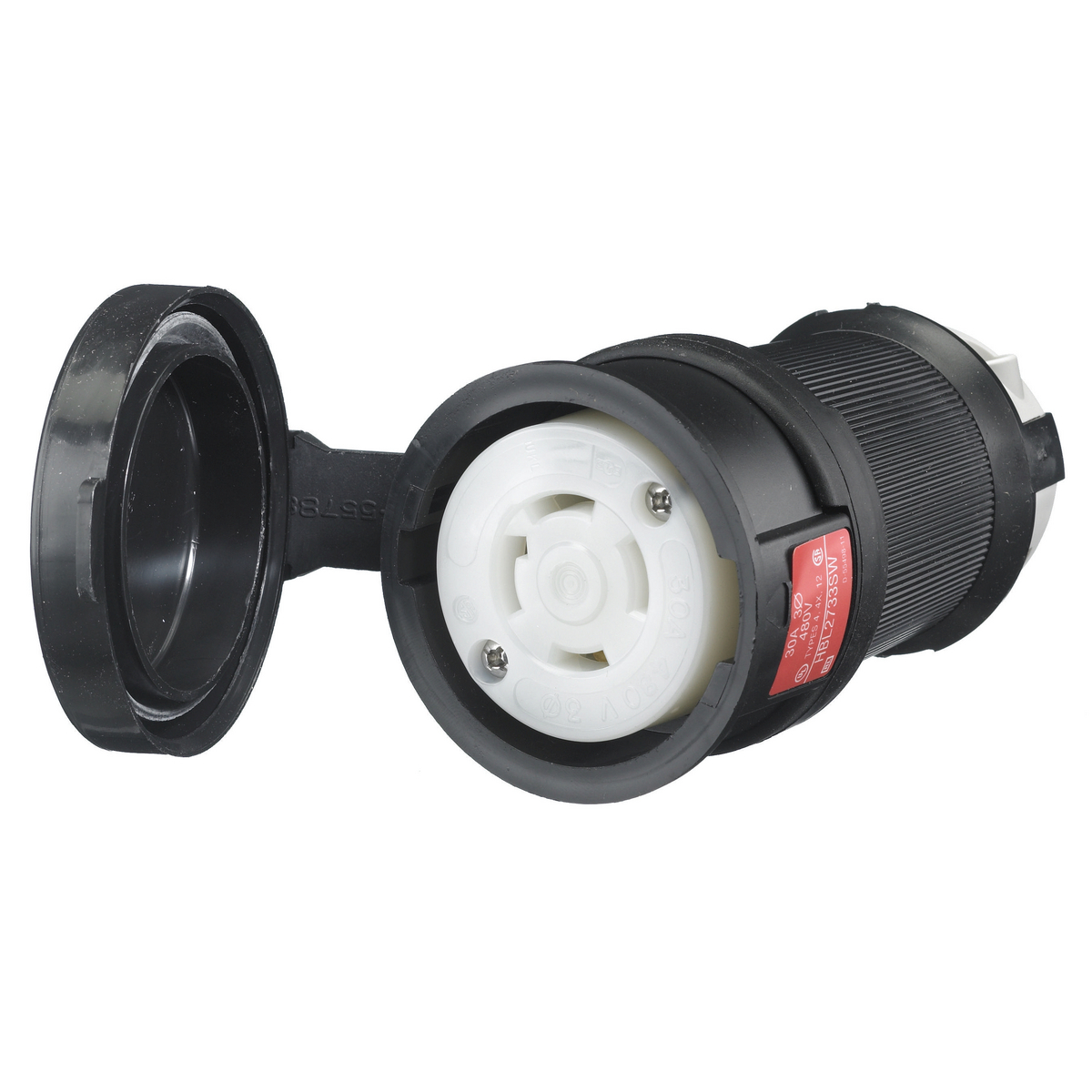

HUBBELL WIRING DEVICE-KELLEMS HBL2733SW Watertight Female Connector,, 30A, 3-Phase, Delta, 480VAC, 3-Pole
Item: AD6ZTZModel: HBL2733SWCross Ref: 4CV54
7 In Stock
Ships within 2 days via
5.00% off
€309.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Watertight Shrouded Connector |
| Amps | 30A |
| Anti Microbial | No |
| Cap Type | Press On Cap |
| Color | Black, White |
| Connection Orientation | Straight |
| Connectivity | Pressure Terminal Screws |
| Contact Material | Brass |
| Cord Dia. Range | 0.350"-1.150" |
| Cord Size | 0.35" to 1.15" |
| Dielectric Strength | Withstands 2,000V minimum |
| For Max. Cable Dia. | 1.15" |
| For Min. Cable Dia. | 0.35" |
| Grade | Industrial, Commercial |
| Grounding | Grounded |
| Height | 4 2/5" |
| Housing Color | Black, White |
| Housing Material | Valox |
| Hp | 2 hp |
| Insulation | Insulated Body |
| Insulation Material | Thermoplastic |
| Ip Rating | IP66 |
| Length | 2 3/4" |
| Market | Industrial |
| Material | Composite |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 8 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 16 AWG |
| Mounting | Cord Mounted |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 12 |
| Nema Rating | NEMA L16-30R |
| Nema Receptacle Configuration | L16-30R |
| No. Of Poles | 3 |
| No. Of Wires | 4 |
| Outside Dia. | 2.75" |
| Overall Length | 2.75" |
| Phase | 3 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2733sw.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Shrouded | Yes |
| Type | Shrouded |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 480V , 480V AC |
| Width | 2 3/4" |
| Wire Connection Type | Screw Terminal |
| Wire Size | 16 AWG to 8 AWG |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 6.99 |
| Ship width (cm) | 6.99 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Voltage | Phase | Amps | For Min. Cable Dia. | For Max. Cable Dia. | Cord Size | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2313SW | 2 | 125V | 1 | 20A | - | - | 0.36" to 0.93" | NEMA L5-20R | €220.09 | |
 |
HBL2323SW | 2 | 250V AC | 1 | 20A | 0.36" | 0.93" | 0.36" to 0.93" | NEMA L6-20R | €194.63 | |
 |
HBL2333SW | 2 | 277V AC | 1 | 20A | 0.36" | 0.93" | 0.36" to 0.93" | NEMA L7-20R | €193.77 | |
 |
HBL2413SW | 3 | 125/250V AC | 3 | 20A | 0.35" | 1.15" | 0.35" to 1.15" | NEMA L14-20R | €246.50 | |
 |
HBL2423SW | 3 | 250V AC | 3 | 20A | 0.35" | 1.15" | 0.35" to 1.15" | NEMA L15-20R | €265.36 | |
 |
HBL2433SW | 3 | 480V AC | 3 | 20A | 0.35" | 1.15" | 0.35" to 1.15" | NEMA L16-20R | €255.58 | |
 |
HBL2513SW | 4 | 120/208V AC | 3 | 20A | 0.35" | 1.15" | 0.35" to 1.15" | NEMA L21-20R | €252.38 |
