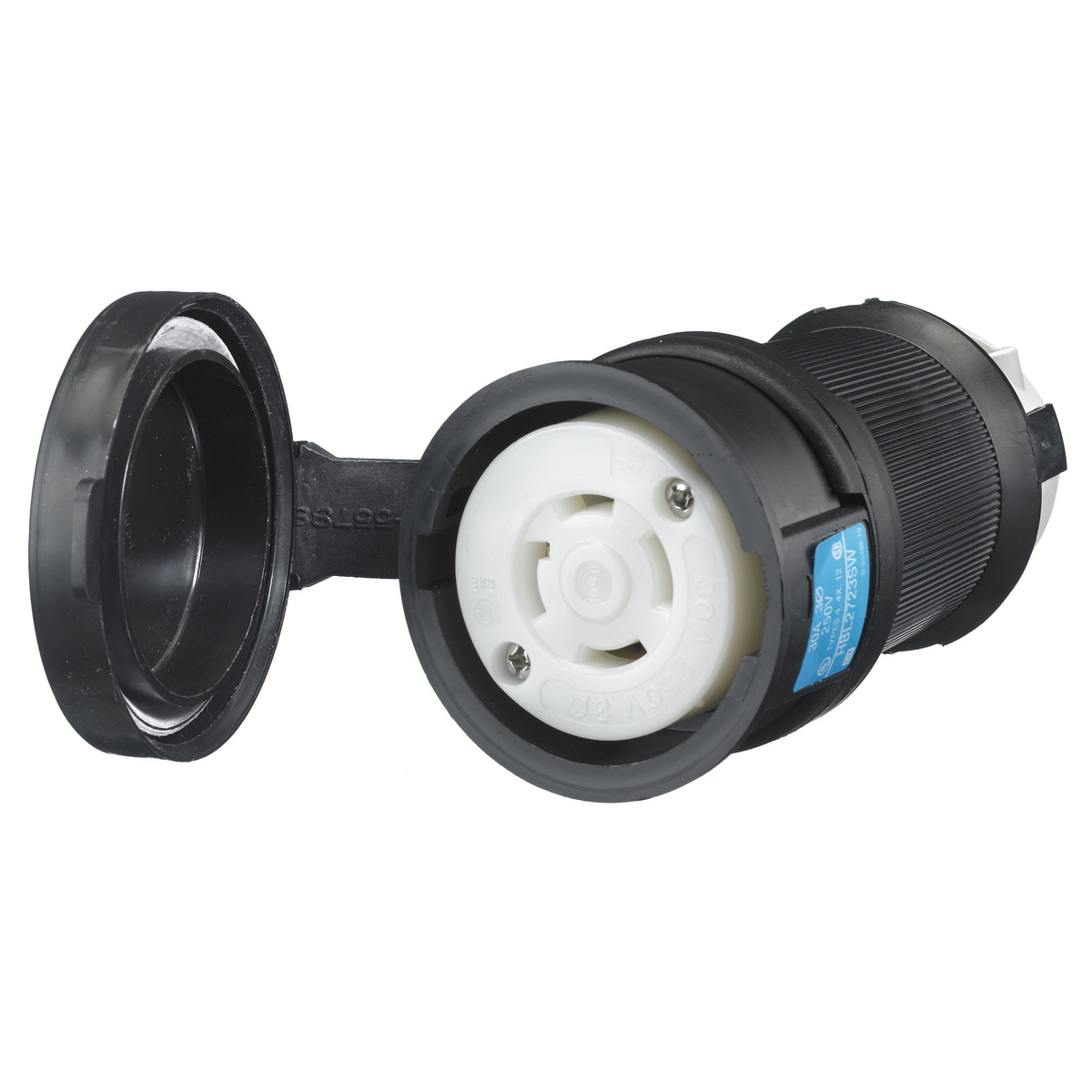

HUBBELL WIRING DEVICE-KELLEMS HBL2723SW Watertight Female Connector, 30A, 3-Phase, Delta, 250VAC, 3-Pole
Item: AD6ZTQModel: HBL2723SWCross Ref: 4CV46
7 In Stock
Ships within 2 days via
10.00% off
€253.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Watertight Shrouded Connector |
| Amps | 30A |
| Antimicrobial | No |
| Cap Type | Press On Cap |
| Color | Black, White |
| Connection Orientation | Straight |
| Connectivity | Pressure Terminal Screws |
| Contact Material | Brass |
| Cord Dia. Range | 0.350"-1.150" |
| Cord Size | 0.35" to 1.15" |
| Current Rating | 30A |
| Dielectric Strength | Withstands 2,000V minimum |
| For Maximum Cable Diameter | 1.15" |
| For Minimum Cable Diameter | 0.35" |
| Grade | Industrial, Commercial |
| Grounding | Grounded |
| Height | 4 2/5" |
| Horsepower Rating | 3 hp |
| Housing Color | Black, White |
| Housing Material | Valox |
| Insulation | Insulated Body |
| Insulation Material | Thermoplastic |
| Ip Rating | IP66 |
| Length | 2 3/4" |
| Market | Industrial |
| Material | Composite |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 8 AWG |
| Midget Locking | No |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 16 AWG |
| Mounting | Cord Mounted |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 12 |
| Nema Rating | NEMA L15-30R |
| Nema Receptacle Configuration | L15-30R |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Outside Diameter | 2.75" |
| Overall Length | 2.75" |
| Phase | 3 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2723sw.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Shrouded | Yes |
| Type | Shrouded |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 250V |
| Voltage Rating | 250V AC |
| Width | 2 3/4" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 16 AWG to 8 AWG |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 11.18 |
| Ship length (cm) | 6.99 |
| Ship width (cm) | 6.99 |
| HS code | 8536904000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Number Of Poles | Current Rating | Voltage Rating | Number Of Wires | Nema Rating | Amps | Cord Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2313SW | 1 | 2 | - | - | - | NEMA L5-20R | 20A | 0.36" to 0.93" | €220.09 | |
 |
HBL2323SW | 1 | 2 | 20A | 250V AC | 3 | NEMA L6-20R | 20A | 0.36" to 0.93" | €194.63 | |
 |
HBL2333SW | 1 | 2 | 20A | 277V AC | 3 | NEMA L7-20R | 20A | 0.36" to 0.93" | €193.77 | |
 |
HBL2413SW | 3 | 3 | 20A | 125/250V AC | 4 | NEMA L14-20R | 20A | 0.35" to 1.15" | €246.50 | |
 |
HBL2423SW | 3 | 3 | 20A | 250V AC | 4 | NEMA L15-20R | 20A | 0.35" to 1.15" | €265.36 | |
 |
HBL2433SW | 3 | 3 | 20A | 480V AC | 4 | NEMA L16-20R | 20A | 0.35" to 1.15" | €255.58 | |
 |
HBL2513SW | 3 | 4 | 20A | 120/208V AC | 5 | NEMA L21-20R | 20A | 0.35" to 1.15" | €252.38 |
