HUBBELL WIRING DEVICE-KELLEMS HBL2721 Standard Non-Shrouded Locking Plug, L15-30P, 3-Pole | AD6RPL 4A271

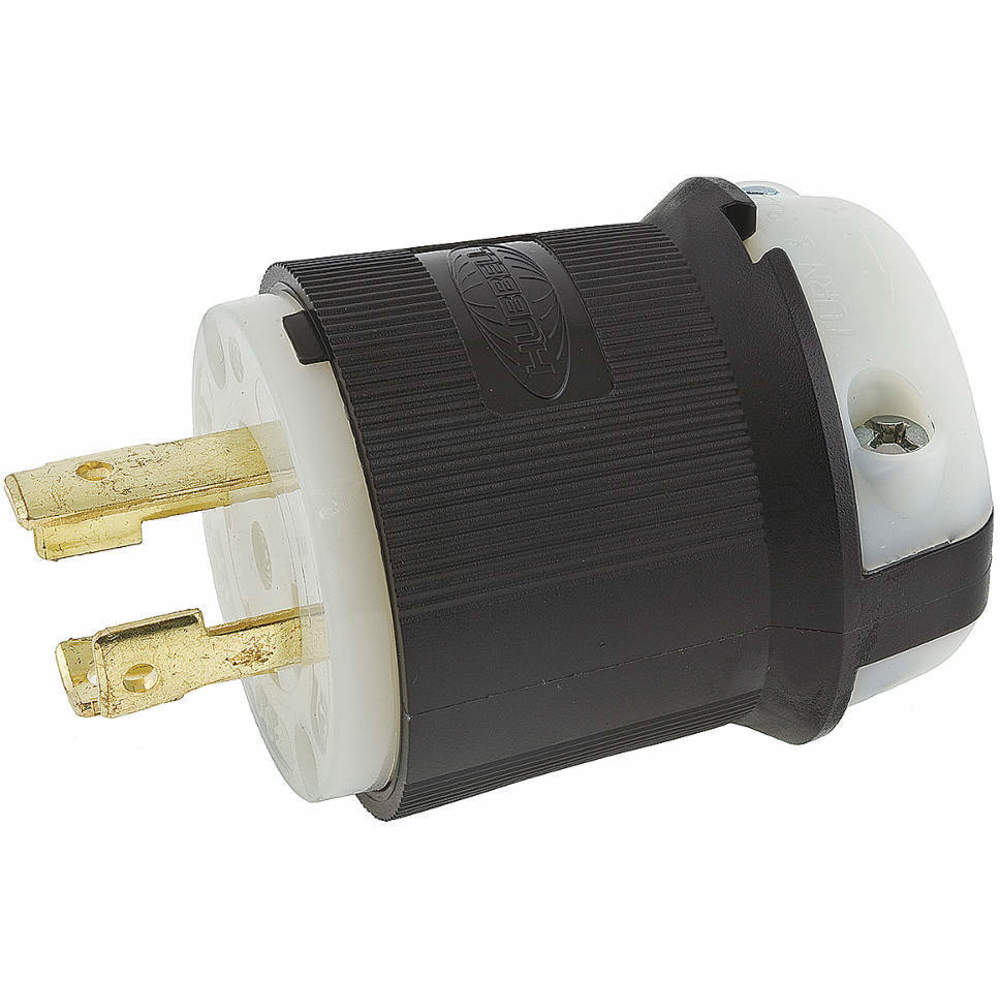

HUBBELL WIRING DEVICE-KELLEMS HBL2721 Standard Non-Shrouded Locking Plug, L15-30P, 3-Pole

Item: AD6RPLModel: HBL2721Cross Ref: 4A271
Check Availability
In Stock

Get it by Friday, Aug 28

€64.02 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Locking Plug
Anti Microbial No
Blade Material Brass
Body Length 2.33"
Cable Range 0.35" to 1.15"
Color Black, White
Connection Orientation Straight
Connectivity Pressure Terminal Screws
Cord Dia. Range 0.350"-1.150"
Cord Size 0.35" to 1.15"
Dielectric Strength Withstands 2,000V minimum
Face Dia. 2.21"
For Environment Dry
For Location Indoor
For Max. Cable Dia. 1.15"
For Min. Cable Dia. 0.35"
Grade Grade Industrial
Grounding Grounded
Height 2 3/4"
Housing Color Black, White
Housing Material Nylon
Hp 3 hp
Ip Rating IP20
Length 2.33"
Market Industrial
Material Nylon
Max. Hp 3 hp
Max. Operating Temp. 75°C
Max. Wire Size 8 AWG
Min. Operating Temp. -40°C
Min. Wire Size 16 AWG
Mounting Cord Mounted
Nema Plug Configuration L15-30P
Nema Rating NEMA L15-30P
No. Of Blades 4
No. Of Poles 3
No. Of Wires 4
Outside Dia. 2.33"
Overall Length 2.33"
Phase 3
Polarized Yes
Product Datasheet hubbell-wiring-device-kellems-hbl2721.pdf
Resistance Properties Chemical Resistant, Impact Resistant
Shrouded No
Type Non Shrouded
Ul 94 Flammability Rating HB
Voltage 250V AC
Wattage 7500 W
Watts 7500 W
Width 2.33"
Wire Connection Type Screw Terminal
Wire Size 16 AWG to 8 AWG
Wiring Style Standard
Wiring Type Standard

Shipping Info:

Ship weight (kg) 0.14
Ship height (cm)5.92
Ship length (cm)5.92
Ship width (cm)5.92
HS code8536698000
Country of OriginUS

Product Details:

    • Hubbell Kellems HBL5666C plug that can be pushed onto a locking female receptor / connector and then twisted to lock for preventing unwanted loosening of terminals
    • Features superior cord grip for protection against excessive strain and a clear, funnel-shaped wire entry for clear and easy installation setup
    • Furnished with a dust shield which protects the wiring chambers from external contaminants, dust and debris
    • Equipped with offsetting cord grip clamps on individual conductors and outer card jackets

Documentation:

Datasheet

Product Variants

ProductModelNo. Of PolesPhaseColorAmpsMaterialWire SizeVoltageTypePrice
HUBBELL WIRING DEVICE-KELLEMS HBL4720CBK Plug, 15A, 125V, 2 Pole, 3 Wire Grounding | AA9JFY 1DJJ1 HBL4720CBK21Black15ANylon18 AWG to 10 AWG125V ACNon Shrouded€42.38
HUBBELL WIRING DEVICE-KELLEMS HBL2311BK Male Plug, 20A, 125V, 2-Pole, 3-Wire Grounding | AA9JGA 1DJJ3 HBL2311BK21Black20ANylon16 AWG to 8 AWG125V ACNon Shrouded€49.30
HUBBELL WIRING DEVICE-KELLEMS HBL2611BK Male Plug, 30A, 125V, 2-Pole, 3-Wire Grounding | AA9JGC 1DJJ5 HBL2611BK21Black30ANylon16 AWG to 8 AWG125V ACNon Shrouded€75.97
HUBBELL WIRING DEVICE-KELLEMS HBL2321BK Plug, 20A, 250VAC, 2-Pole, 3-Wire Grounding | AA9JGE 1DJJ7 HBL2321BK21Black20ANylon16 AWG to 8 AWG250V ACNon Shrouded€45.37
HUBBELL WIRING DEVICE-KELLEMS HBL2621BK Plug, 30A, 250VAC, 2 Pole, 3 Wire Grounding | AA9JGG 1DJJ9 HBL2621BK21Black30ANylon16 AWG to 8 AWG250V ACNon Shrouded€83.47
HUBBELL WIRING DEVICE-KELLEMS HBL2511BK Plug, 20A, 3 Phase, 120/208VAC, 4 Pole, 5 Wire Grounding | AA9JGJ 1DJK2 HBL2511BK43Black20ANylon16 AWG to 8 AWG120/208V ACNon Shrouded€90.22
HUBBELL WIRING DEVICE-KELLEMS HBL2811BK Plug, 30A, 3 Phase, 120/208VAC, 4 Pole, 5 Wire Grounding | AA9JGL 1DJK4 HBL2811BK43Black30ANylon16 AWG to 8 AWG120/208V ACNon Shrouded€112.16
