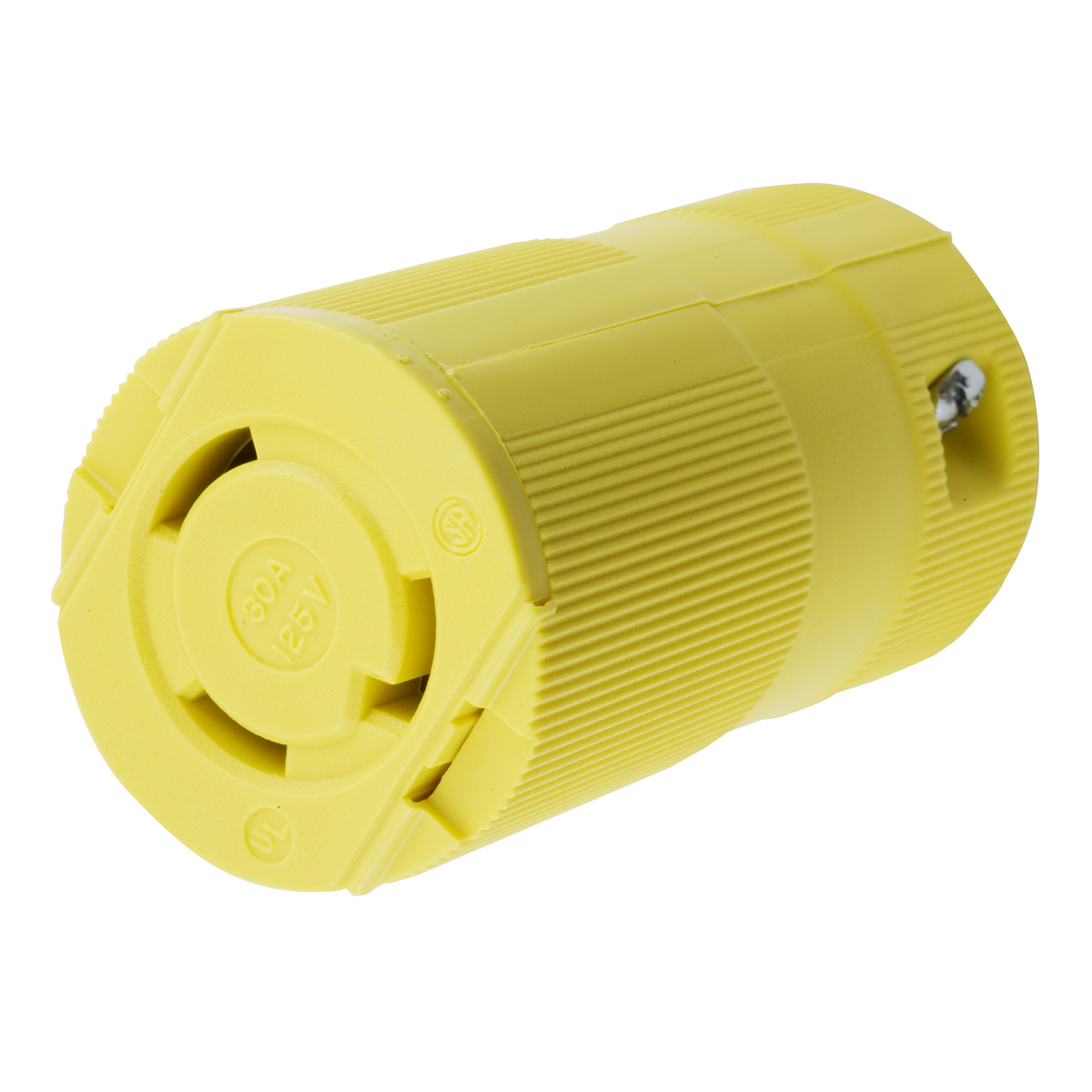

HUBBELL WIRING DEVICE-KELLEMS HBL2613VY Locking Connector, 125V AC, 2 Poles, Yellow, 3 Wires
Item: CE6TEDModel: HBL2613VYCross Ref: 49YK30
7 In Stock
Ships within 2 days via
5.00% off
€81.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 30A |
| Cable Range | 0.59" to 0.93" |
| Cap Type | No Cap, Cover |
| Color | Yellow |
| Connection Orientation | Straight |
| Connectivity | Pressure Terminal Screws |
| Contact Material | Brass |
| Cord Dia. Range | 0.590"-0.930" |
| Dielectric Strength | Withstands 2,000V minimum |
| For Environment | Dry |
| For Location | Indoor |
| For Max. Cable Dia. | 0.93" |
| For Min. Cable Dia. | 0.56" |
| Grounding | Grounded |
| Height | 3 1/2" |
| Housing Color | Yellow |
| Housing Material | Nylon |
| Hp | 2 hp |
| Insulation | Insulated Body |
| Ip Rating | IP20 |
| Market | Industrial |
| Material | Nylon |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 8 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Mounting | Cord Mounted |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA L5-30R |
| Nema Receptacle Configuration | L5-30R |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Outside Dia. | 1.781" |
| Overall Length | 1.78" |
| Phase | 1 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2613vy.pdf |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| Ul 94 Flammability Rating | HB |
| Voltage | 125V AC |
| Width | 1.78" |
| Wire Connection Type | Screw Terminal |
| Wire Size | 14 AWG to 8 AWG |
| Wiring Style | Hinged |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 4.52 |
| Ship length (cm) | 4.52 |
| Ship width (cm) | 4.52 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Voltage | Color | Phase | Amps | Housing Color | Wire Size | For Min. Cable Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

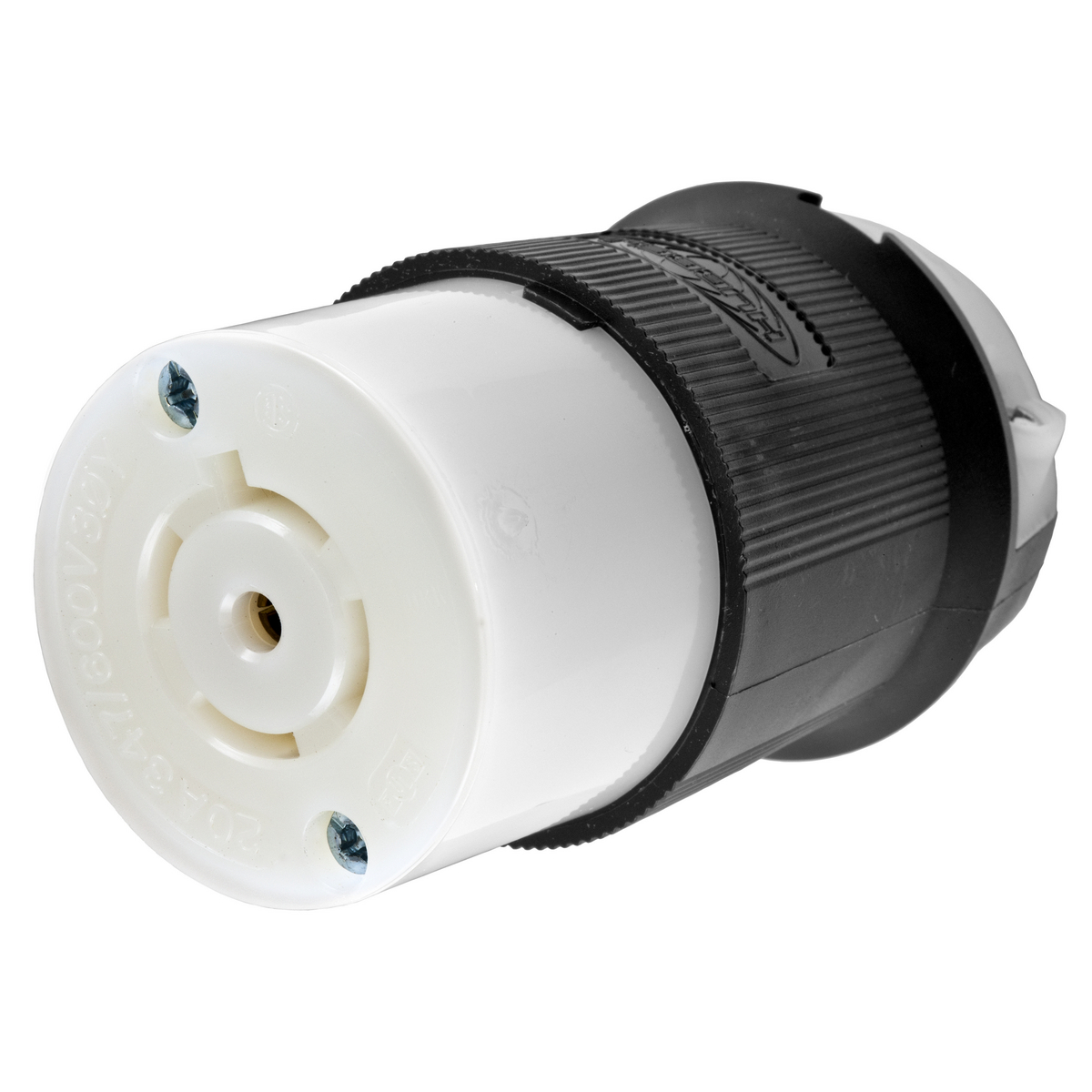

HBL2533 | 4 | 347/600V AC | Black, White | 3 | 20A | Black, White | 16 AWG to 8 AWG | 0.35" | €162.32 |
