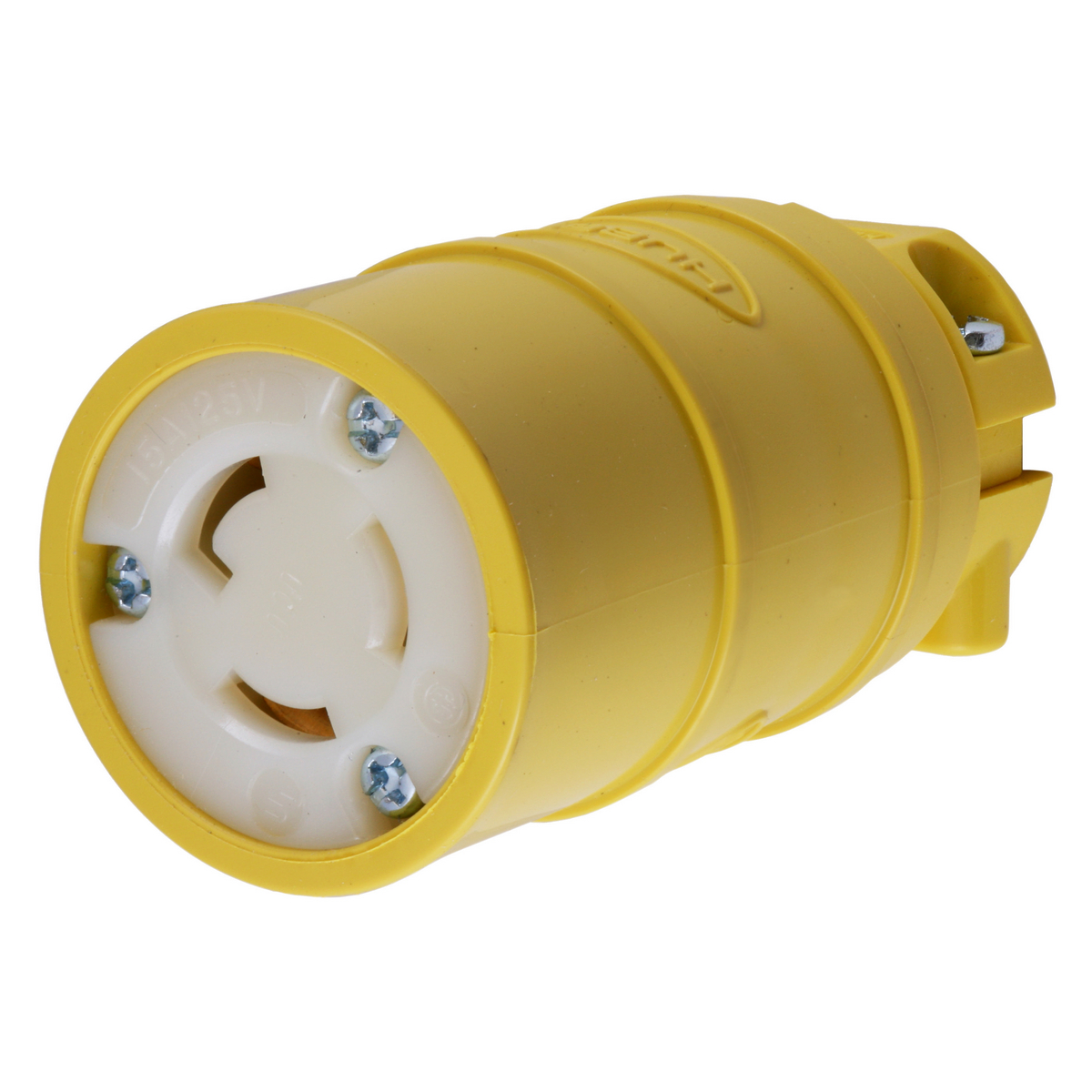

HUBBELL WIRING DEVICE-KELLEMS HBL2547 Connector, 15A, 125V, 2 Pole, 3 Wire Grounding, Dust Tight, Yellow
Item: AC8PWWModel: HBL2547Cross Ref: 3D060
7 In Stock
Ships within 2 days via
10.00% off
€55.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 15A |
| Antimicrobial | No |
| Cap Type | No Cap, Cover |
| Color | Yellow |
| Connection Orientation | Straight |
| Connectivity | Pressure Terminal Screws |
| Contact Material | Brass |
| Cord Dia. Range | 0.300"-.655" |
| Cord Size | 0.3" to 0.655" |
| Current Rating | 15A |
| Dielectric Strength | Withstands 2,000V minimum |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 0.655" |
| For Minimum Cable Diameter | 0.3" |
| Grade | Industrial, Commercial |
| Grounding | Grounded |
| Height | 4" |
| Housing Color | Yellow |
| Housing Material | Nylon |
| Insulation | Insulated Body |
| Ip Rating | IP20 |
| Length | 4" |
| Market | Industrial |
| Material | Elastomer |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 10 AWG |
| Midget Locking | No |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 18 AWG |
| Mounting | Cord Mounted |
| Nema Rating | NEMA L5-15R |
| Nema Receptacle Configuration | L5-15R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Length | 4" |
| Phase | 1 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2547.pdf |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| Temp. Rating | Maximum Continuous: 75 Deg. C; Minimum Continuous:-40 Deg. C w/o impact,-25 Deg. with impact. |
| Type | Non Shrouded |
| Voltage Rating | 125V AC |
| Width | 1 19/25" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 18 AWG to 10 AWG |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 4.47 |
| HS code | 8538908080 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Number Of Poles | Number Of Wires | Voltage Rating | Housing Color | Cap Type | Ip Rating | Current Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL4729CBK | 1 | 2 | 3 | - | - | - | - | - | €67.75 | |
 |
HBL2313BK | 1 | 2 | 3 | 125V AC | Black | No Cap, Cover | IP20 | 20A | €74.78 | |
 |
HBL2613BK | 1 | 2 | 3 | 125V AC | Black | No Cap, Cover | IP20 | 30A | €152.76 | |
 |
HBL2323BK | 1 | 2 | 3 | 250V AC | Black | No Cap, Cover | IP20 | 20A | €75.77 | |
 |
HBL2623BK | 1 | 2 | 3 | 250V AC | Black | No Cap, Cover | IP20 | 30A | €155.93 | |
 |
HBL2513BK | 3 | 4 | 5 | 120/208V AC | Black | No Cap, Cover | IP20 | 20A | €168.30 | |
 |
HBL2813BK | 3 | 4 | 5 | 120/208V AC | Black | No Cap, Cover | IP20 | 30A | €210.83 |
