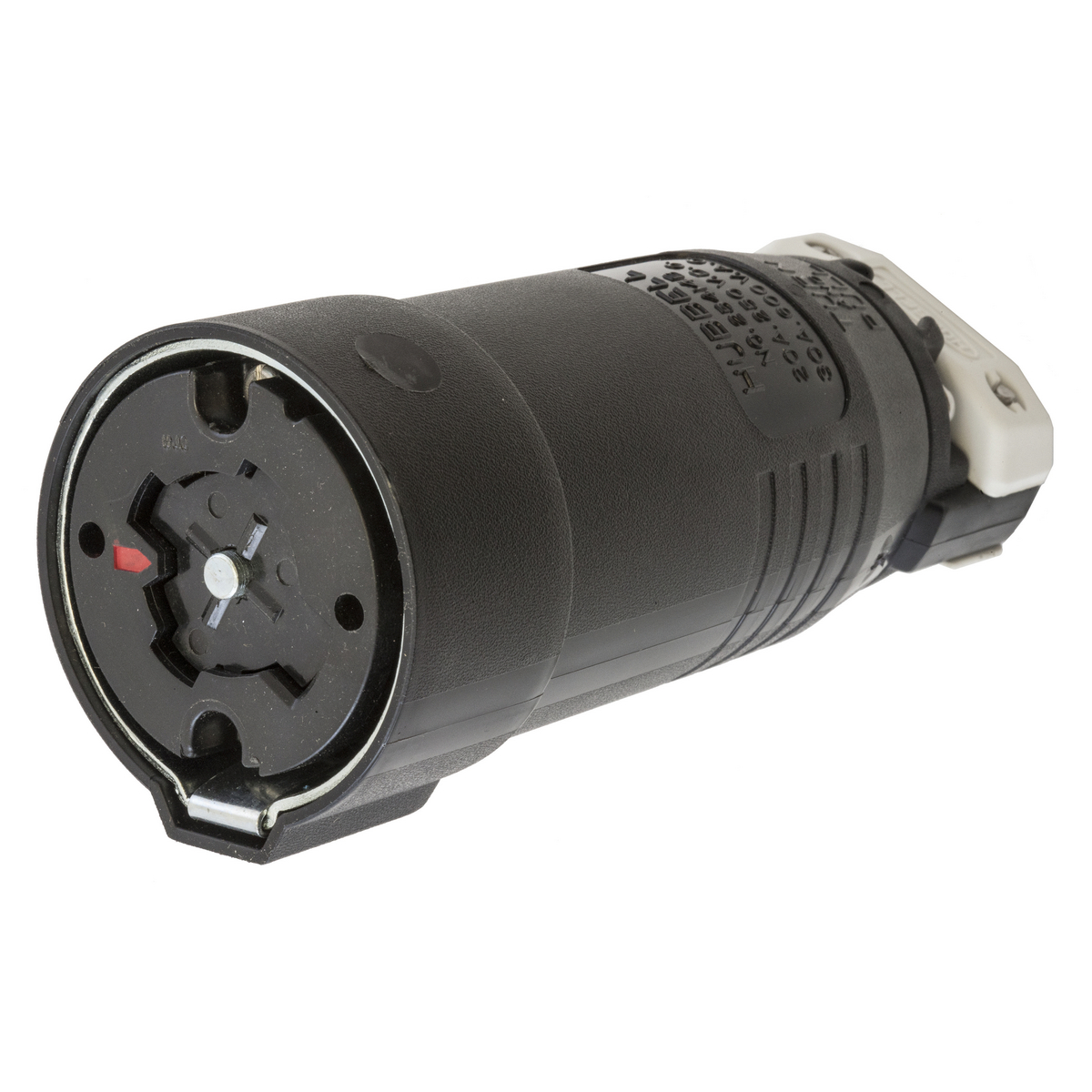

HUBBELL WIRING DEVICE-KELLEMS HBL25414B Female Connector, 30A, 600VAC, 20A, 250VDC, 4-Pole, 5-Wire Grounding
Item: CE6RYRModel: HBL25414BCross Ref: 3D058
7 In Stock
Ships within 2 days via
5.00% off
€609.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 20/30A |
| Cable Range | 0.7" to 1.2" |
| Cap Type | No Cap, Cover |
| Color | Black, White |
| Connection Orientation | Straight |
| Connectivity | Pressure Terminal Screws |
| Contact Material | Bronze |
| Cord Dia. Range | 0.70"-1.20" |
| Dielectric Strength | Withstands 2,000V minimum |
| For Environment | Dry |
| For Location | Indoor |
| For Max. Cable Dia. | 1.2" |
| For Min. Cable Dia. | 0.7" |
| Grounding | Grounded |
| Height | 2.69" |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Insulation | Insulated Body |
| Ip Rating | IP30 |
| Length | 6.78" |
| Market | Industrial |
| Material | Nylon |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 6 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°F |
| Min. Wire Size | 10 AWG |
| Mounting | Cord Mounted |
| Nema Receptacle Configuration | Non NEMA |
| No. Of Poles | 4 |
| No. Of Wires | 5 |
| Outside Dia. | 2.688" |
| Overall Length | 6.78" |
| Phase | 3 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl25414b.pdf |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 250V DC/600V AC |
| Width | 2.69" |
| Wire Connection Type | Screw Terminal |
| Wire Size | #10 AWG to #6 AWG |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.74 |
| Ship height (cm) | 6.83 |
| Ship length (cm) | 17.22 |
| Ship width (cm) | 6.83 |
| Country of Origin | US |
