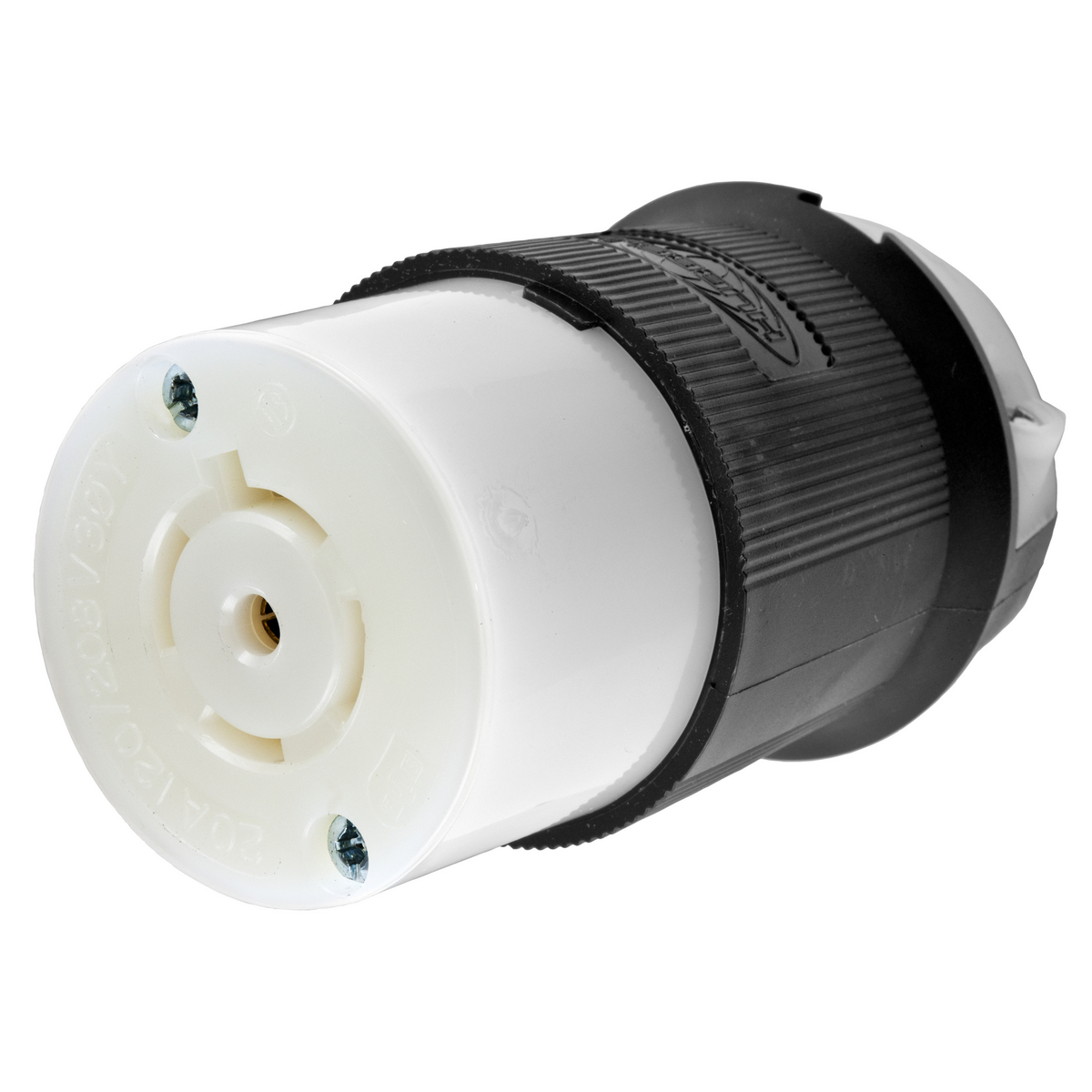

HUBBELL WIRING DEVICE-KELLEMS HBL2513 Female Connector, 20A, 3-Phase, Wye 120/208VAC, 4-Pole, 5-Wire Grounding
Item: AE7LHLModel: HBL2513Cross Ref: 5Z906
7 In Stock
Ships within 2 days via
10.00% off
€150.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 20A |
| Antimicrobial | No |
| Cable Range | 0.35" to 1.15" |
| Cap Type | No Cap, Cover |
| Color | Black, White |
| Connection Orientation | Straight |
| Connectivity | Screw Terminals |
| Contact Material | Brass |
| Cord Dia. Range | 0.350"-1.150" |
| Cord Size | 0.35" to 1.15" |
| Current Rating | 20A |
| Dielectric Strength | Withstands 2,000V minimum |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 1.15" |
| For Minimum Cable Diameter | 0.35" |
| Grade | Industrial, Commercial |
| Grounding | Grounded |
| Height | 3.86" |
| Horsepower Rating | 2 hp |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Insulation | Insulated Body |
| Ip Rating | IP20 |
| Length | 2.33" |
| Market | Industrial |
| Material | Nylon |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 8 AWG |
| Midget Locking | No |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 16 AWG |
| Mounting | Cord Mounted |
| Nema Rating | NEMA L21-20R |
| Nema Receptacle Configuration | L21-20R |
| Number Of Poles | 4 |
| Number Of Wires | 5 |
| Outside Diameter | 2.33" |
| Overall Length | 2.33" |
| Phase | 3 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2513.pdf |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 120/208V AC |
| Width | 2.33" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 16 AWG to 8 AWG |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 9.8 |
| Ship length (cm) | 5.92 |
| Ship width (cm) | 5.92 |
| HS code | 8536694020 |
| Country of Origin | US |
Product Details:
Hubbell Wiring Device-Kellems HBL2513 female connector prevents accidental disconnection of wires due to vibrations or other movements. This female connector has nylon housing with brass contacts for durability and corrosion resistance. This Twist-Lock device benefits marine and industrial applications where secure connections are the utmost priority.
Features:
- Hubell locking connector has a superior cord grip design to protect terminations from excess strain.
- It features a clear, funnel-shaped wire entry for ease of termination.
- This Insulgrip connector has a dust shield to protect the wiring chamber from air contaminants.
- It also consists of a roomy wiring chamber for quick and easy installation.
- This three-phase female connector features high-impact nylon construction.
Compatible Accessories:
/p/hubbell-kellems/inlet-flanged-receptacles: These inlets have four corner latches to secure the receptacle.Standards and Approvals:
- UL
- CSA
Frequently Asked Questions:
Q. What are the power ratings of this connector's plug and receptacles?
A.
- Current rating - 20A
- Voltage rating - 120 / 208VAC
Q. How can I install this locking connector?
A.
- Select an appropriate size conductor and round cord for connections.
- Determine the correct position of cord clamp inserts based on the diameter of the cord.
- Slide the cover onto the cord without pushing the dust cover.
- Remove the insulation from the cord and loosen the terminal screws.
- Insert the conductors fully into the terminal and tighten its screws.
- Slide the cover down over the body assembly and tighten the assembly screws.
Documentation:
Product Variants
| Product | Model | Phase | Number Of Poles | Number Of Wires | Voltage Rating | Housing Color | Cap Type | Ip Rating | Current Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL4729CBK | 1 | 2 | 3 | - | - | - | - | - | €67.75 | |
 |
HBL2313BK | 1 | 2 | 3 | 125V AC | Black | No Cap, Cover | IP20 | 20A | €74.78 | |
 |
HBL2613BK | 1 | 2 | 3 | 125V AC | Black | No Cap, Cover | IP20 | 30A | €152.76 | |
 |
HBL2323BK | 1 | 2 | 3 | 250V AC | Black | No Cap, Cover | IP20 | 20A | €75.77 | |
 |
HBL2623BK | 1 | 2 | 3 | 250V AC | Black | No Cap, Cover | IP20 | 30A | €155.93 | |
 |
HBL2513BK | 3 | 4 | 5 | 120/208V AC | Black | No Cap, Cover | IP20 | 20A | €168.30 | |
 |
HBL2813BK | 3 | 4 | 5 | 120/208V AC | Black | No Cap, Cover | IP20 | 30A | €210.83 |
