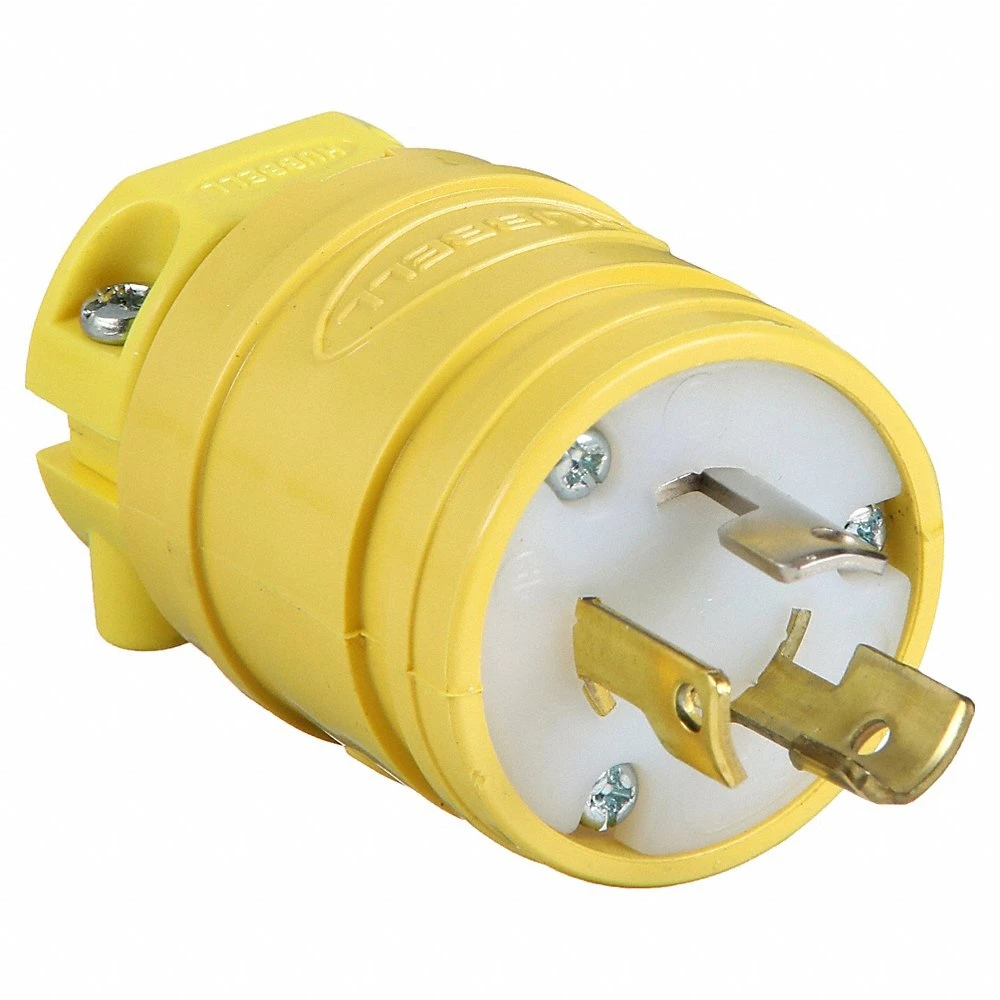

HUBBELL WIRING DEVICE-KELLEMS HBL2447 Plug, 15A, 125VAC, 2-Pole, 3-Wire Grounding, Yellow
Item: AC8PWQModel: HBL2447Cross Ref: 3D054
7 In Stock
Ships within 2 days via
5.00% off
€35.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Amps | 15A |
| Anti Microbial | No |
| Blade Material | Brass |
| Body Length | 2.19" |
| Color | Yellow |
| Connection Orientation | Straight |
| Connectivity | Pressure Terminal Screws |
| Cord Dia. Range | 0.300"-.655" |
| Cord Size | 0.3" to 0.655" |
| Dielectric Strength | Withstands 2,000V minimum |
| For Environment | Dry |
| For Location | Indoor |
| For Max. Cable Dia. | 0.655" |
| For Min. Cable Dia. | 0.3" |
| Grade | Grade Industrial |
| Grounding | Grounded |
| Height | 1 14/25" |
| Housing Color | Yellow |
| Housing Material | Elastomer |
| Hp | 1/2 hp |
| Ip Rating | IP20 |
| Length | 2.19" |
| Market | Industrial |
| Material | Elastomer |
| Max. Hp | 1/2 hp |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Mounting | Cord Mounted |
| Nema Plug Configuration | L5-15P |
| Nema Rating | NEMA L5-15P |
| No. Of Blades | 3 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Outside Dia. | 1.55" |
| Overall Length | 2.19" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2447.pdf |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Shrouded | Yes |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | HB |
| Voltage | 125V AC |
| Wattage | 1875 W |
| Watts | 1875 W |
| Width | 1 14/25" |
| Wire Connection Type | Screw Terminal |
| Wire Size | 18 AWG to 10 AWG |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.94 |
| Ship length (cm) | 5.56 |
| Ship width (cm) | 3.94 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
- Special Features: Moisture, Dust and Weather Resistant
Documentation:
Product Variants
| Product | Model | No. Of Poles | Phase | Color | Amps | Material | Wire Size | Voltage | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL4720CBK | 2 | 1 | Black | 15A | Nylon | 18 AWG to 10 AWG | 125V AC | Non Shrouded | €42.38 | |
 |
HBL2311BK | 2 | 1 | Black | 20A | Nylon | 16 AWG to 8 AWG | 125V AC | Non Shrouded | €49.30 | |
 |
HBL2611BK | 2 | 1 | Black | 30A | Nylon | 16 AWG to 8 AWG | 125V AC | Non Shrouded | €75.97 | |
 |
HBL2321BK | 2 | 1 | Black | 20A | Nylon | 16 AWG to 8 AWG | 250V AC | Non Shrouded | €45.37 | |
 |
HBL2621BK | 2 | 1 | Black | 30A | Nylon | 16 AWG to 8 AWG | 250V AC | Non Shrouded | €83.47 | |
 |
HBL2511BK | 4 | 3 | Black | 20A | Nylon | 16 AWG to 8 AWG | 120/208V AC | Non Shrouded | €90.22 | |
 |
HBL2811BK | 4 | 3 | Black | 30A | Nylon | 16 AWG to 8 AWG | 120/208V AC | Non Shrouded | €112.16 |
