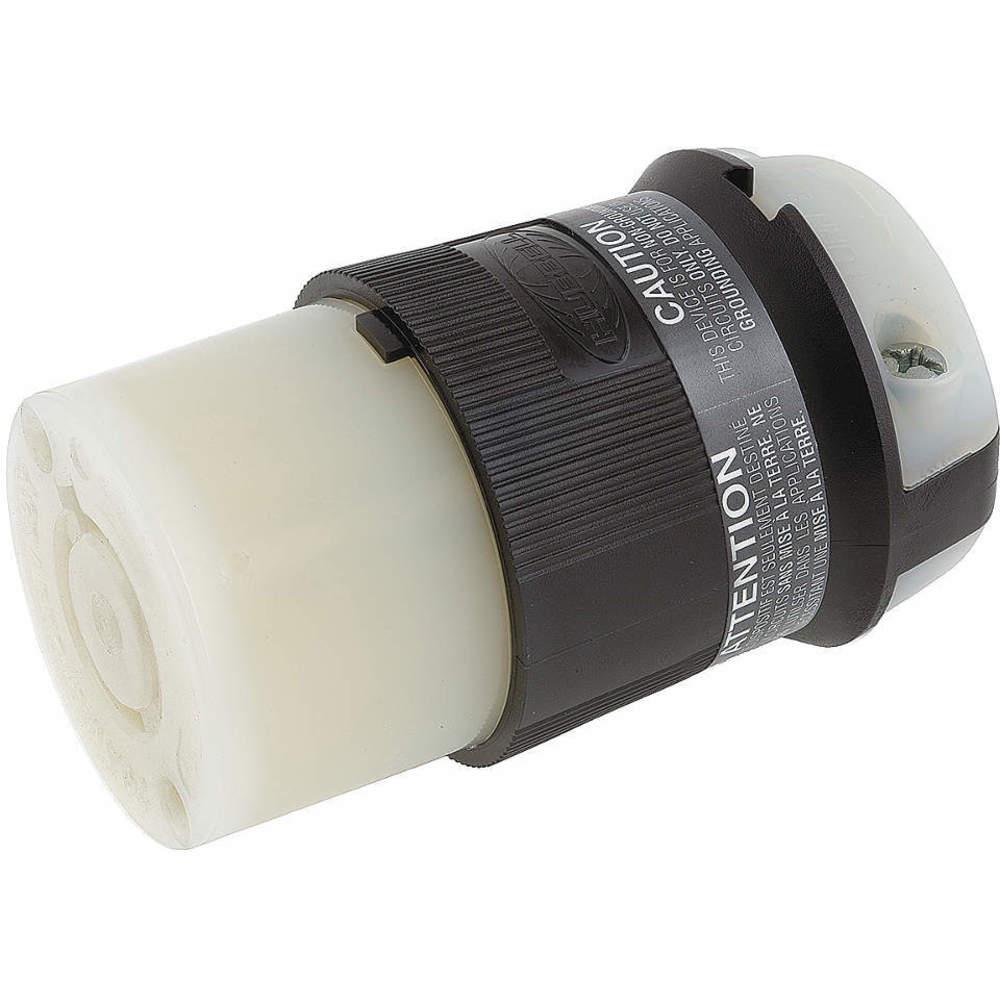

HUBBELL WIRING DEVICE-KELLEMS HBL2443 Female Connector, 20A, 3-Phase, Wye 120/208VAC, 4-Pole, 4-Wire Non-Grounding
Item: AE3CKMModel: HBL2443Cross Ref: 5C972
7 In Stock
Ships within 2 days via
10.00% off
€98.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 20A |
| Antimicrobial | No |
| Cable Range | 0.35" to 1.15" |
| Cap Type | No Cap, Cover |
| Color | Black, White |
| Connection Orientation | Straight |
| Connectivity | Pressure Terminal Screws |
| Contact Material | Brass |
| Cord Dia. Range | 0.350"-1.150" |
| Cord Size | 0.35" to 1.15" |
| Current Rating | 20A |
| Dielectric Strength | Withstands 2,000V minimum |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 1.15" |
| For Minimum Cable Diameter | 0.35" |
| Grade | Industrial, Commercial |
| Grounding | Non Grounded |
| Height | 3.86" |
| Horsepower Rating | 2 hp |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Insulation | Insulated Body |
| Ip Rating | IP20 |
| Market | Industrial |
| Material | Nylon |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 8 AWG |
| Midget Locking | No |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 16 AWG |
| Mounting | Cord Mounted |
| Nema Rating | NEMA l18-20R |
| Nema Receptacle Configuration | L18-20R |
| Number Of Poles | 4 |
| Number Of Wires | 4 |
| Outside Diameter | 2.33" |
| Overall Length | 2.33" |
| Phase | 3 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2443.pdf |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 120/208V AC |
| Width | 2.33" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 16 AWG to 8 AWG |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 9.8 |
| Ship length (cm) | 5.92 |
| Ship width (cm) | 5.92 |
| HS code | 8536694020 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Number Of Poles | Number Of Wires | Voltage Rating | Housing Color | Cap Type | Ip Rating | Current Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL4729CBK | 1 | 2 | 3 | - | - | - | - | - | €67.75 | |
 |
HBL2313BK | 1 | 2 | 3 | 125V AC | Black | No Cap, Cover | IP20 | 20A | €74.78 | |
 |
HBL2613BK | 1 | 2 | 3 | 125V AC | Black | No Cap, Cover | IP20 | 30A | €152.76 | |
 |
HBL2323BK | 1 | 2 | 3 | 250V AC | Black | No Cap, Cover | IP20 | 20A | €75.77 | |
 |
HBL2623BK | 1 | 2 | 3 | 250V AC | Black | No Cap, Cover | IP20 | 30A | €155.93 | |
 |
HBL2513BK | 3 | 4 | 5 | 120/208V AC | Black | No Cap, Cover | IP20 | 20A | €168.30 | |
 |
HBL2813BK | 3 | 4 | 5 | 120/208V AC | Black | No Cap, Cover | IP20 | 30A | €210.83 |
