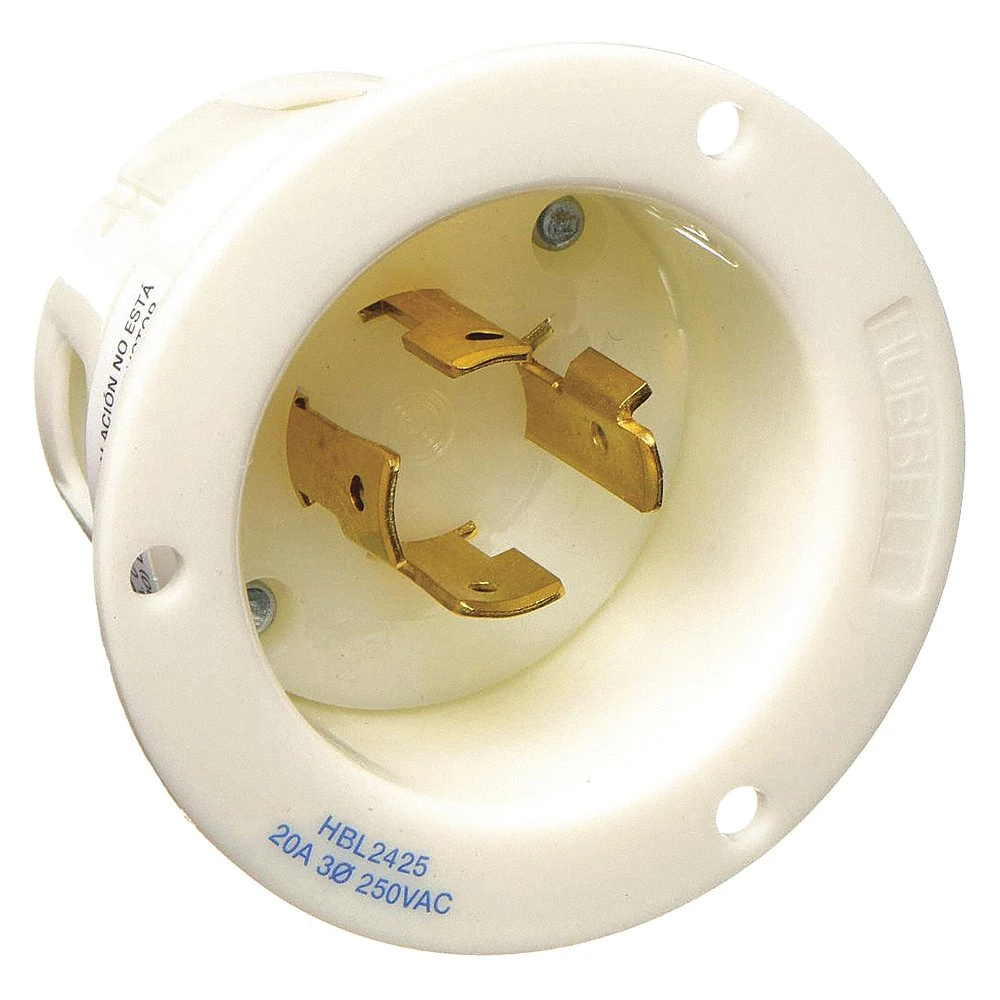

HUBBELL WIRING DEVICE-KELLEMS HBL2425 Flanged Inlet, 20A, 3-Phase, 250VAC, 3-Pole, 4-Wire Grounding, White
Item: AC8QKBModel: HBL2425Cross Ref: 3D566
7 In Stock
Ships within 2 days via
10.00% off
€73.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flanged Inlet |
| Amps | 20A |
| Blade Material | Brass |
| Color | White |
| Connection Orientation | Straight |
| Connectivity | Screw Terminals |
| Current Rating | 20A |
| Dielectric Strength | Withstands 2,000V minimum |
| Face Diameter | 2.23" |
| Face Plate Width | 0.093" |
| Features | Accepts Slotted, Phillips, And Robertson Head Drivers |
| Flange Diameter | 3.06" |
| Flange Material | Steel |
| Flange Type | Flanged |
| For Environment | Dry |
| For Location | Indoor |
| Grade | General Use |
| Grounding | Grounded |
| Height | 2.27" |
| Horsepower Rating | 3 hp |
| Housing Color | White |
| Housing Material | Nylon |
| Includes | Mounting Screws |
| Includes Mounting Hardware | Yes |
| Insulation | Insulated Body |
| Ip Rating | IP20 |
| Length | 3.06" |
| Market | Industrial |
| Material | Nylon |
| Max. Hp | 3 hp |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 16 AWG |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Enclosure Rating | NEMA 4X, NEMA 12 |
| Nema Plug Configuration | L15-20P |
| Nema Rating | NEMA L15-20P |
| Number Of Blades | 4 |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Overall Depth | 2.27" |
| Phase | 3 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2425.pdf |
| Shrouded | No |
| Temp. Rating | Maximum Continuous: 75 Deg. C; Minimum Continuous:-40 Deg. C w/o impact,-25 Deg. with impact. |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 250V AC |
| Wattage | 5000 W |
| Width | 3.06" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 16 AWG to 8 AWG |
| Wire Type | Standard |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 5.77 |
| Ship length (cm) | 7.77 |
| Ship width (cm) | 7.77 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
- Special Features: With Cover
Documentation:
Product Variants
| Product | Model | Number Of Poles | Phase | Number Of Wires | Current Rating | Voltage Rating | Shrouded | Ip Rating | Flange Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2315 | 2 | 1 | 3 | 20A | 125V AC | No | IP44 | Steel | €62.97 | |
 |

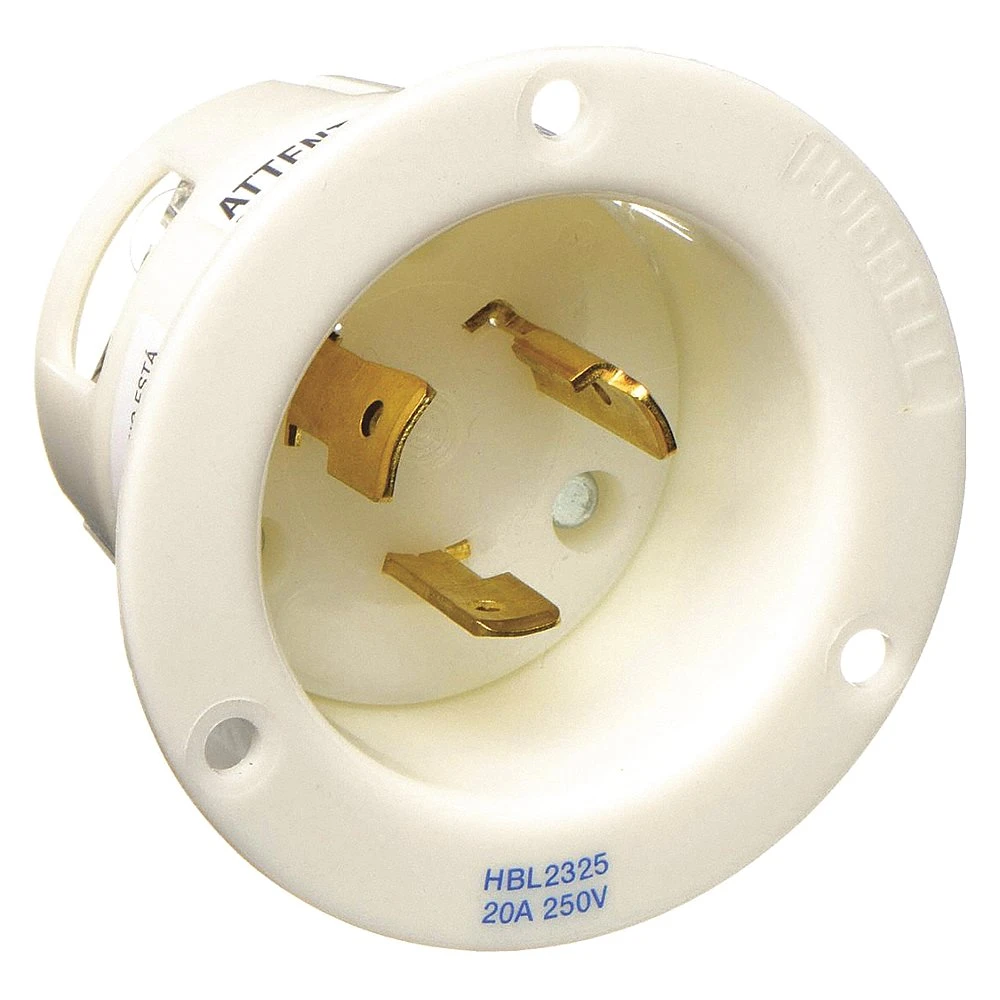

HBL2325 | 2 | 1 | 3 | 20A | 250V AC | No | IP44 | Steel | €59.40 | |
 |

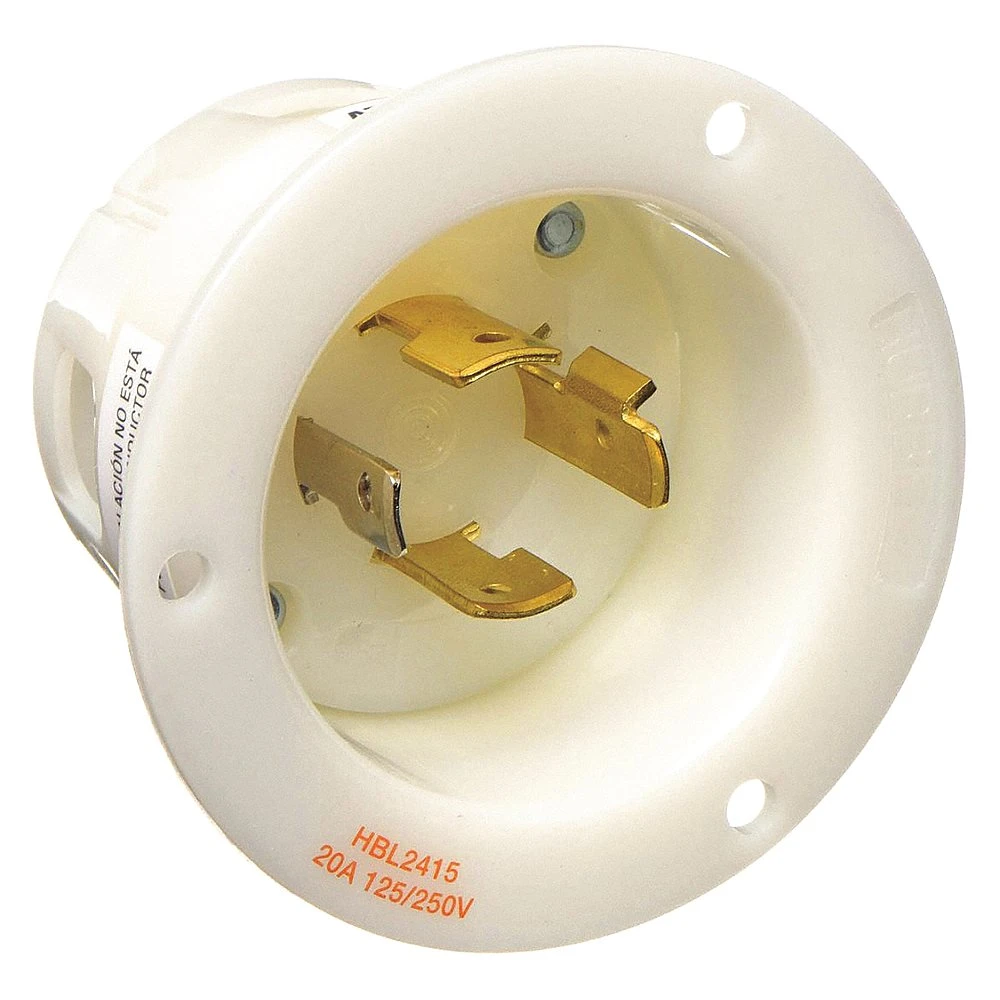

HBL2415 | 3 | 1 | 4 | 20A | 125/250V AC | No | IP44 | Steel | €84.95 | |
 |

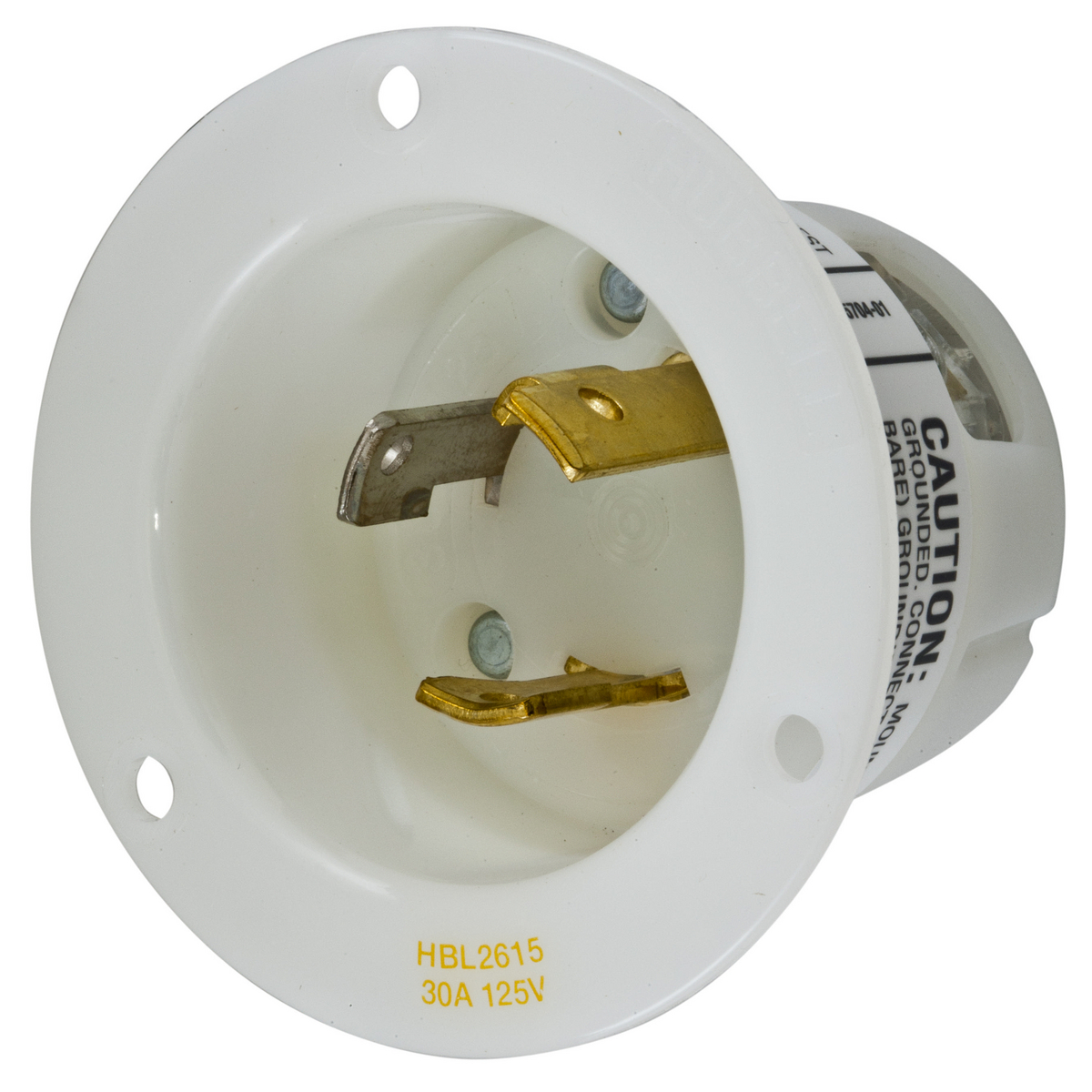

HBL2615 | 2 | 1 | 3 | 30A | 125V AC | No | IP20 | Nylon | €106.19 | |
 |

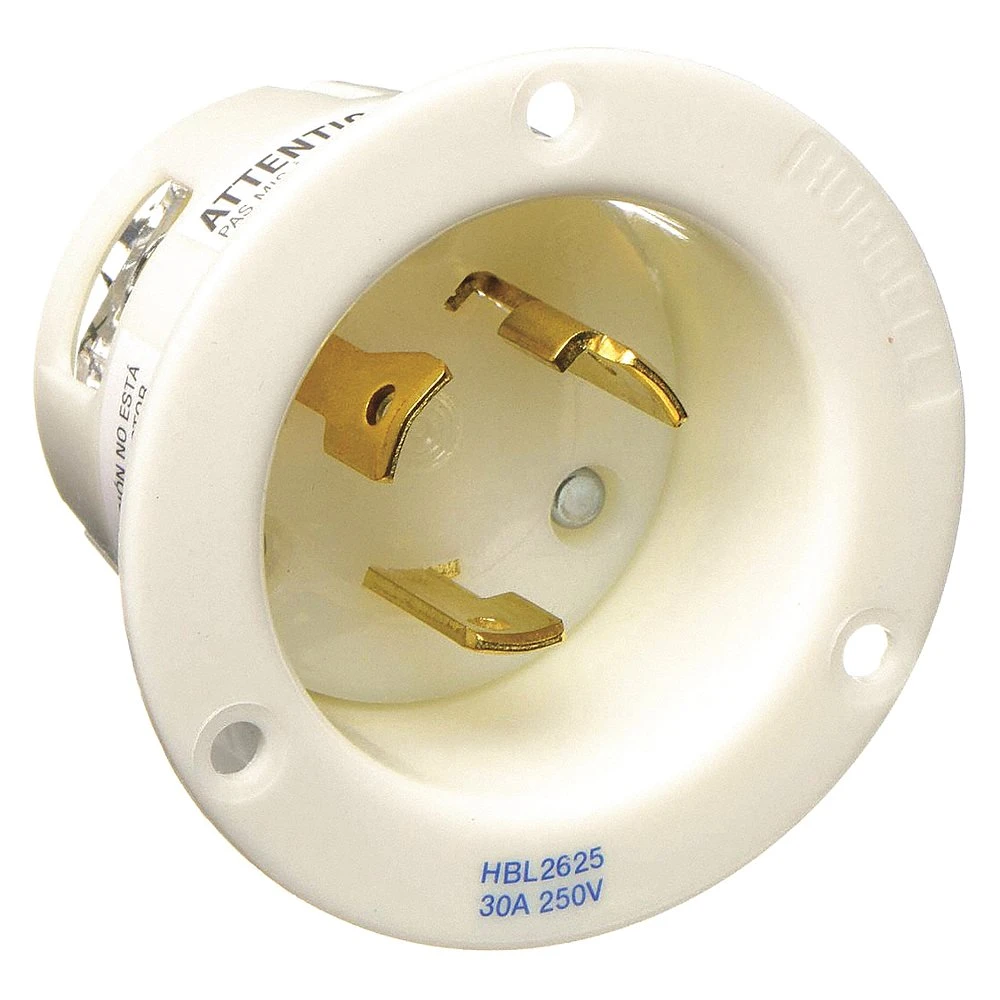

HBL2625 | 2 | 1 | 3 | 30A | 250V AC | No | IP20 | Nylon | €104.80 | |
 |

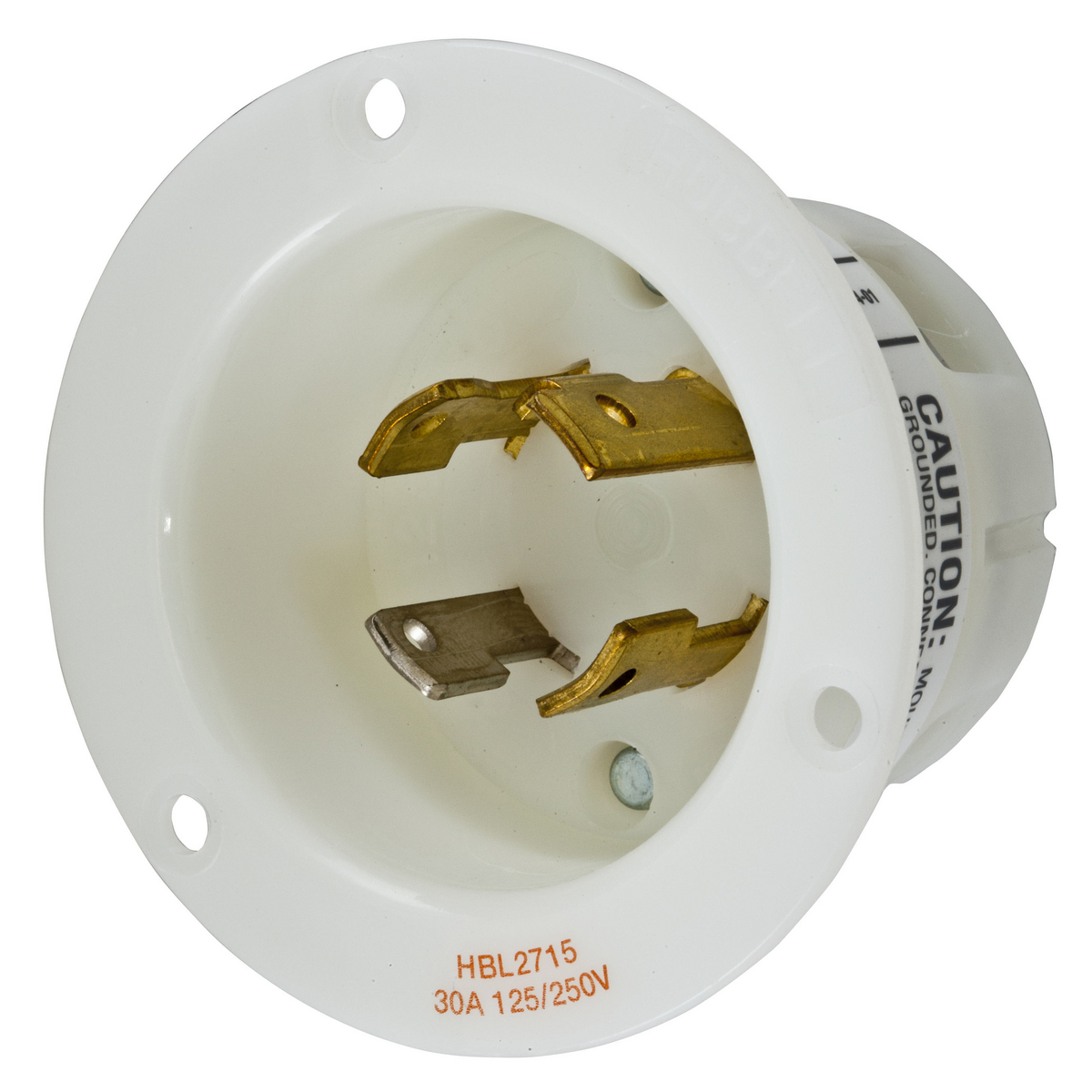

HBL2715 | 3 | 1 | 4 | 30A | 125/250V AC | No | IP20 | Nylon | €121.70 | |
 |

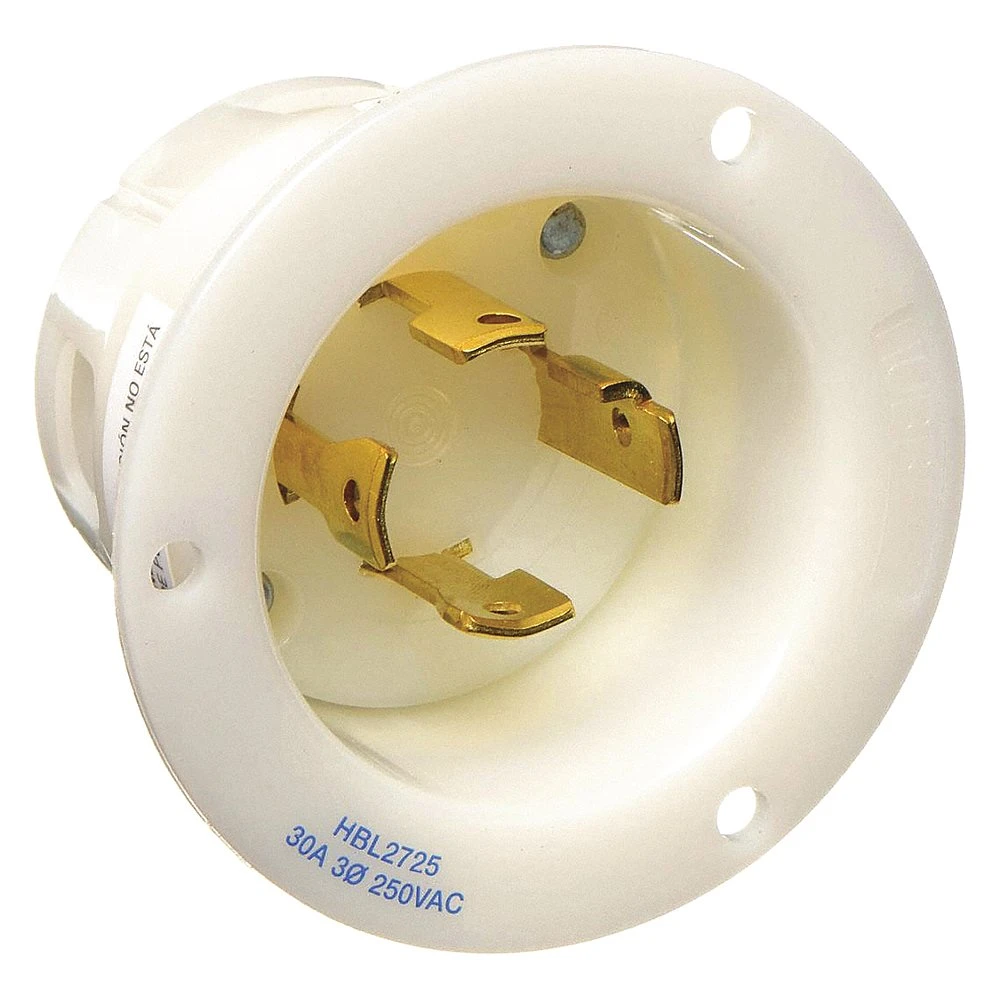

HBL2725 | 3 | 3 | 4 | 30A | 250V AC | Yes | IP20 | Nylon | €140.51 |
